Tektronix TG8000 User Manual

AWVG7 Analog Wideband Video Generator module
To select an ou
tput signal on the AWVG7 module
To output a signal from the AWVG7 module, you need to select a signal format
and output signal as described below.
To select the
signal format
Perform the following steps to select the signal format:

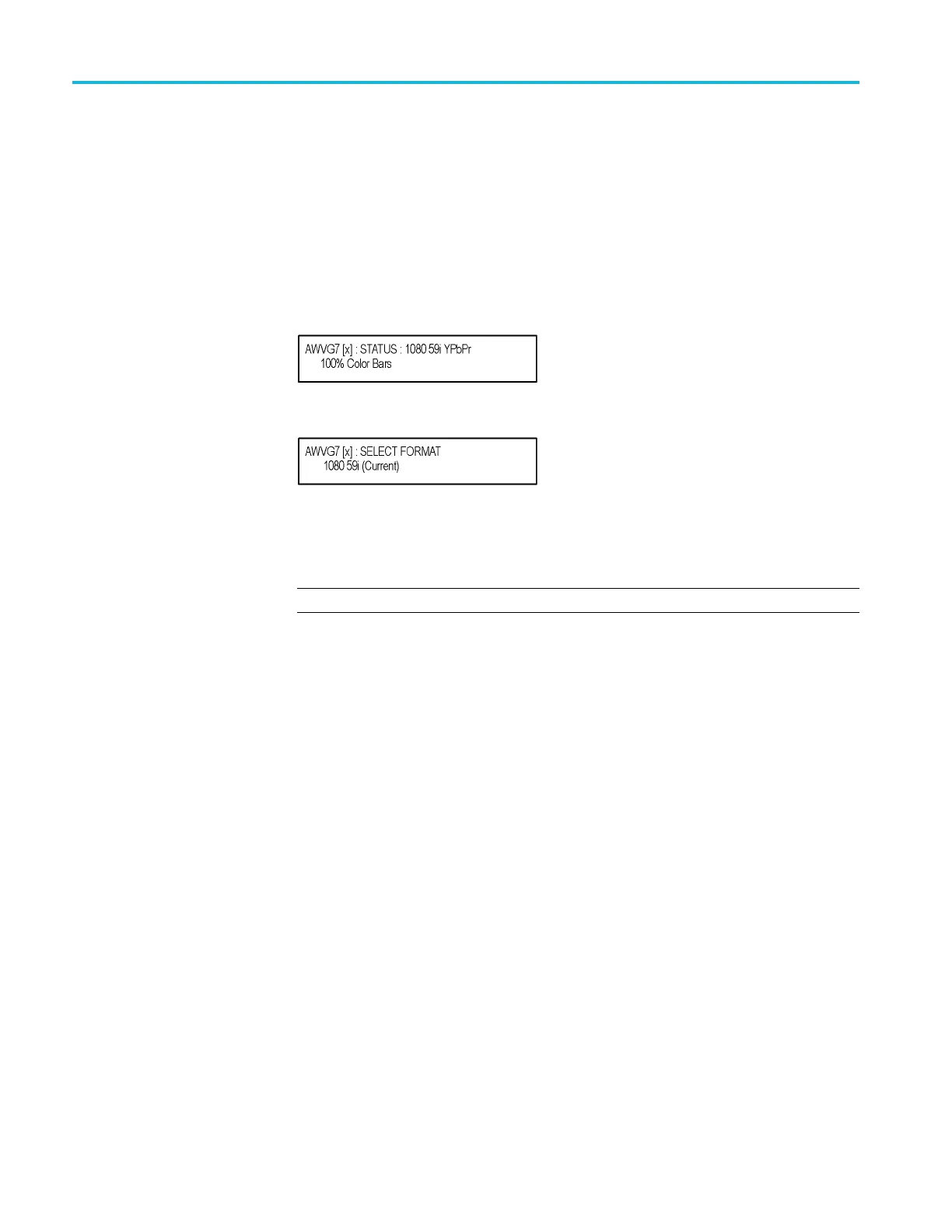

1. If the AWVG7 module menu is not displayed, press the front-panel MODULE
button until the AWVG7 module main menu appears as shown below.
2. Press the
FORMAT button. The menu display changes as follows:
3. Use the left (◄)orright(►) arrow button, or press the FORMAT button
repeatedly, to select one of the s ignal formats, a nd then press the ENTER
button
to confirm the selection.
NOTE. When you c hange the signal format, synchronization shock occurs.
4. If yo
u change the signal format while a test signal is being output, the
instrument starts loading a ll of the signal sets for the selected format and
displays the message "Now Loading...". When you see the message, "Done
(Press BACK)", press the BACK button.
3–50 TG8000 Multiformat Test Signal Generator User Manual
