HDLG7 HD Dual Link Video Generator module
HDLG7 module m
ain menu
Use the HDLG7 module main menu to perform the following tasks:
Set the sampling structure/pixel depth.
Select the signal of the alpha channel.
Set the timing offset between the Link A and Link B outputs.
Generate a
moving picture.
Use the up (▲)ordown(▼) arrow button to scroll through the main menu. The
following figure shows the HDLG7 module main menu.

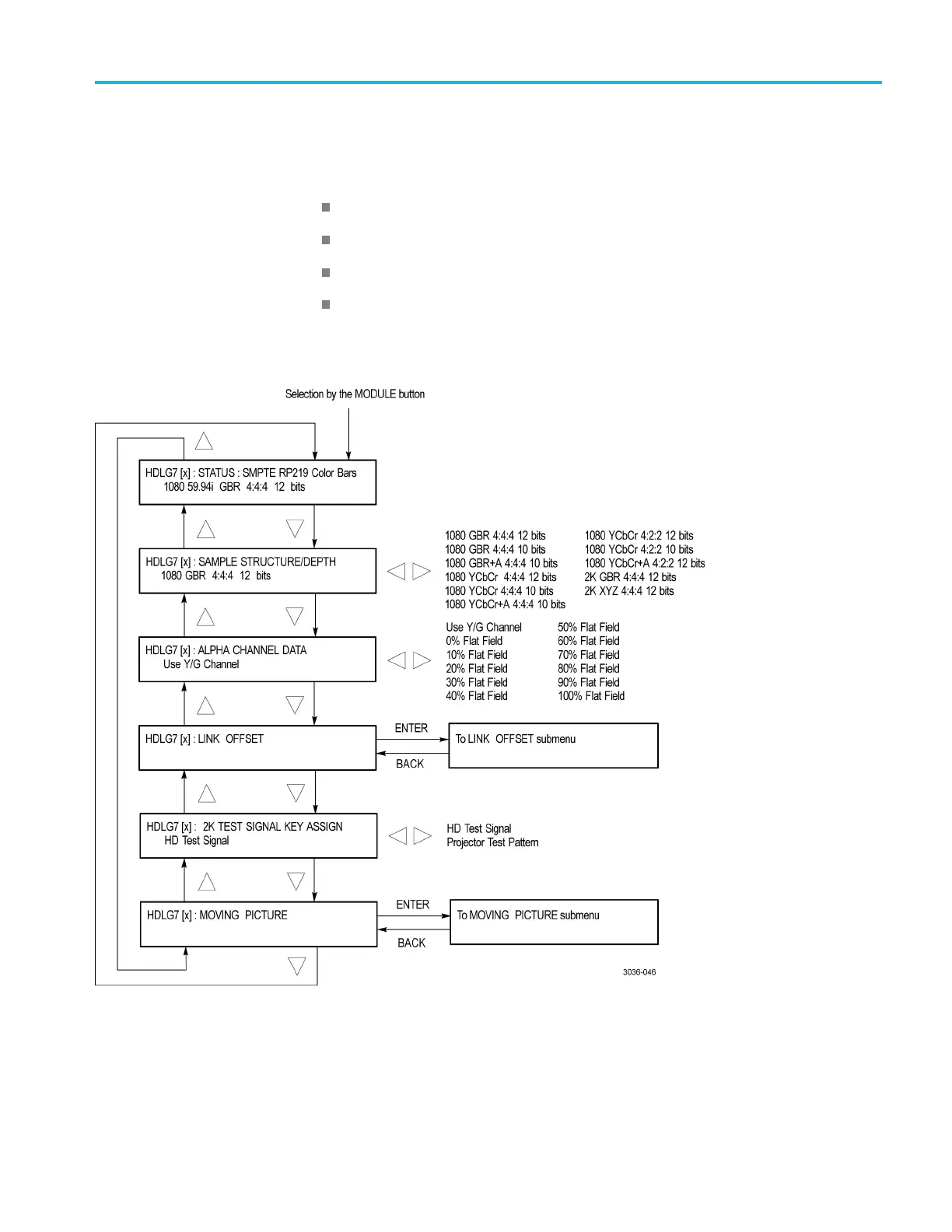

Figure 3-99: HDLG7 module main menu
TG8000 Multiformat Test Signal Generator User Manual 3–223
