Getting started
To remove a module
Toremoveamodu
le from the mainframe, p erform the following procedure:
CAUTION. To facilitate module removal, attach terminations or BNC cables to the
module connectors. The connector may be damaged if too much forc e is applied
to it during module removal.
1. Unplug the power cord from the power connector on the m ainframe rear panel.
2. Attach 75 Ω terminations or BNC cables to the BNC connectors on the
module to be removed. Module removal becomes easier if the terminations or
cables are attached to the connectors a t the left and right ends.
3. Use a screwdriver with a #1 Phillips tip to loosen the two screws securing
the module to the mainframe.
CAUTION. Be careful not to damage the parts and cables inside of the module
when you remove the module from the mainframe.
4. Pull the module slowly toward you while supporting the terminations or BNC
cables attached to the connectors. (See Figure 1-6.)

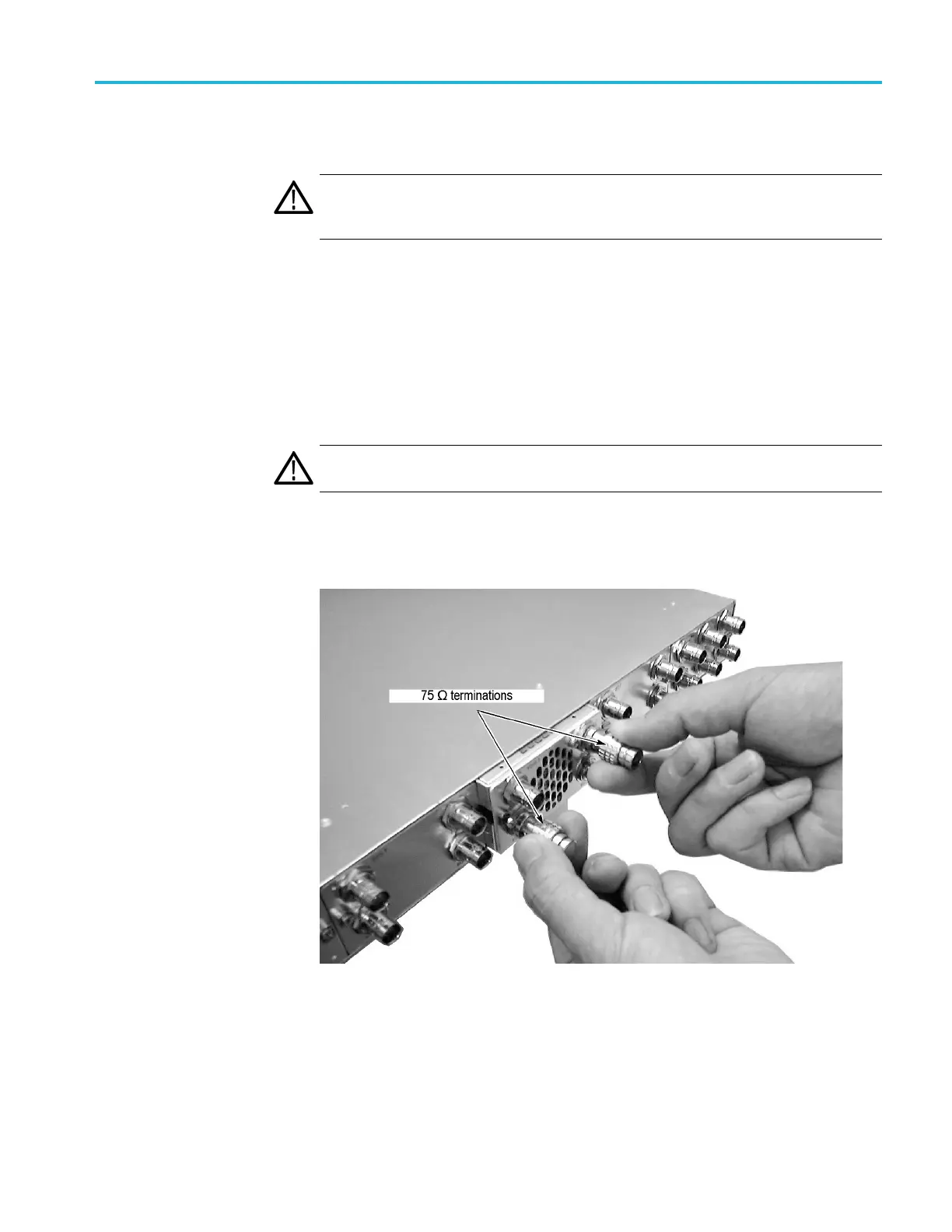

Figure 1 -6: Removing a module
TG8000 Multiformat Test Signal Generator User Manual 1–15
