Tektronix TG8000 User Manual

AG7 Audio Generator module
AG7 module
AUDIO TIMING s
ubmenu
Use this menu to
adjust the timing offset of the audio signal outputs relative to the
internal reference signal (frame reset signal).
NOTE. The AUDIO TIMING delay can be adjusted only if a valid subframe pulse
is present and the AUDIO-VIDEO SYNC selection in the AG7 main menu is set
to Frame Reset 1 or Frame Rese t 2.

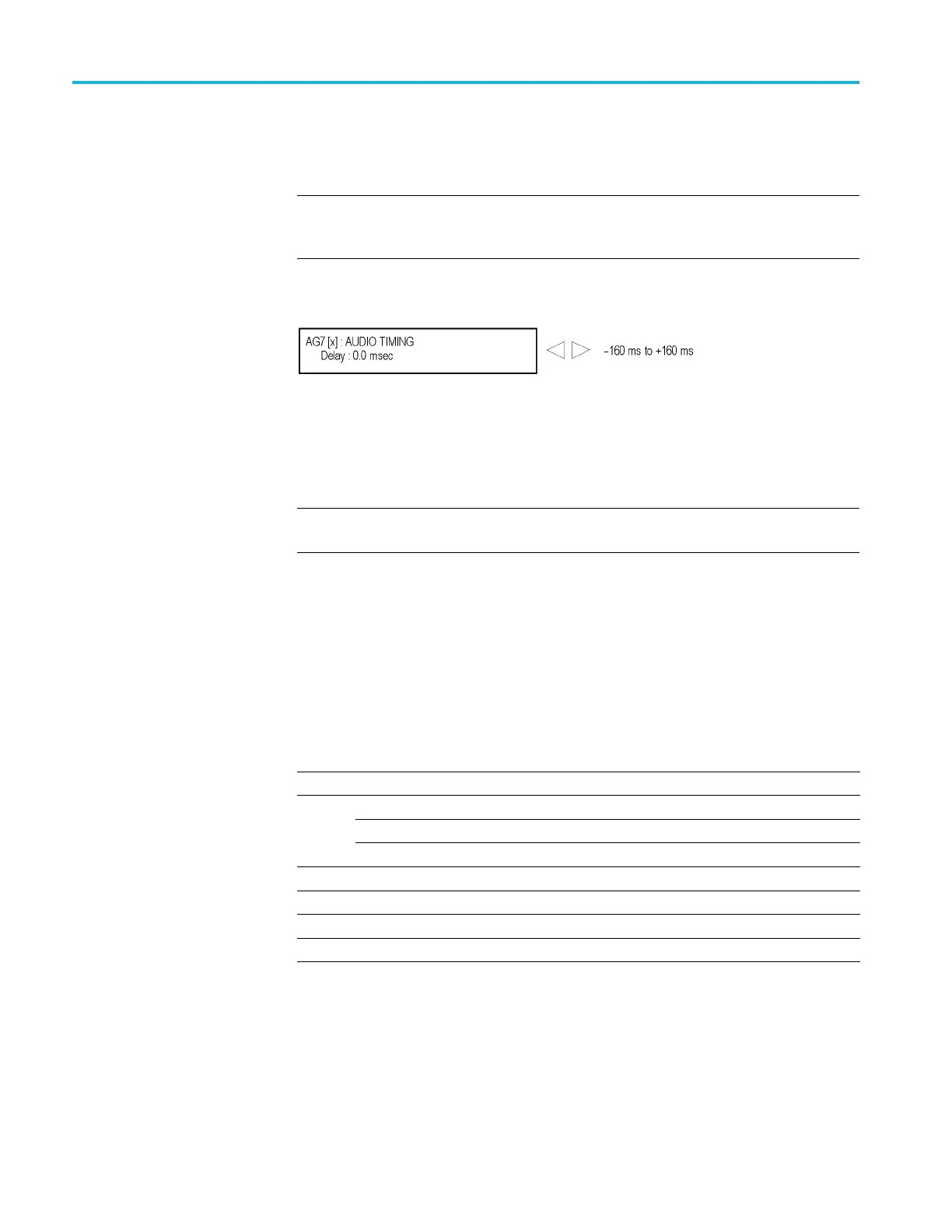

The following figure shows the AUDIO TIMING submenu.
Figure 3-
3: AG7 module AUDIO TIMING submenu
Use the le
ft (◄)orright(►) arrow button to change the value. You can set the
value from -160 ms to +160 ms in 1 ms steps. A minus timing value is set as
Delay andplusissetasAdvance.
NOTE. You can reset the timing offset to zero by pressing the left (◄)orright(►)
arrow buttons simultaneously.
AG7 module factory default settings
The f
ollowing table shows the factory default settings for the AG7 module.
These settings are recalled when you select Factory Default from the PRESET :
RECALL menu item in the mainframe main menu.
Table 3-1: AG7 module factory default settings
Menu item name Settings
CHANNEL 1 to CHANNEL 8
Frequency 1000 Hz
Amplitude
-20.0 dBFS
Audio Click OFF
RESOLUTION
20 bits
AUDIO-VIDEO SYNC
Free Run
AUDIO TIM ING
Delay or Advance 0.0 msec
3–6 TG8000 Multiformat Test Signal Generator User Manual
