Tektronix TG8000 User Manual

HDVG7 HDTV Digital Video Generator module
To select an ou
tput signal on the HDVG7 module
To output a signal from the HDVG7 module, you need to select a signal format
and output signal as described below.
To select the
signal format
Perform the following steps to select the signal format:

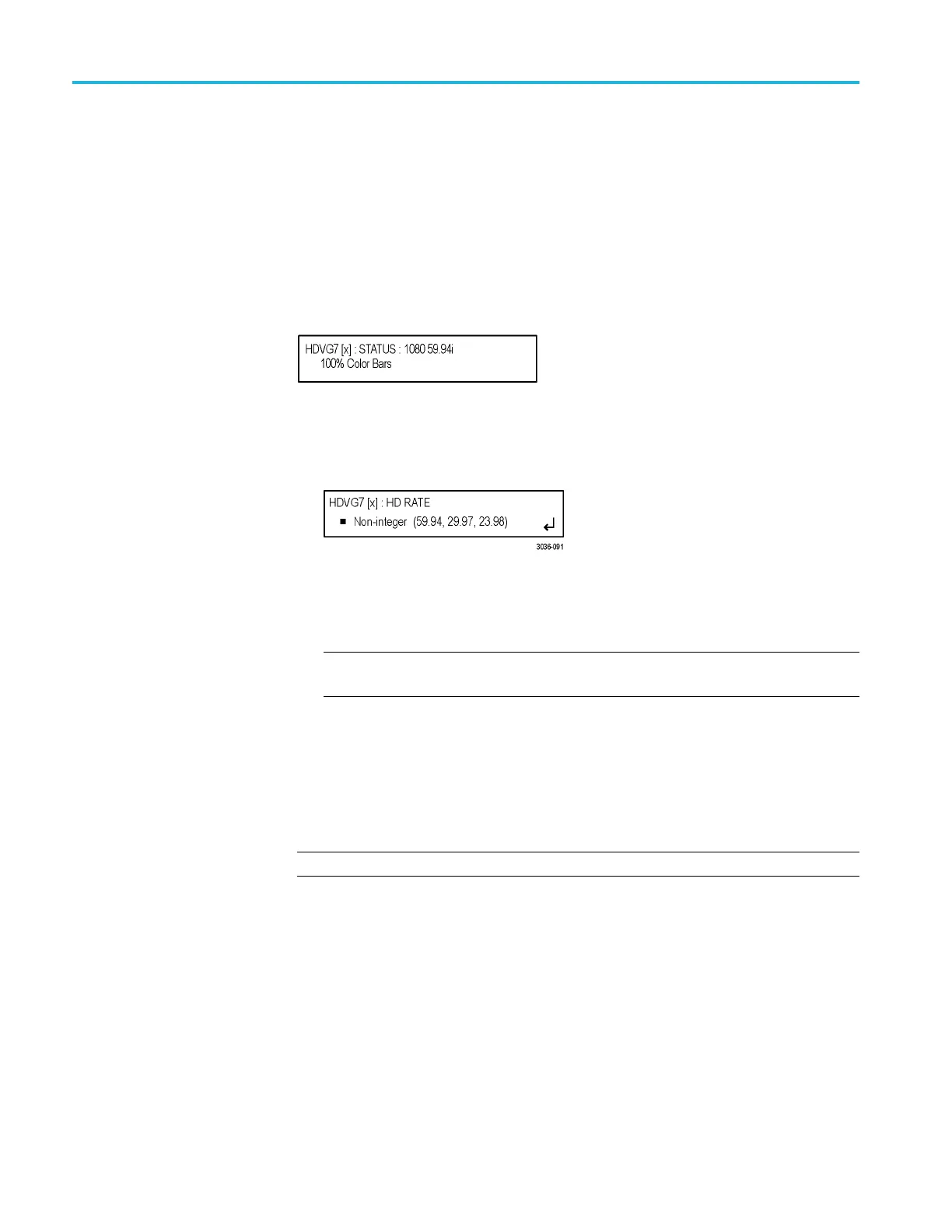

1. Press the front-panel MODULE button until the HDVG7 module main menu
appears as shown below.
2. Option BK
only: Set the HD trilevel sync rate:
a. Use the up (▲)ordown(▼) arrow button to scroll through the main
menu unt
il HD RATE is displayed as shown below.
b. Use the left (◄)orright(►)arrowbuttontoselectNon-integer (59.94,
29.97, 23.98) or Integer (60, 5 0, 30, 25, 24), and then press the ENTER
buttontoconfirm the selection.
NOTE. The HD RATE setting affects which signal formats can be selected
for output (integer or non-integer).
3. Press the FORMAT button to access the SELECT FORMAT submenu.
4. Use the left (◄)orright(►) arrow button, or press the FORMAT button
repeatedly, to select one of the s ignal formats, a nd then press the ENTER
button to confirm the selection.
N
OTE. When you c hange signal format, synchronization shock occurs.
5. If you change the signal format while a test signal is being output, the
instrument starts loading a ll of the signal sets for the selected format and
displays the message "Now Loading...". When you see the message, "Done
(Press BACK)", press the BACK button.
3–230 TG8000 Multiformat Test Signal Generator User Manual
