AGL7 Analog Genlock module
Theavailablec
hoices described below depend on which format you select:
When the NTSC or NTSC No Setup format is selected, the signals listed
below are avai
lable:
Black Burst
Black Burst
with Field REF
When the PAL format is selected, the signals listed below are available:
Black Burst
Black Burst with No Field REF
AGL7 modu
le
TIMING submenu
Use this menu to adjust the timing offset of the input and output signals relative to
the internal reference signal (frame reset signal). Use the up (▲)ordown(▼)
arrow but
ton to scroll through the menu.
The TIMING submenu uses the same menu structure for both input and output
signals, except for the menu items displayed in the first line. The following
figure shows the TIMING submenu.

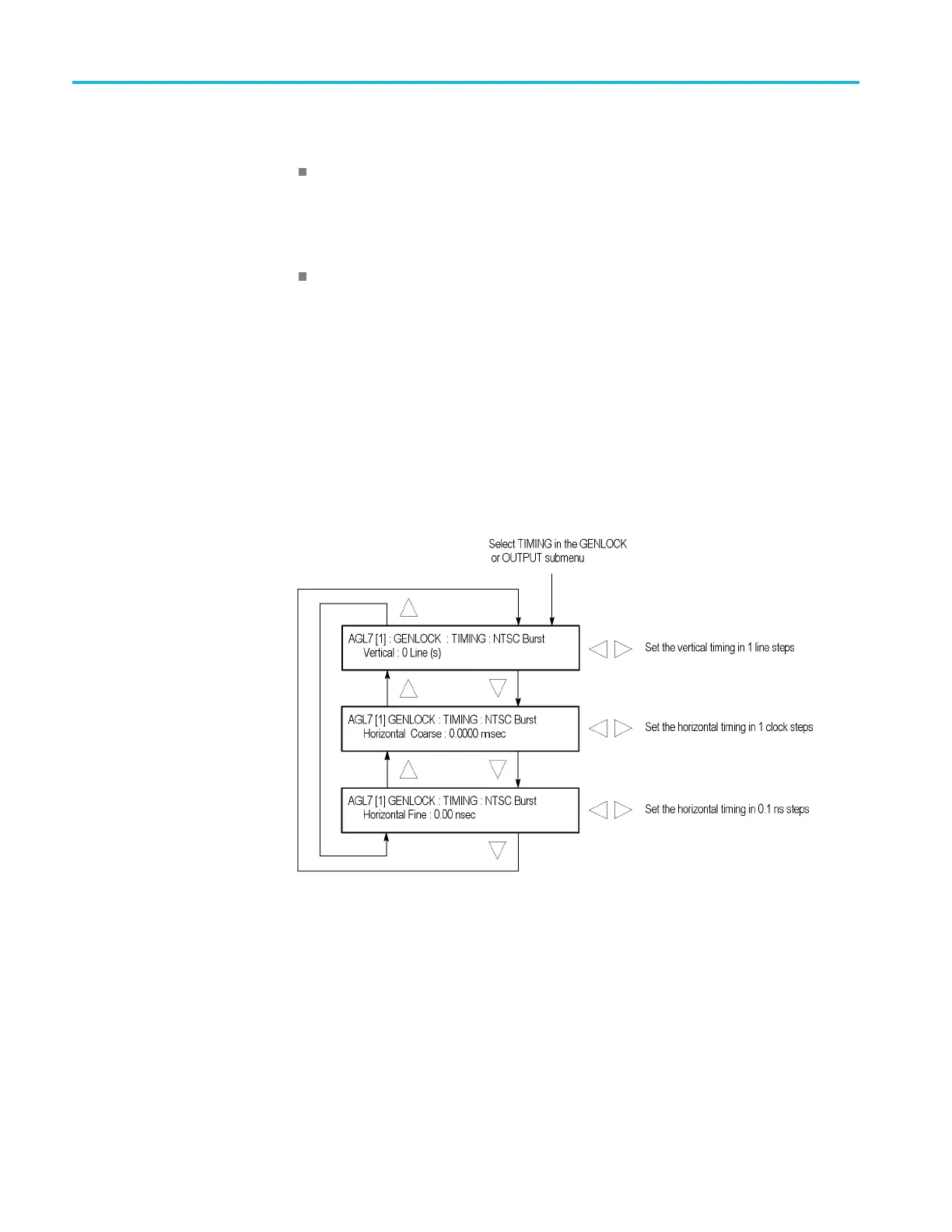

Figure 3-8: AGL7 module TIMING submenu
Vertical. Use the left (◄)orright(►) arrow button to adjust the vertical offset.
The range of the timing adjustment depends on the selected signal format. (See
Table 3-2.) (See Table 3-3.)
Horizontal coarse. Use the left (◄)orright(►) arrow button to adjust the coarse
horizontal offset. The range of the timing adjustment depends on the selected
signal format. (See Table 3-2.) (See Table 3-3.)
3–14 TG8000 Multiformat Test Signal Generator User Manual
