Tektronix TG8000

ATG7 Analog Test Generator module
ATG7 module
SELECT OUTPUT
submenu
Usethismenuto
set the video format, signal, and timing offset for the BLACK 1,
BLACK 2, or BARS output. You can also use this menu to set the ID text
overlay for the BARS output. The following figure shows the SELECT OUTPUT
submenu.

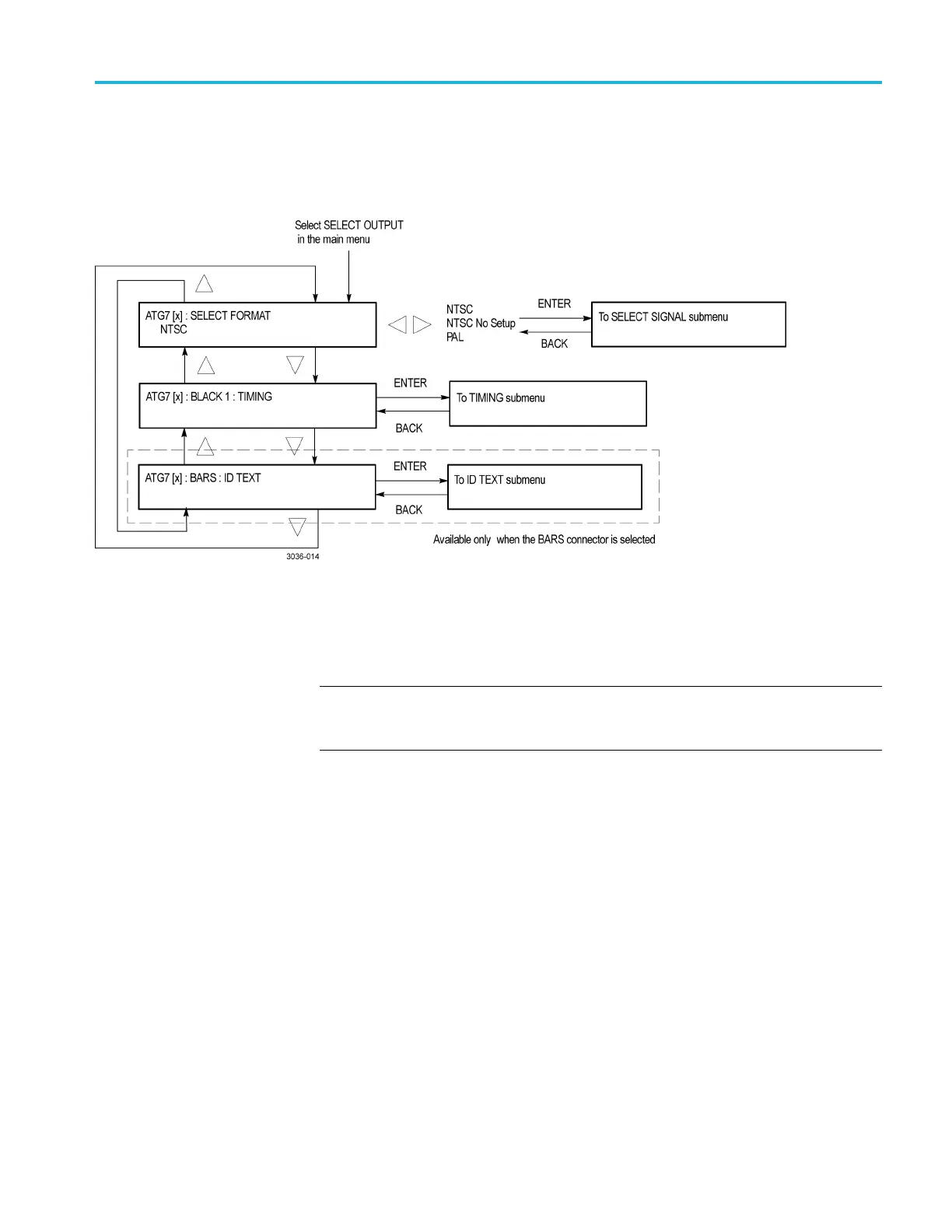

Figure 3-11: ATG7 module SELECT OUTPUT submenu
SELECT FORMAT. Selects the video format for the selected output. Use the left
(◄)or
right (►) arrow button to select NTSC, NTSC No Setup,orPAL.
NOTE. When y o u change the vide o format, synchronization shock will occur;
the video format changes immediately at the output as you change the format
selection.
Select the format you want, then press the front-panel ENTER button to access
the
SELECT SIGNAL submenu, where you select the output signal to use. (See
page 3-24.)
TIMING. Sets the timing offset of the selected output relative to the internal
reference signal (frame reset signal). Select this menu item and press the ENTER
button, to access the TIMING submenu. (See page 3-26.)
ID TEXT. Sets a text that is overlaid on the test signal output from the BARS
connector. Select this menu item and press the ENTER buttontoaccessthe
ID TEXT submenu. (See page 3-25.)
TG8000 Multiformat Test Signal Generator User Manual 3–23
