AVG7 Analog Video Generator module
Y position. Set
s the vertical position of the logo. The position is set as a
percentage of active picture height. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from -100.0% to 0.0% in 0.1% s teps.
Logo. Selects the logo you want to display. Use the left (◄)orright(►) arrow
button to select OFF or a logo file name. Press the ENTER button confirm the
selection.
When you select OFF, the logo overlay is disabled.
SAVE. Saves the display position for the logo to the logo file. Press the ENTER
button to save the current settings.
AVG7 module
ID TEXT submenu
Use this menu to edit the text that is overlaid on the output test signal and to set
the display position of the text. Use the up (▲) or down (▼) arrow button to
scroll through the menu. The following figure shows the ID TEXT submenu.

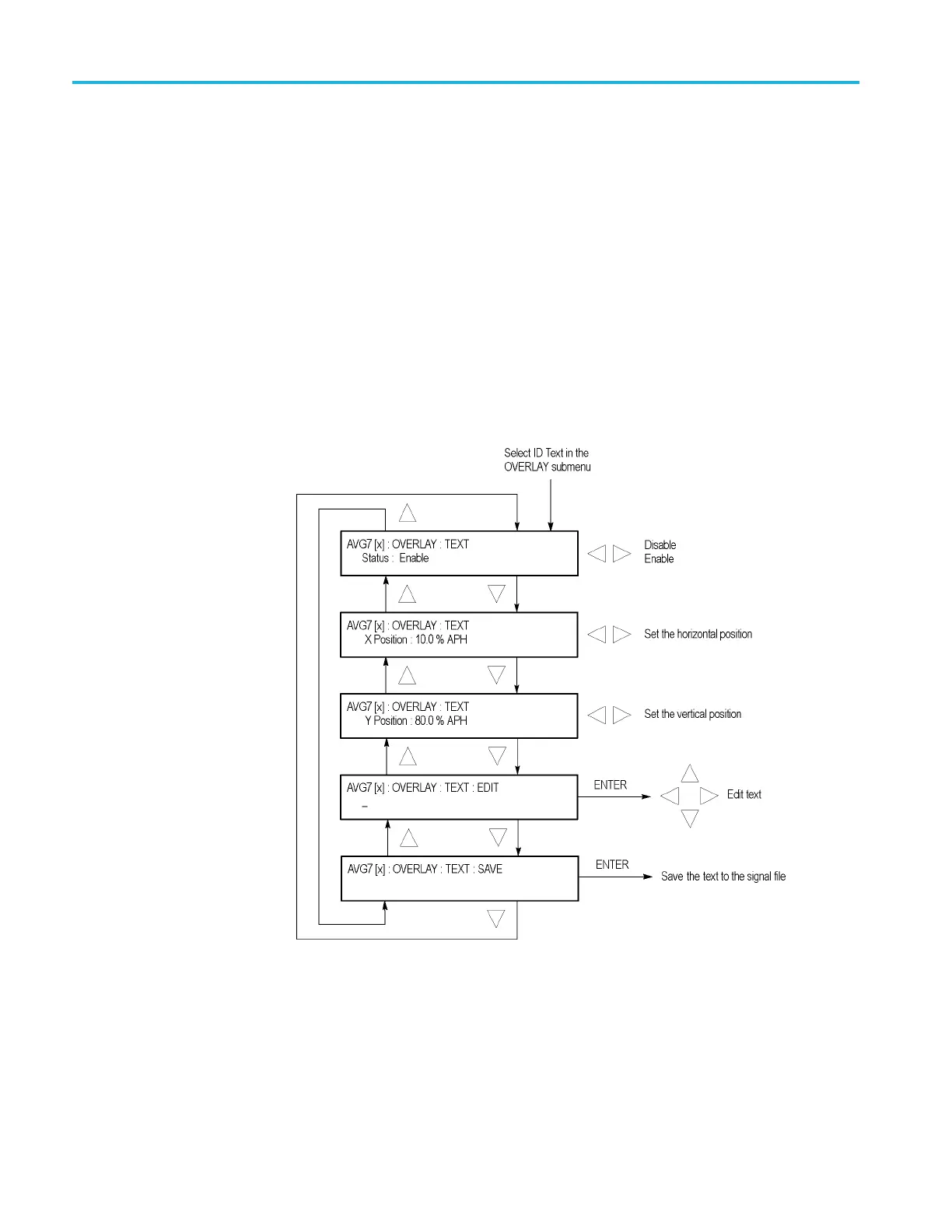

Figure 3-21: AVG7 module ID TEXT submenu
Status. Enables or disables the text overlay. Use the left (◄)orright(►) arrow
button to select between Enable and Disable, and then press the ENTER button
to confirm the selection.
