Tektronix TG8000 User Manual

AWVG7 Analog Wideband Video Generator module
AWVG7 module
ID TEXT submenu
Use this menu to
edit the text that is overlaid on the output test signal and to set
the display position of the text. Use the up (▲) or down (▼) arrow button to
scroll through the menu. The following figure shows the ID TEXT submenu.

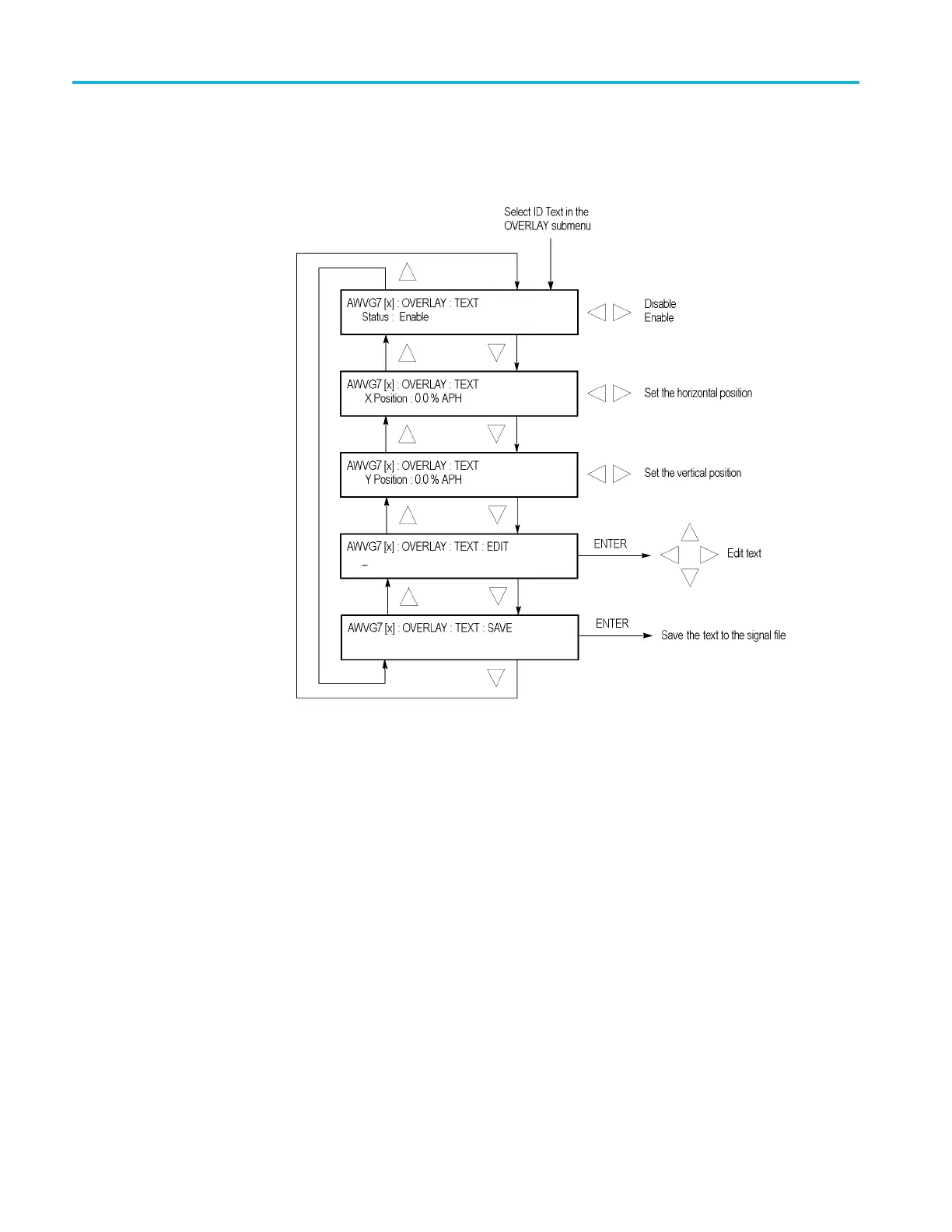

Figure 3-31: AWVG7 module ID TEXT submenu
Status. Enables or disables the text overlay. Use the left (◄)orright(►) arrow
button to select between Enable and Disable, and then press the ENTER button
to confirm the selection.
X position. Sets the horizontal position of the text. The position is set as a
per
centage of active picture width. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from 0.0% to 100.0% in 1% steps.
Y position. Sets the vertical position of the text. The position is set as a percentage
of active picture height. Use the left (◄)orright(►) arrow button to change the
position. You can set the value from 0.0% to 100.0% in 1% steps.
3–56 TG8000 Multiformat Test Signal Generator User Manual
