AWVG7 Analog Wideband Video Generator module
AWVG7 module
TIMING submen
u
Use this menu to
adjust the timing offset of the output signal relative to the internal
reference signal (frame reset signal). Use the up (▲)ordown(▼) arrow button to
change the menu items. The following figure shows the TIMING submenu.

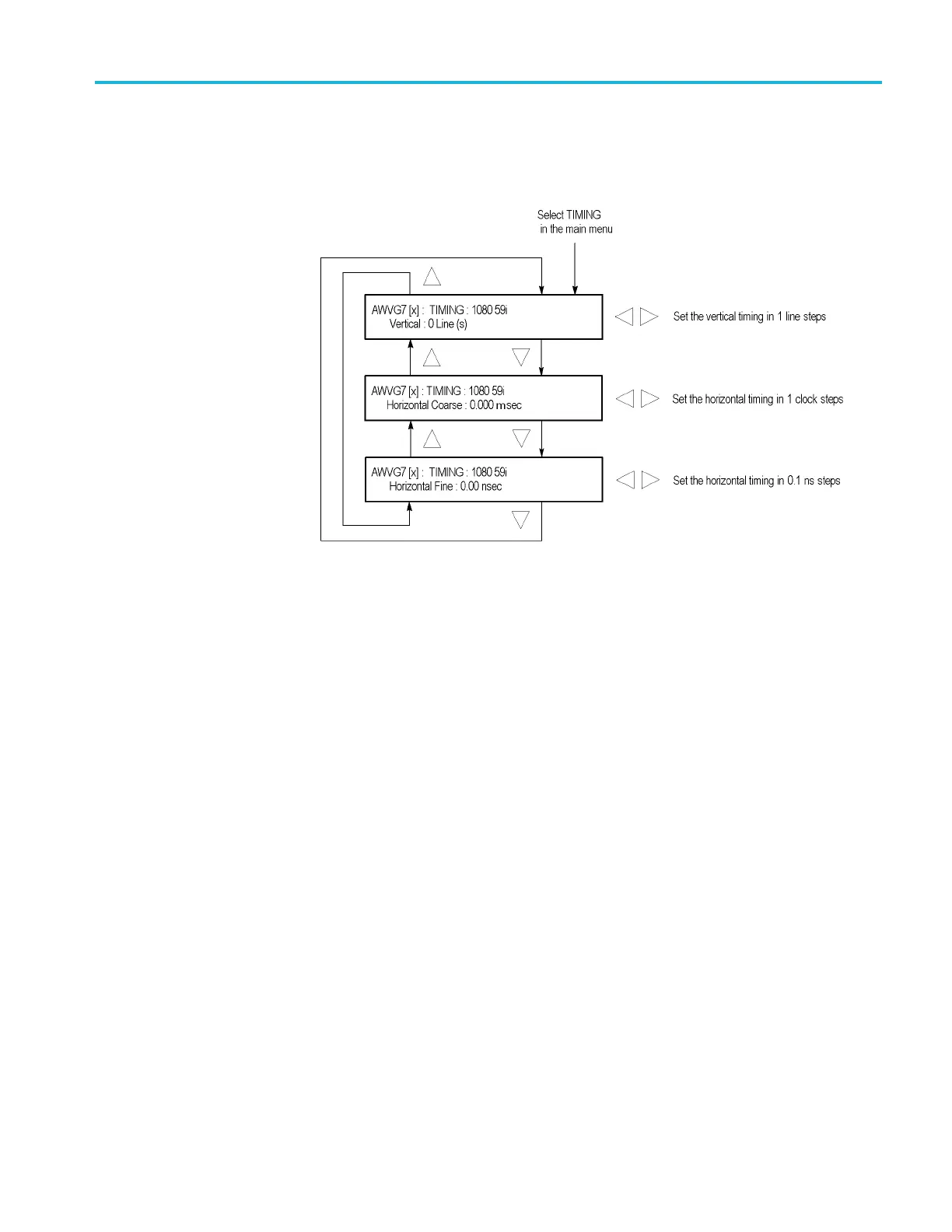

Figure 3-33: AWVG7 module TIMING submenu
TG8000 Multiformat Test Signal Generator User Manual 3–59
