AWVG7 Analog Wideband Video Generator module
AWVG7 module
VIDEO submenu
Usethismenuto
perform the following tasks:
Enable or disable the signal output from the CH 1, CH 2, and CH 3 connectors.
Set whether a sync signal is multiplexed with the B and R signals when a
GBR signal is being output.
Use the up (▲)ordown(▼) arrow button to scroll through the menu. The
following figure shows the VIDEO submenu.

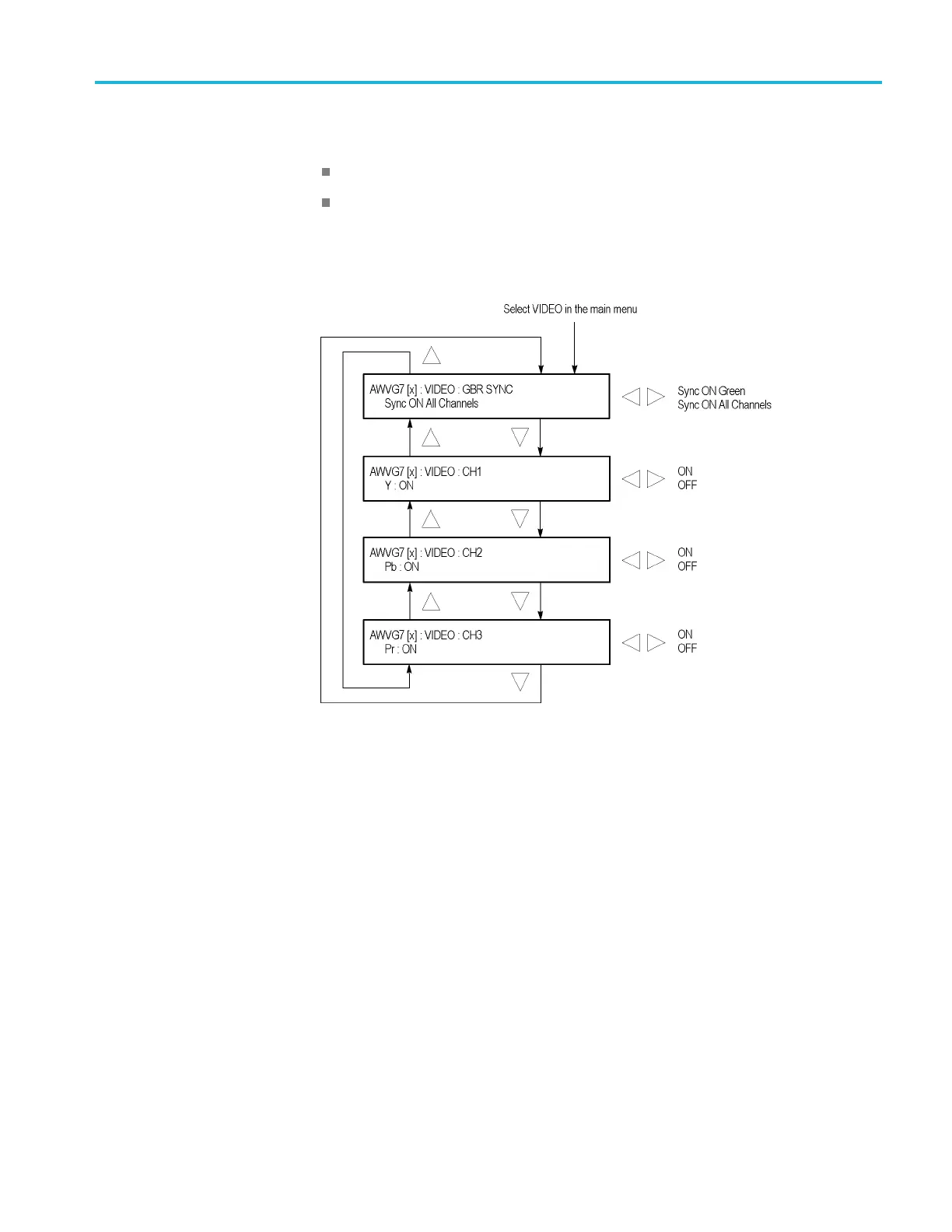

Figure 3-34: AWVG7 module VIDEO submenu
GBR SYNC. Sets whether a sync signal is multiplexed with the B signal and R
signal when a GBR signal is being output. Use the left (◄)orright(►) arrow
button to select between Sync ON Green and Sync ON All Channels.When
you select Sync ON All Channels, a sync signal is multiplexed with the G, B, and
R signals. Press the ENTER button to confirm the selection. This menu item
appears only when a GBR signal is being output.
CH 1. Turns the CH 1 signal output on or off. Use the left (◄)orright(►) arrow
button to select between ON and OFF. Press the ENTER button to confirm the
selection. The signal name that is displayed before the O N/OFF status depends on
the format of the currently selected signal (YPbPr component or GBR component).
CH 2. Turns the CH 2 signal output on or off. Use the left (◄)orright(►) arrow
button to select between ON and OFF. Press the ENTER button to confirm the
selection. The signal name that is displayed before the O N/OFF status depends on
the format of the currently selected signal (YPbPr component or GBR component).
TG8000 Multiformat Test Signal Generator User Manual 3–61
