Tektronix TG8000 User Manual

BG7 Black Generator module
BG7 module
HD TRI-LEVEL SYN C
RATE submenu
Use this submen
u to select whether an integer or non-integer clock will be used
for the HD tri-level sync rate for the BLACK outputs. Use the left (◄)orright
(►) arrow button to select Integer (60, 50, 30, 25, 24) or Non-Integer (59.94,
29.97, 23.98).PresstheENTER buttontoconfirm the selection.
NOTE. The clock rate selected here affects which signal formats are available
for the BLACK outputs.

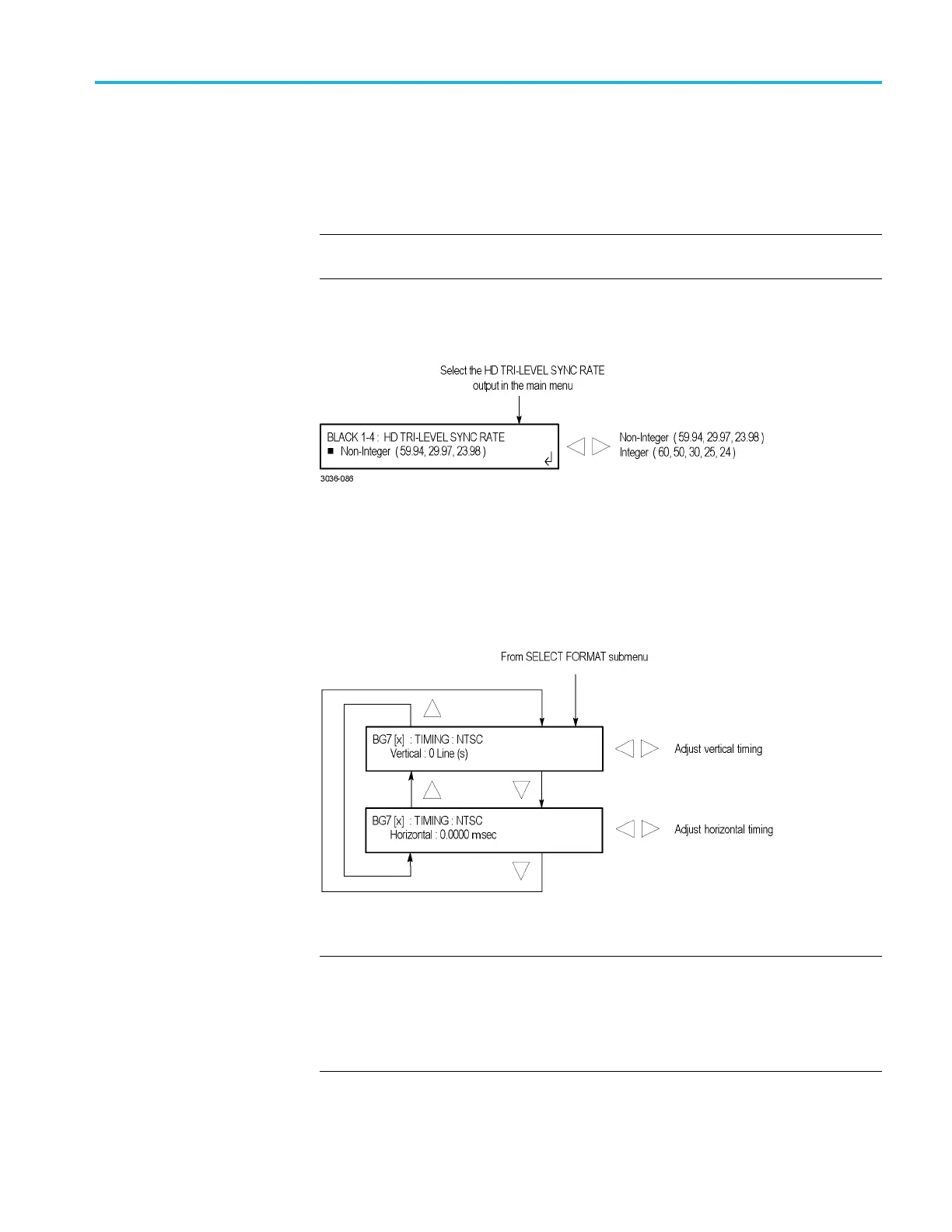

The following figure shows the HD TRI-LEVEL SYNC-RATE submenu.
Figure 3-37: BG7 module HD TRI-LEVEL SYNC RATE submenu
BG7 module
TIMING submenu
Use this submenu to adjust the timing offset of the selected BLACK output
relative to the genlock signal or the internal reference signal. Use the up (▲)or
down (▼) arrow button to select between Vertical and Horizontal offset. The
following figure shows the TIMING submenu.
Figure 3-38: BG7 module TIMING submenu
NOTE. You can reset the timing offset to zero by pressing the left (◄)orright(►)
arrow buttons simultaneously.
The horizontal timing can only be adjusted in clock cycle increments. You can
match the timing o f the AGL7 module to the BG7 module by adjusting the fine
timing controls on the AGL7 module.
TG8000 Multiformat Test Signal Generator User Manual 3–69
