BG7 Black Generator module
BG7 module
VITC submenu
(GPS7 module only)
Use this menu to
enable or disable the output of the VITC signal and to select the
video line on which the VITC signal will be inserted. Use the up (▲)ordown
(▼) arrow button to change the m enu items. The following figure shows the
VITC submenu.

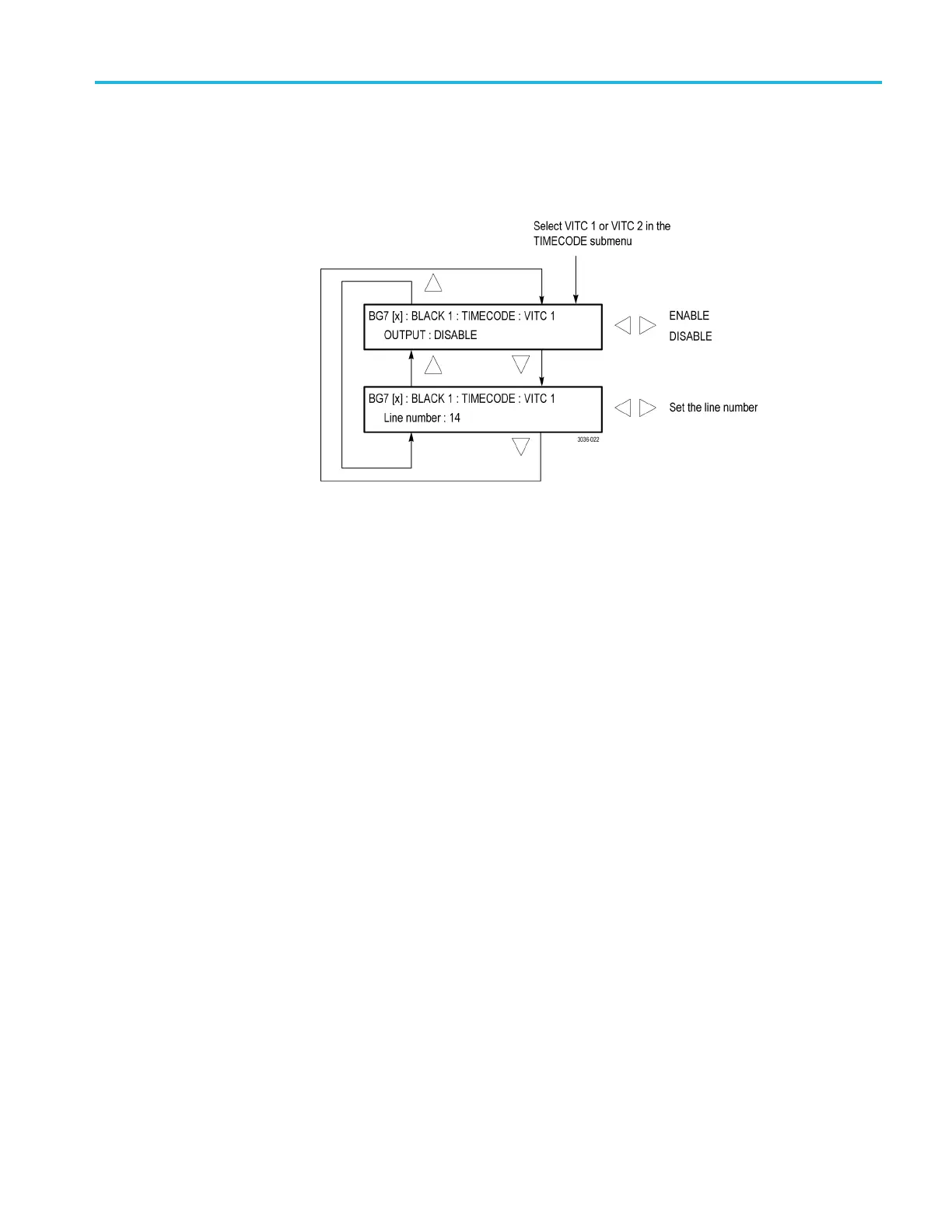

Figure 3-40: BG7 module VITC submenu
OUTPUT. Use this menu item to enable or disable insertion of a VITC on the
selected line. Use the left (◄)orright(►) a rrow button to select ENABLE or
DISABLE.PresstheENTER button to confirm the selection.
Line number. Use this menu item to select the video line on which the VITC
signa
l will be inserted. Use the left (◄)orright(►) arrow button to select the
video line number. The line number range varies by format: you can select from
line 10 to line 20 for NTSC, and from line 6 through line 22 for PAL. Press the
ENTER button to confirm the selection.
TG8000 Multiformat Test Signal Generator User Manual 3–73
