HDLG7 HD Dual Link Video Generator module
HDLG7 m odule
LINK OFFSET su
bmenu
Usethismenuto
adjust the timing offset of the Link B output relative to the Link
A output. The following figure shows the LINK OFFSET submenu.

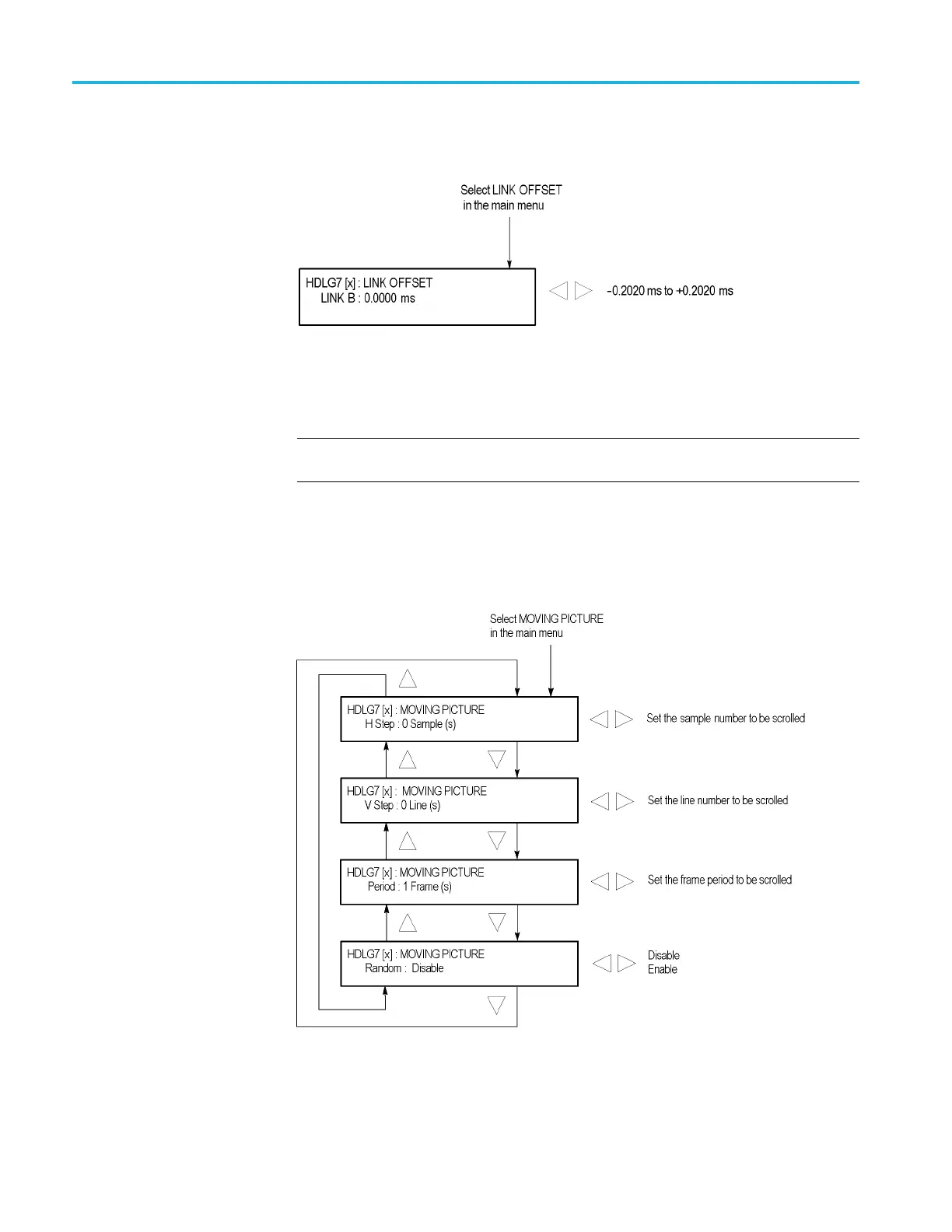

Figure 3-100: HDLG7 module LINK OFFSET submenu
Use the left (◄)orright(►) arrow button to change the value. You can set the
value fro
m -0.2020 μs to +0.2020 μsin0.0135μssteps.
NOTE. You can reset the offset value to zero by pressing the left (◄)orright(►)
arrow buttons simultaneously.
HDLG7 m odule
MOVING PICTURE
submen
u
Use this menu to scroll the active picture area of the serial digital video signal
up/down or left/right (or randomly). Use the up (▲)ordown(▼) arrow button to
scroll through the menu. The following figureshowstheMOVINGPICTURE
submenu.
Figure 3-101: HDLG7 module MOVING P ICTURE submenu
3–226 TG8000 Multiformat Test Signal Generator User Manual
