SDI7 Dual Channel SD/HD/3G SDI Video Generator module
Each option key
applies to only one SDI7 module. After the option key is entered,
the option key stays with that SDI7 module, enabling Option 3G and/or DBT
even when the module is moved to another TG8000 mainframe or to a TG700
mainframe that is running software version 5.6 or above.
Locate the option key document, and then perform the following steps to enter
the option key:
NOTE. This procedure u ses the instrument front panel to enter the option key. You
can also use the TG Setup utility to remotely enter the option key. Refer to the
TG8000 PC T
ools Technical Reference for information about using TG Setup
to enter the option key.
1. Press th
e front-panel MODULE button until TG8000 : PRESET is
displayed.
2. Press th
eup(▲)ordown(▼) arrow button until TG8000 : UT ILITY is
displayed, and then press the ENTER button.
3. Press t

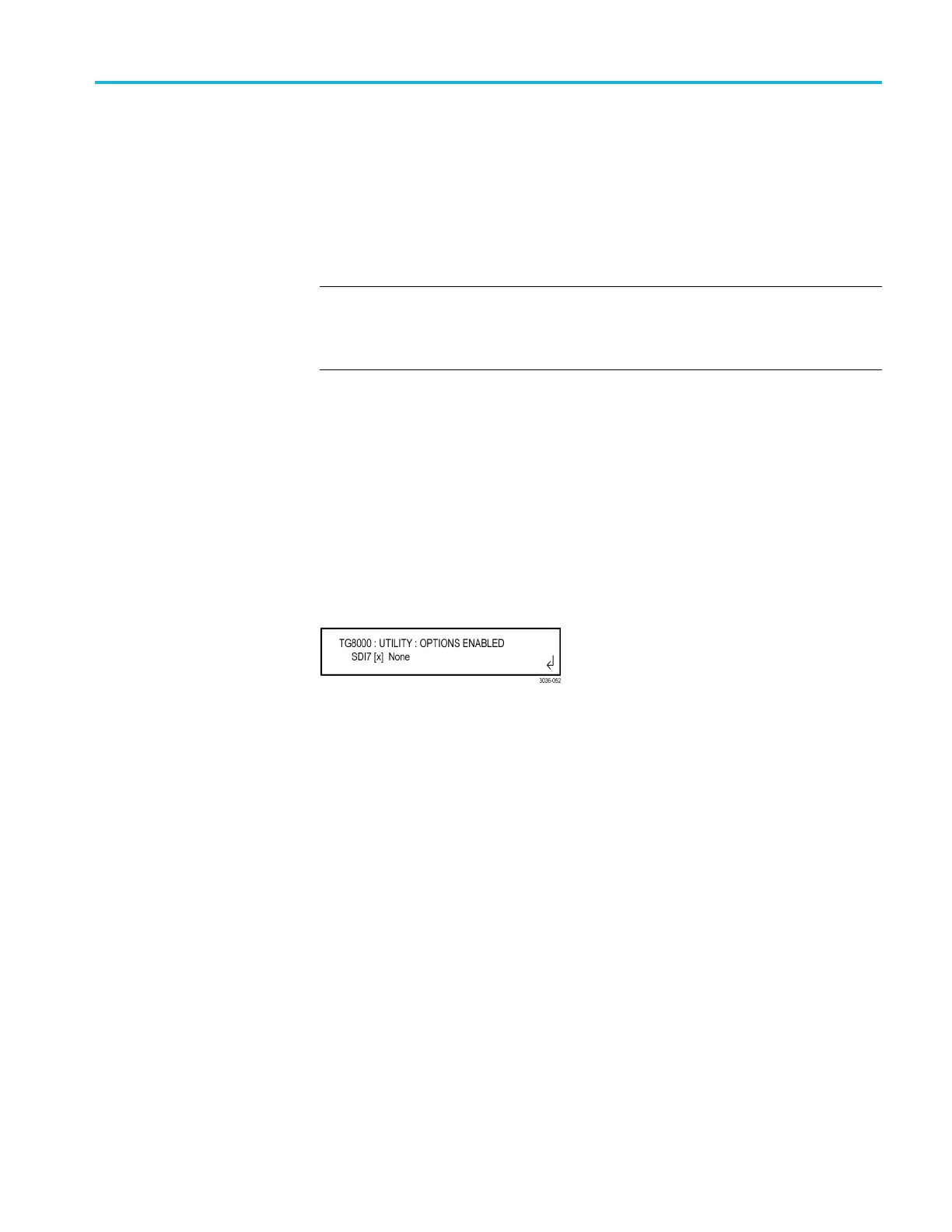

he up (▲)ordown(▼) arrow button until TG8000 : UTILITY :
OPTIONS ENABLED is displayed. The bottom line o f the display will
list the slot number in which the SDI7 module is installed and will indicate
whether Option 3G and/or DBT is enabled. None is displayed when no
options are enabled, 3G and/or DBT is displayed when options are enabled.
4. If more than one SDI7 module is installed in the mainframe, use the left
(◄)orright(►) arrow button to select the desired module, and then press
the ENTER button.
5. Press the up (▲)ordown(▼) arrow button until TG8000 : UTILITY :
MODULE ID is displayed.
6. Verify that the displayed module ID matches the module ID listed on the
option key document.
TG8000 Multiformat Test Signal Generator User Manual 3–255
