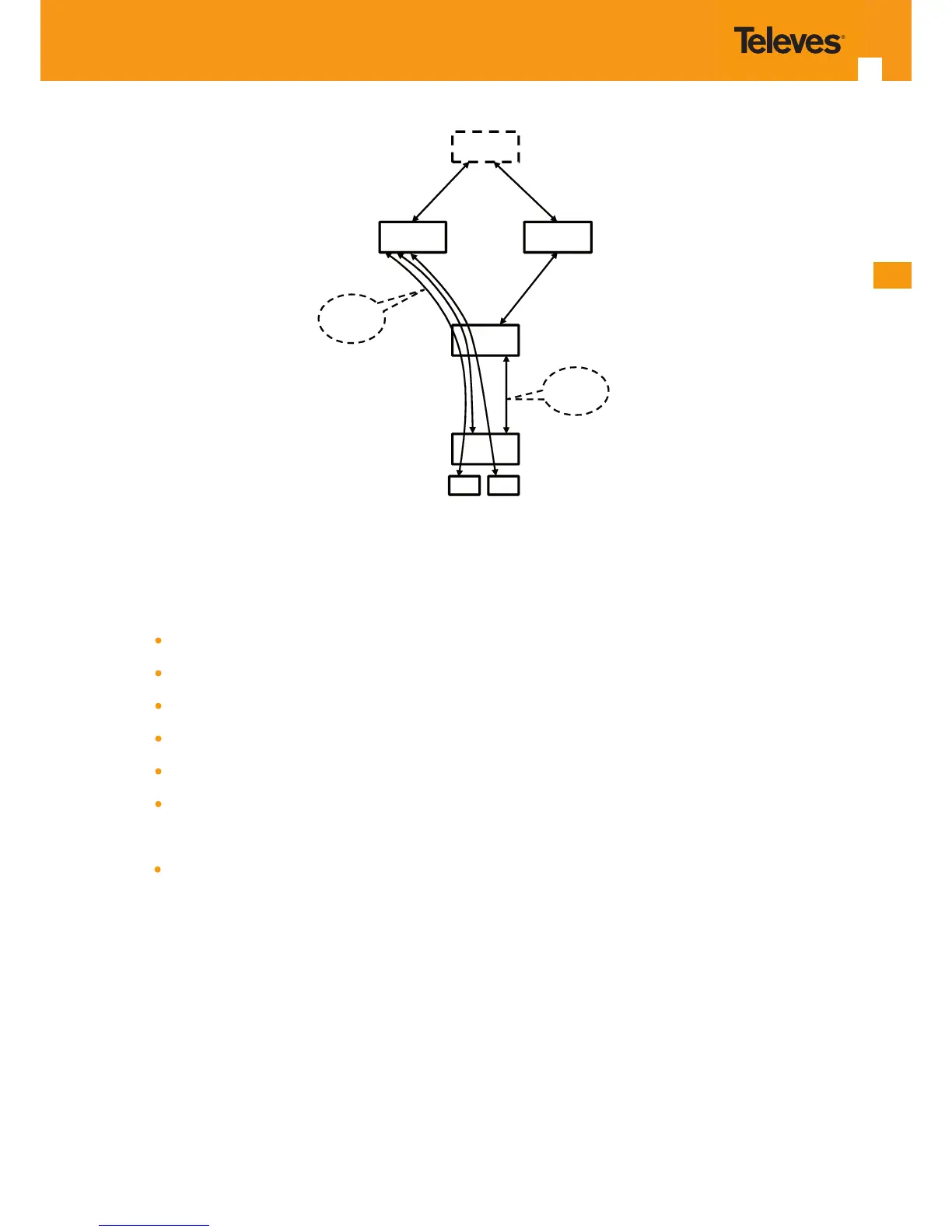

Figure 2-4: IP Based services-TR069 conguration
2.4 Interfaces
Client interface options are of type:
4x 100/1000Base-T for Ethernet network connection (RJ45 connectors);
2x FXS channels (RJ11 connectors);
2x2 @ 2.4/5.0 GHz wireless interfaces (802.11 b/g/n);
2x USB 2.0 Masters for printer sharing, media sharing and for 3G/4G backup uplink;
RF Overlay interface;
Control switches for power and WI-FI;
Network interface option is of type:
GPON SC/APC Optical connector (B+/C+).
2.5 General Features
GPON is a point-to-multipoint passive optical network, in which unpowered optical splitters are used to enable a single optical ber to serve
multiple premises, typically 1-64.
A PON consists of an optical line terminal (OLT) at the central oce and a number of optical network terminals (ONT) at the customer premises.
Downstream signals are broadcasted to all premises sharing multiple bers. Encryption can prevent eavesdropping. Upstream signals are com-
bined using a multiple access protocol (Time Division Multiple Access- TDMA). The OLT queues data to the various ONT terminals in order to pro-
vide time slot assignments for upstream communication.
In Figure 2-5 it is shown a scenario for a multi-service user domain basic architecture through an ISP network.
