4. Setup
4.1 Before installing Refs. 769501-769502 device
Check for site’s environmental conditions and look for power and optical access points nearby;
Do not install the device in environments where the temperature or humidity exceeds the standard limits;
This device is a passive cooling device. There are thermal holes in the surface of the box. To prevent the overheating do not
obstruct these thermal holes;
The Refs. 769501-769502 device is not designed for outdoor setup. Please place it in a convenient indoor/cabinet environment;
Use only the provided power kit. The use of a third party power adapter may not guarantee its proper operation;
To avoid any hazard or damage in your eyes, please never look directly into a bre optic connector;
Never assume that the laser beam is inactive or that the optical bre is switched o.
4.2 Connections
Refs. 769501-769502 connections are distributed by two side faces of the device Refs. 769501-769502 connections’ general view is show in the
following picture, Figure 4-1.

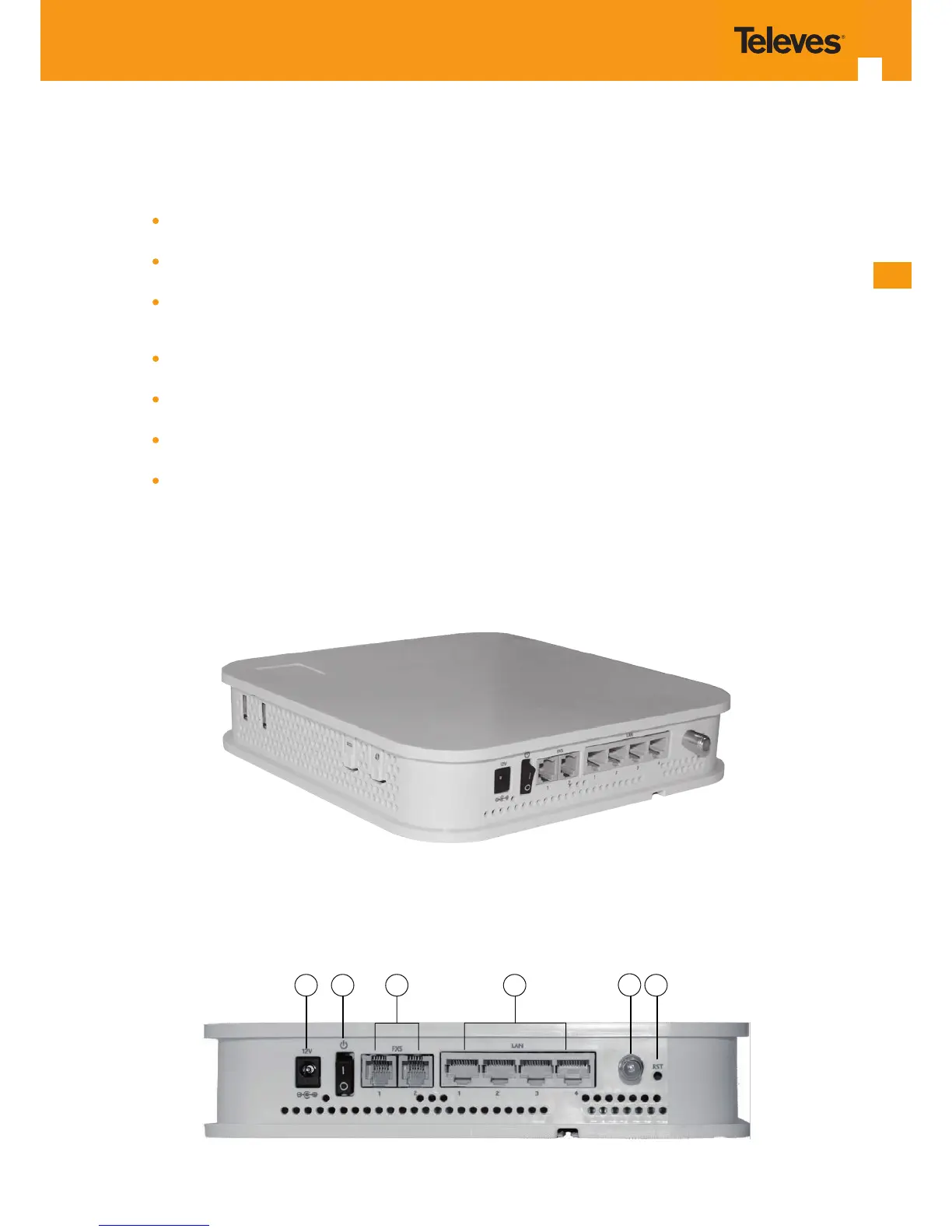

Figure 4-1: Refs. 769501-769502 connections general view
