6. Operation Indicators
6.1 Refs. 769501-769502
The Refs. 769501-769502 has fteen LEDs to indicate the equipment operational status.
6.1.1 LED Indicators Status

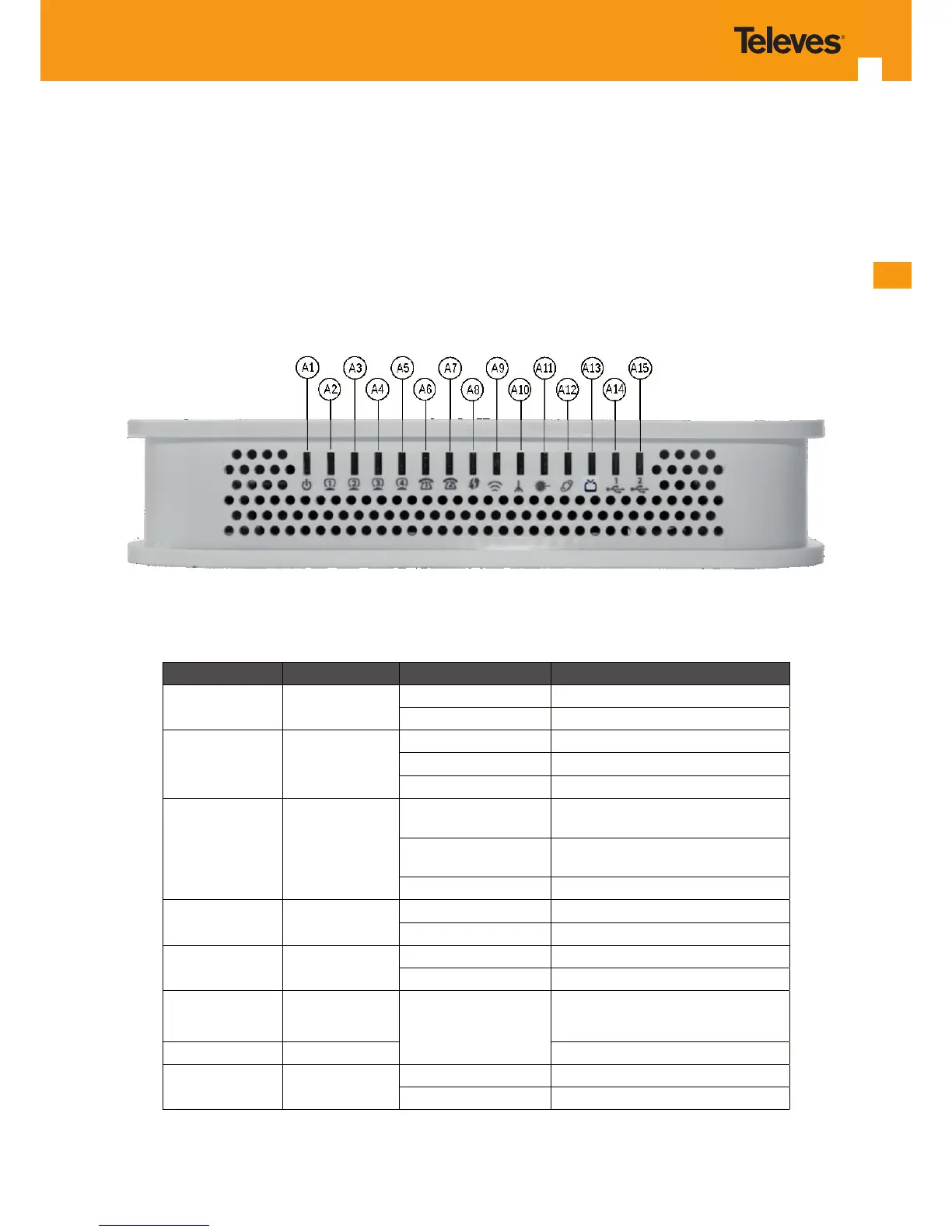

Figure 6-1: Refs. 769501-769502 status LEDs
LED ID LED Status Description
A1
(1)
POWER
ON Power supply ON (green)
OFF Power supply OFF
A2 to A5
(2)
ETHERNET
ON With Ethernet connection (green)
OFF No Ethernet connection
Flashing Ethernet IN/OUT activity (green)
A6, A7
(2)
VOIP
ON
Service congured and authenti-
cated (green)
OFF
Service not congured or registra-
tion failure
Flashing Telephone o the hook
A8
(2)
WPS
ON WPS active (blinking green)
OFF WPS inactive
A9
(1)
RADIO SIGNAL
ON Radio signal active
OFF Radio signal inactive
A10
(2)
GPON LINK
See Table 62
A11
(2)
GPON AUTH
A12
(2)
PPPoE
ON PPPoE active
OFF PPPoE inactive
