GPON ONT
8 9
7

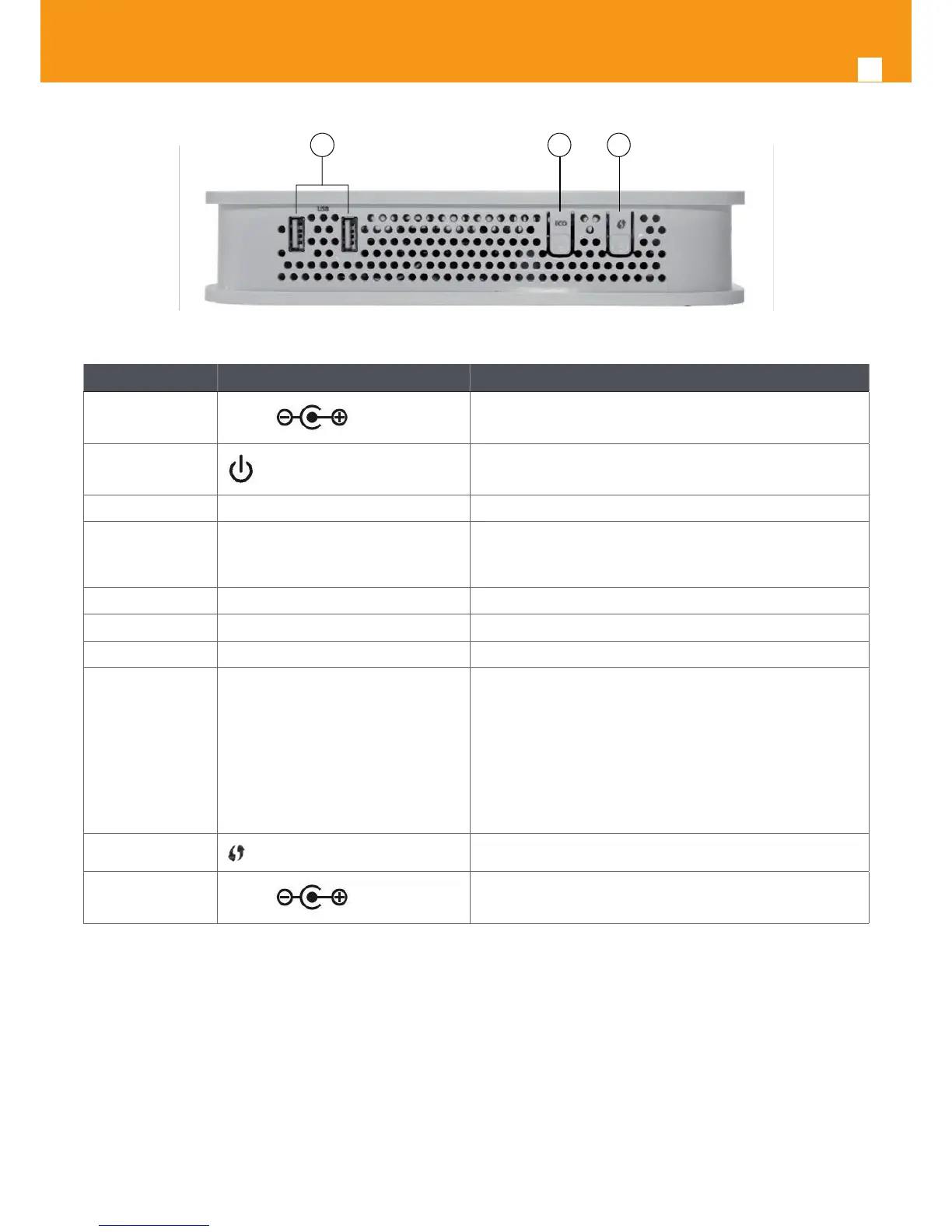

Figure 4-3: Refs. 769501-769502 connections 2
Number Name Description
1
12V
12V DC Power Supply Connector
2
ON/OFF button
3 FXS (1, 2) 2x RJ11 – FXS Ports
4 LAN (1, 2, 3, 4)
4x RJ45 Ports - 10/100/1000Base-T
Ethernet with AUTO-MDIX
5
(1)
RF Video
(1)
Video RF Connector, F type
(1)
6 RST Congurations RESET button
7 USB (1, 2) 2x USB 2.0 ports
8 ECO
Energy saving button.
In order to verify the status of all LEDS press the button.
If not pressed only POWER and RADIO SIGNAL LEDs have up-
dated status information.
9
WPS - WI-FI Protected Set-up
7
12V
12V DC Power Supply Connector
Table 4-1: Refs. 769501-769502 connections description
NOTES:
(1) Optional ;
Dependent on the Refs. 769501-769502 specic model
