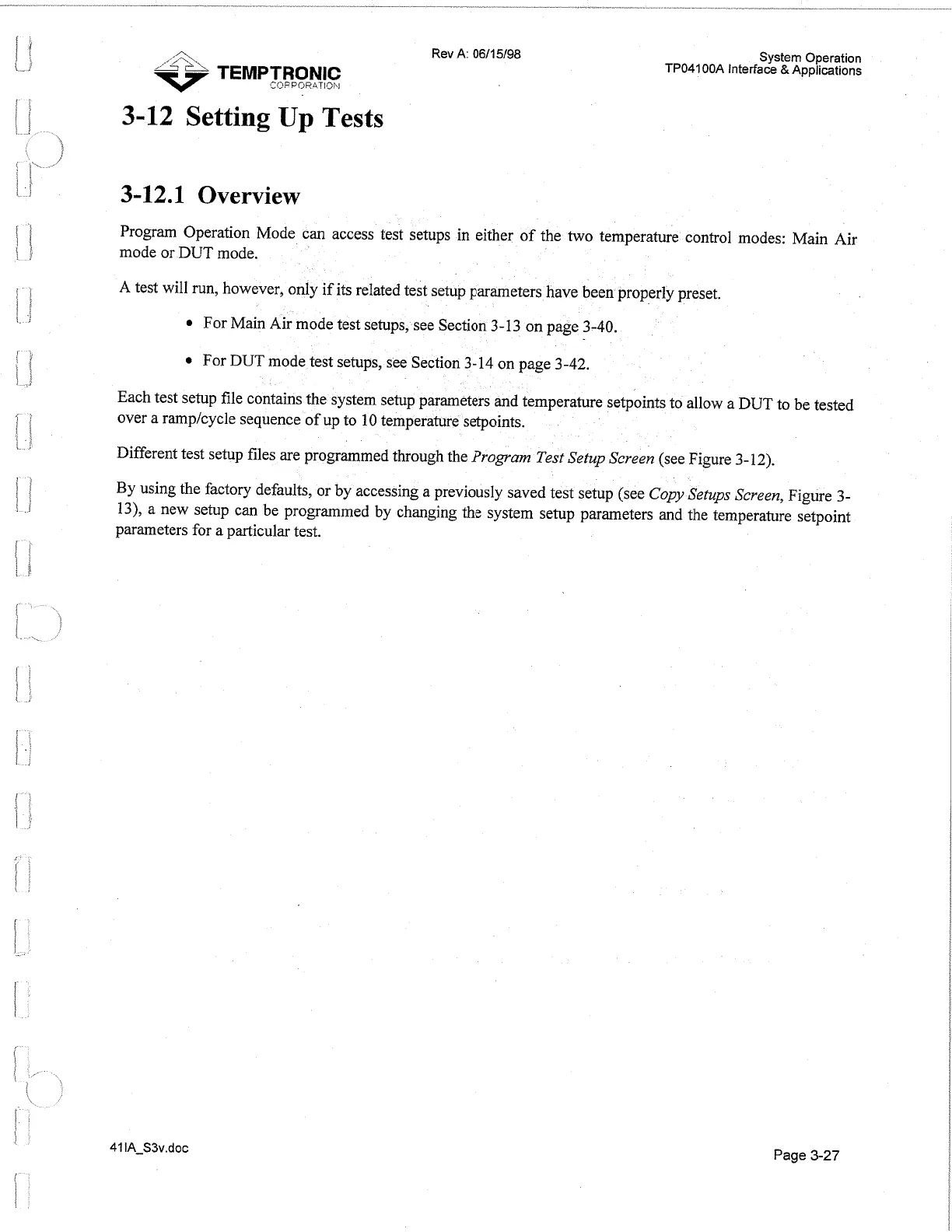

3-12 Setting Up Tests
3-12.1 Overview
Rev A: 0611 5/98
System Operation
TP04100A Interface & Applications
Program Operation Mode can access test setups in either of the two temperature control modes: Main Air
mode or DUT mode.
A test will run, however, only if its related test setup parameters have been properly preset.
For Main Air mode test setups, see Section 3-13 on page 3-40.
For DUT mode test setups, see Section 3-14 on page 3-42.
Each test setup file contains the system setup parameters and temperature setpoints to allow a DUT to be tested
over a ramplcycle sequence of up to 10 temperature setpoints.
Different test setup files are programmed through the
Program Test Setup Screen (see Figure 3-12).
By using the factory defaults, or by accessing a previously saved test setup (see
Copy Setups Screen, Figure 3-
13), a new setup can be programmed by changing the system setup parameters and the temperature setpoint
parameters for a particular test.
