Preparation for Use
TP04100A Interface
& Applications

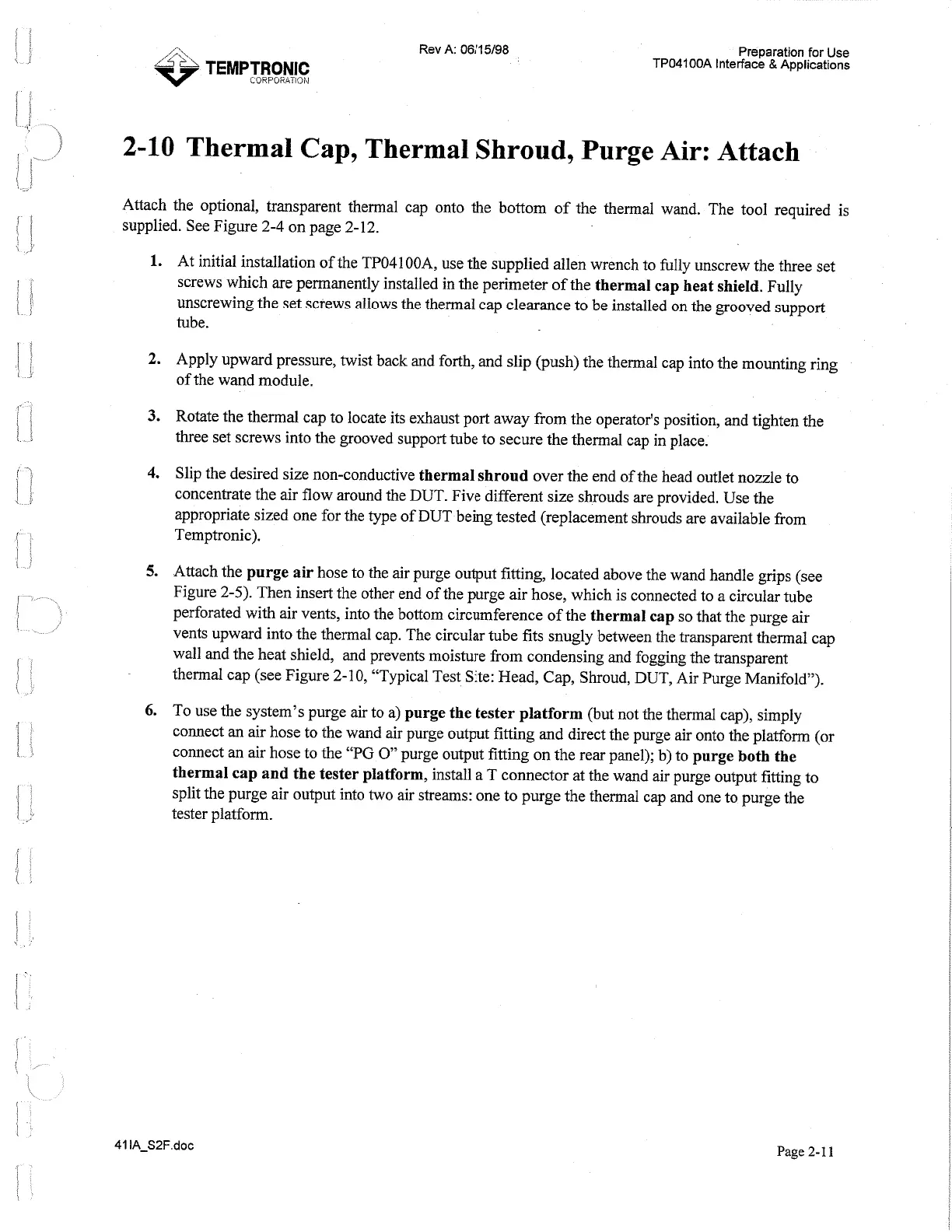

2-10 Thermal Cap, Thermal Shroud, Purge Air: Attach
Attach the optional, transparent thermal cap onto the bottom of the thermal wand. The tool required is
supplied. See Figure 2-4 on page 2-12.
At initial installation of the TP041 OOA, use the supplied allen wrench to fully unscrew the three set
screws which are permanently installed in the perimeter of the
thermal cap heat shield. Fully
unscrewing the set screws allows the thermal cap clearance to be installed on the grooved support
tube.
Apply upward pressure, twist back and forth, and slip (push) the thermal cap into the mounting ring
of the wand module.
Rotate the thermal cap to locate its exhaust port away from the operator's position, and tighten the
three set screws into the grooved support tube to secure the thermal cap in place.
Slip the desired size non-conductive
thermal shroud over the end of the head outlet nozzle to
concentrate the air flow around the DUT. Five different size shrouds are provided. Use the
appropriate sized one for the type of DUT being tested (replacement shrouds are available from
Temptronic).
Attach the
purge air hose to the air purge output fitting, located above the wand handle grips (see
Figure 2-5). Then insert the other end of the purge air hose, which is connected to a circular tube
perforated with air vents, into the bottom circumference of the
thermal cap so that the purge air
vents upward into the thermal cap. The circular tube fits snugly between the transparent thermal cap
wall and the heat shield, and prevents moisture from condensing and fogging the transparent
thermal cap (see Figure 2-10, "Typical Test Site: Head, Cap, Shroud, DUT, Air Purge Manifold").
To use the system's purge air to a)
purge the tester platform (but not the thermal cap), simply
connect an air hose to the wand air purge output fitting and direct the purge air onto the platform (or
connect an air hose to the "PG
0" purge output fitting on the rear panel); b) to purge both the
thermal cap and the tester platform,
install a T connector at the wand air purge output fitting to
split the purge air output into two air streams: one to purge the thermal cap and one to purge the
tester platform.
Page 2-1 1
