System Operation
TP04100A Interface & Applications
Rev A: 0611 5/98
,...,$;,,
v
TEMPTRONIC
CORPOcATION

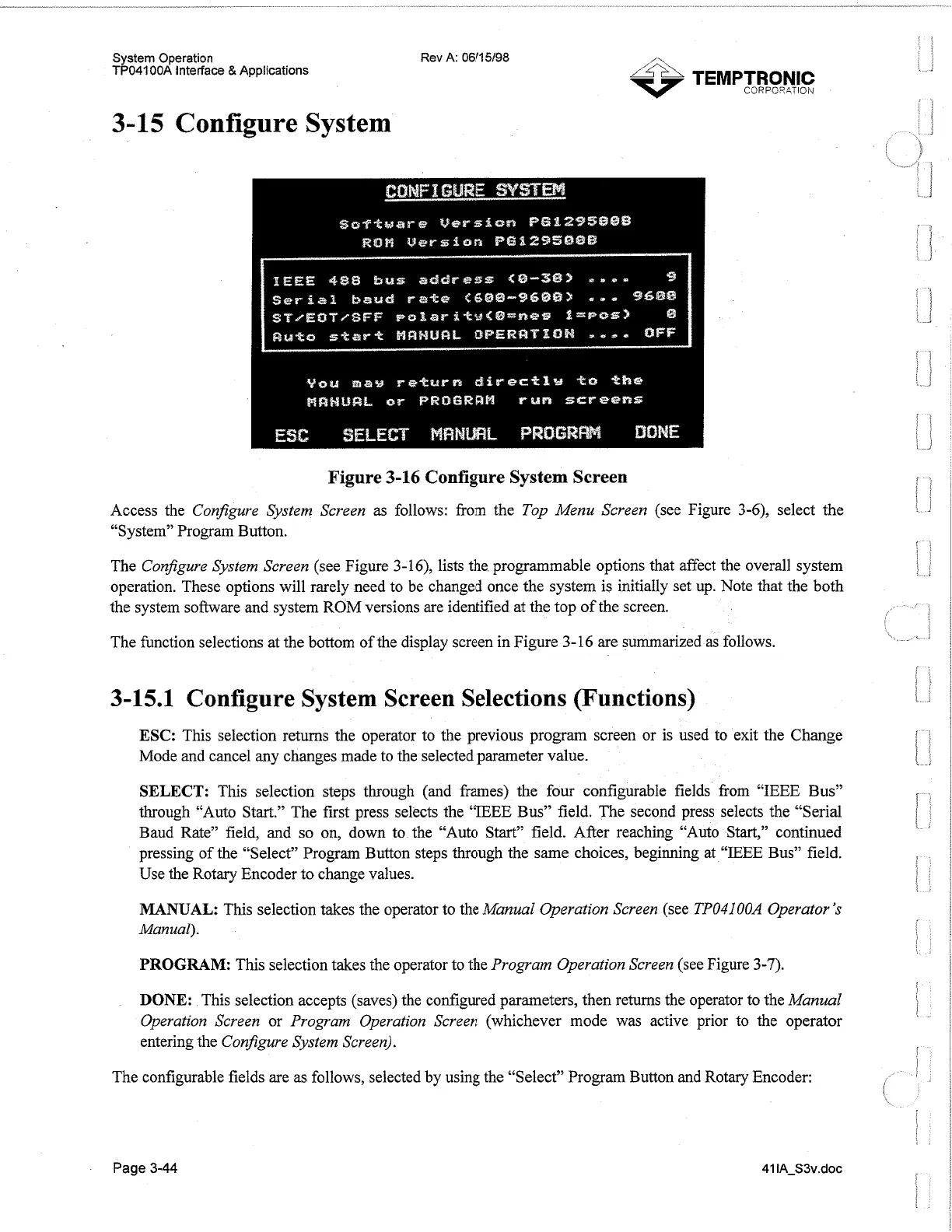

3-15 Configure System
Figure 3-16 Configure System Screen
Access the Configure System Screen as follows: from the Top Menu Screen (see Figure 3-6), select the
"System" Program Button.
The
Configure System Screen (see Figure 3-16), lists the programmable options that affect the overall system
operation. These options will rarely need to be changed once the system is initially set up. Note that the both
the system software and system ROM versions are identified at the top of the screen.
The function selections at the bottom of the display screen in Figure 3-16 are summarized
as follows.
3-15.1 Configure System Screen Selections (Functions)
ESC: This selection returns the operator to the previous program screen or is used to exit the Change
Mode and cancel any changes made to the selected parameter value.
SELECT: This selection steps through (and frames) the four configurable fields from "IEEE Bus"
through "Auto Start." The first press selects the "IEEE Bus" field. The second press selects the "Serial
Baud Rate" field, and so on, down to the "Auto Start" field. After reaching "Auto Start," continued
pressing of the "Select7' Program Button steps through the same choices, beginning at "IEEE Bus" field.
Use the Rotary Encoder to change values.
MANUAL: This selection takes the operator to the Manual Operation Screen (see TP04100A Operator's
Manual).
PROGRAM: This selection takes the operator to the Program Operation Screen (see Figure 3-7).
DONE: This selection accepts (saves) the configured parameters, then returns the operator to the Manual
Operation Screen
or Program Operation Screen (whichever mode was active prior to the operator
entering the
Configure System Screen).
The configurable fields are as follows, selected by using the "Select" Program Button and Rotary Encoder:
Page 3-44
