Preparation for Use
TP04100A Interface
&
Applications
Rev A:
0611
5/98
I*
//
:,
T7
TEMPTRONIC
CORPORATION
2-1

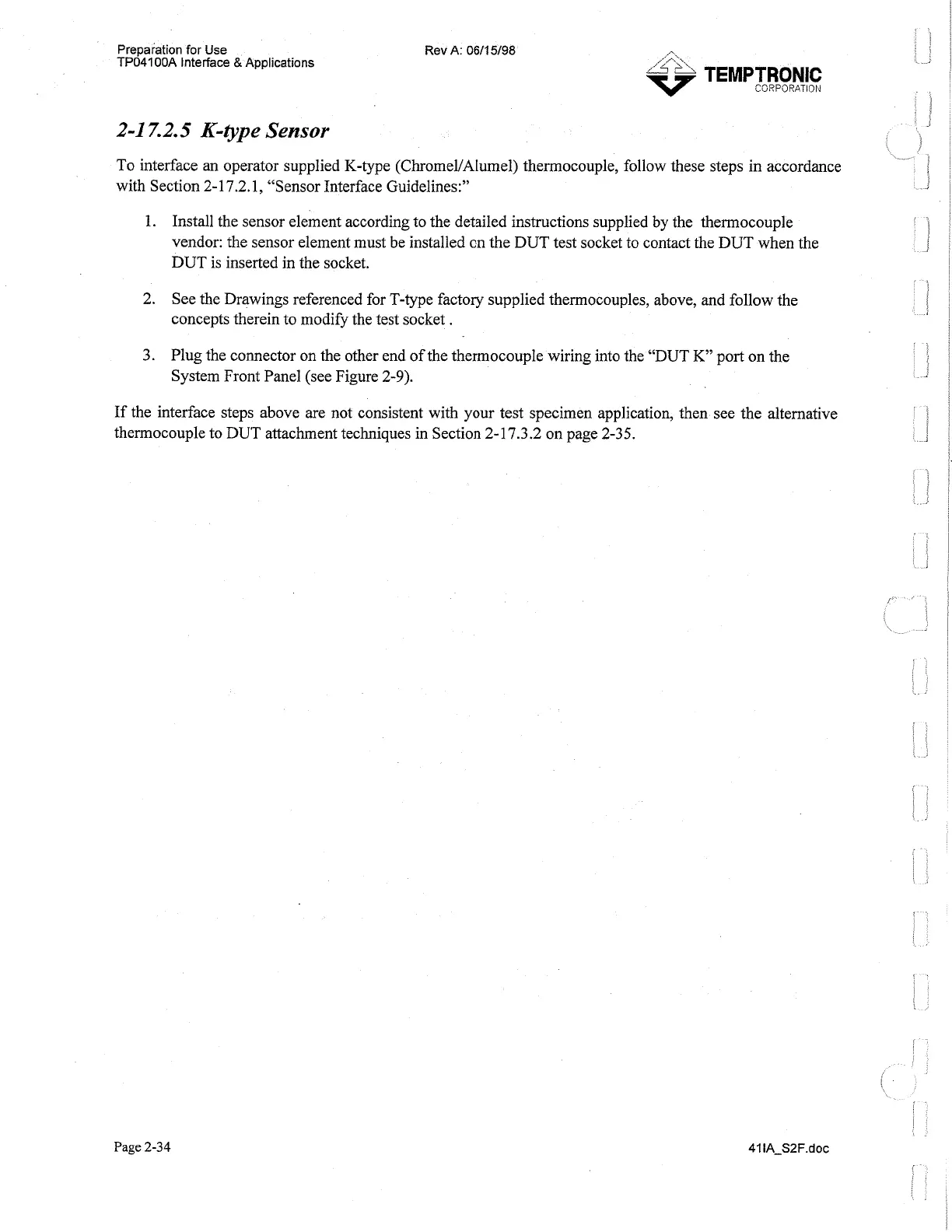

7.2.5
K-type
Sensor
To interface an operator supplied K-type (ChromeVAlumel) thermocouple, follow these steps in accordance
with Section 2- 17.2.1, "Sensor Interface Guidelines:"
1.
Install the sensor element according to the detailed instructions supplied by the thermocouple
vendor: the sensor element must be installed on the DUT test socket to contact the DUT when the
DUT is inserted in the socket.
2. See the Drawings referenced for T-type factory supplied thermocouples, above, and follow the
concepts therein to modify the test socket
.
3.
Plug the connector on the other end of the thermocouple wiring into the "DUT
K"
port on the
System Front Panel (see Figure 2-9).
If the interface steps above are not consistent with your test specimen application, then see the alternative
thermocouple to DUT attachment techniques in Section
2-17.3.2
on page 2-35.
Page
2-34
