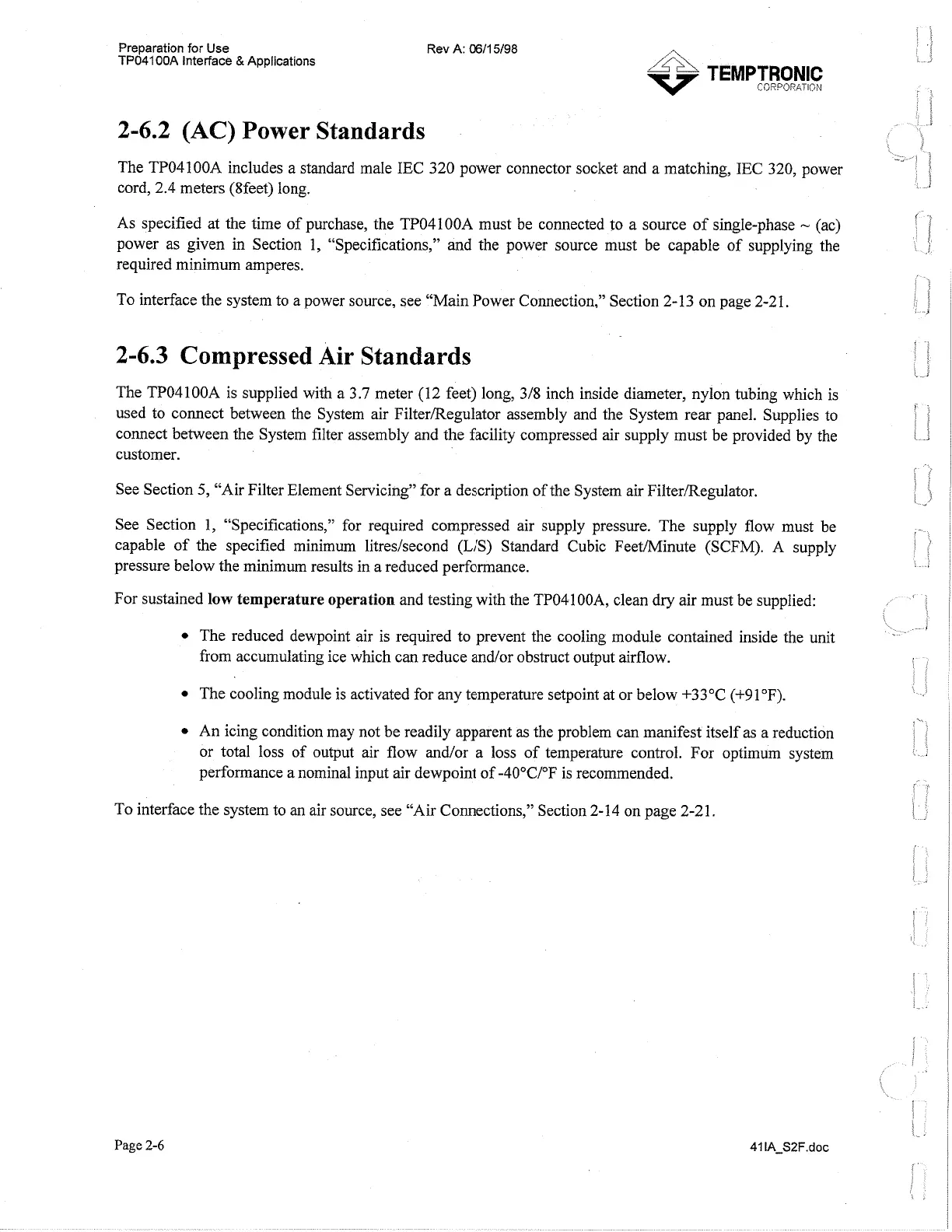

Preparation for Use
TP04100A Interface
&
Applications
Rev
A:
0611
5/98
2-6.2
(AC)
Power Standards
The TP04100A includes a standard male IEC 320 power connector socket and a matching, IEC 320, power
cord, 2.4 meters (8feet) long.
As specified at the time of purchase, the TP04100A must be connected to a source of single-phase
-
(ac)
power as given in Section 1, "Specifications," and the power source must be capable of supplying the
required minimum amperes.
To interface the system to a power source, see "Main Power Connection," Section 2-13 on page 2-21.
2-6.3 Compressed Air Standards
The TP04100A is supplied with a 3.7 meter (12 feet) long, 318 inch inside diameter, nylon tubing which is
used to connect between the System air FilterIRegulator assembly and the System rear panel. Supplies to
connect between the System filter assembly and the facility compressed air supply must be provided by the
customer.
See Section
5,
"Air Filter Element Servicing" for a description of the System air FilterIRegulator.
See Section 1, "Specifications," for required compressed air supply pressure. The supply flow must be
capable of the specified minimum litreslsecond (L/S) Standard Cubic FeetMinute (SCFM). A supply
pressure below the minimum results in a reduced performance.
For sustained
low
temperature operation
and testing with the TP041 OOA, clean dry air must be supplied:
The reduced dewpoint air is required to prevent the cooling module contained inside the unit
from accumulating ice which can reduce and/or obstruct output airflow.
The cooling module is activated for any temperature setpoint at or below +33"C (+91•‹F).
An icing condition may not be readily apparent as the problem can manifest itself as a reduction
or total loss of output air flow andlor a loss of temperature control. For optimum system
performance a nominal input air dewpoint of -40•‹C/"F is recommended.
To interface the system to an air source, see "Air Connections," Section 2-14 on page 2-21.
