Temptronic ThermoStream TP04100A Interface & Applications Manual

Preparation for Use
TP04100A Interface
& Applications
Rev
A: 0611 5/98

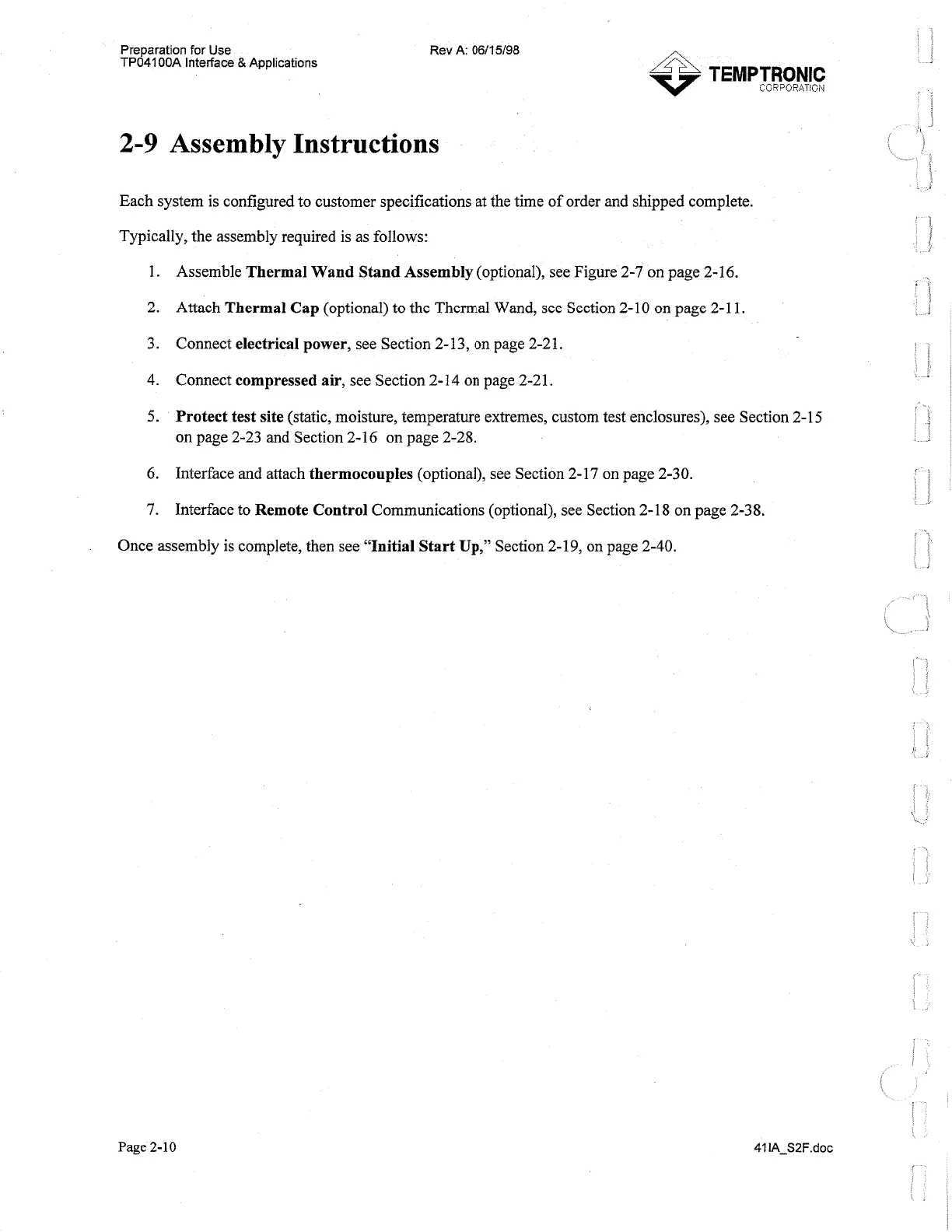

2-9 Assembly Instructions
TEMPTRONIC
CGFPGRATION
Each system is configured to customer specifications at the time of order and shipped complete.
Typically, the assembly required is as follows:
1. Assemble Thermal Wand Stand Assembly (optional), see Figure 2-7 on page 2-16.
2. Attach Thermal Cap (optional) to the Thermal Wand, see Section 2-10 on page 2-1 1.
3. Connect electrical power, see Section 2-1 3, on page 2-2 1.
4. Connect compressed
air, see Section 2-14 on page 2-21.
5. Protect test site (static, moisture, temperature extremes, custom test enclosures), see Section 2-1 5
on page 2-23 and Section 2-16 on page 2-28.
6.
Interface and attach thermocouples (optional), see Section 2-17 on page 2-30.
7. Interface to Remote Control Communications (optional), see Section 2-18 on page 2-38.
Once assembly is complete, then see "Initial Start Up," Section 2-19, on page 2-40.
Page 2- 10
