Routine Maintenance
TP04100A Interface
8
Applications
Rev A: 0611
5/98
9.
When the High Temperature "Hot" Calibration is completed, the system advances to the
Calibration
Complete Screen,
below.
5-1
0.2.4

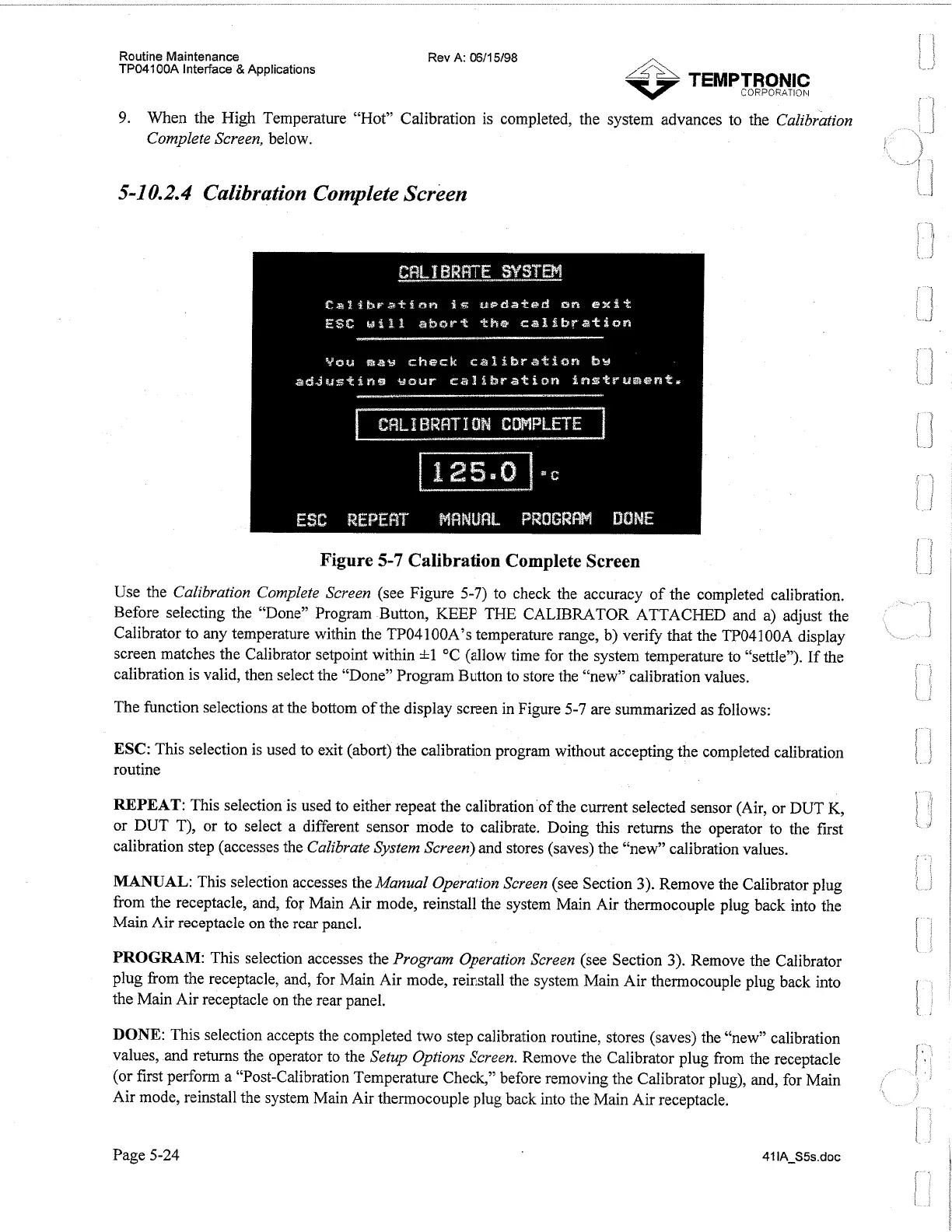

Calibration Complete Screen
Figure
5-7
Calibration Complete Screen
Use the
Calibration Complete Screen
(see Figure 5-7) to check the accuracy of the completed calibration.
Before selecting the "Done" Program Button, KEEP THE CALIBRATOR ATTACHED and a) adjust the
Calibrator to any temperature within the TP04100A's temperature range, b) verify that the TP04100A display
screen matches the Calibrator setpoint within hl
"C
(allow time for the system temperature to "settle"). If the
calibration is valid, then select the "Done" Program Button to store the "new" calibration values.
The function selections at the bottom of the display screen in Figure 5-7 are summarized as follows:
ESC:
This selection is used to exit (abort) the calibration program without accepting the completed calibration
routine
REPEAT: This selection is used to either repeat the calibration of the current selected sensor (Air, or DUT K,
or DUT T), or to select a different sensor mode to calibrate. Doing this returns the operator to the first
calibration step (accesses the
Calibrate System Screen)
and stores (saves) the "new" calibration values.
MANUAL: This selection accesses the
Manual Operation Screen
(see Section 3). Remove the Calibrator plug
from the receptacle, and, for Main Air mode, reinstall the system Main Air thermocouple plug back into the
Main Air receptacle on the rear panel.
PROGRAM: This selection accesses the
Program Operation Screen
(see Section 3). Remove the Calibrator
plug from the receptacle, and, for Main Air mode, reinstall the system Main Air thermocouple plug back into
the Main Air receptacle on the rear panel.
DONE: This selection accepts the completed two step calibration routine, stores (saves) the "new" calibration
values, and returns the operator to the
Setup Options Screen.
Remove the Calibrator plug from the receptacle
(or first perform a "Post-Calibration Temperature Check," before removing the Calibrator plug), and, for Main
Air mode, reinstall the system Main Air thermocouple plug back into the Main Air receptacle.
Page 5-24
41
IA-S5s.doc
