Preparation for Use
TP04100A
Interface
&
Applications
2-4 Introduction
This section contains 1) instructions for unpacking, placement, and assembly of the Model TP04100A
Themostream System, 2) interfacing the system to
-
(ac) power and compressed air service, and 3) how to
prepare the Device Under Test (DUT) test fixture site for optimum temperature control, and includes
recommendations for proper use of thermocouples.
2-5 Receipt of Shipment
Your Model TP04100A Themostream System is shipped to you in one packing carton (see Figure 2-1). The
packaged system can be easily transported at your location
by
two people. Overall shipping size of the
packaged system is 20 inches (50.8 cm) deep by 33.5 inches (85.1 cm) wide by 29.5 inches (74.9 cm) high.
Overall shipping weight is approximately 78 pounds (35.5 kilograms).
All items purchased are included inside the packing carton. When received, the carton should be examined
for any signs of mishandling or damage during shipment.

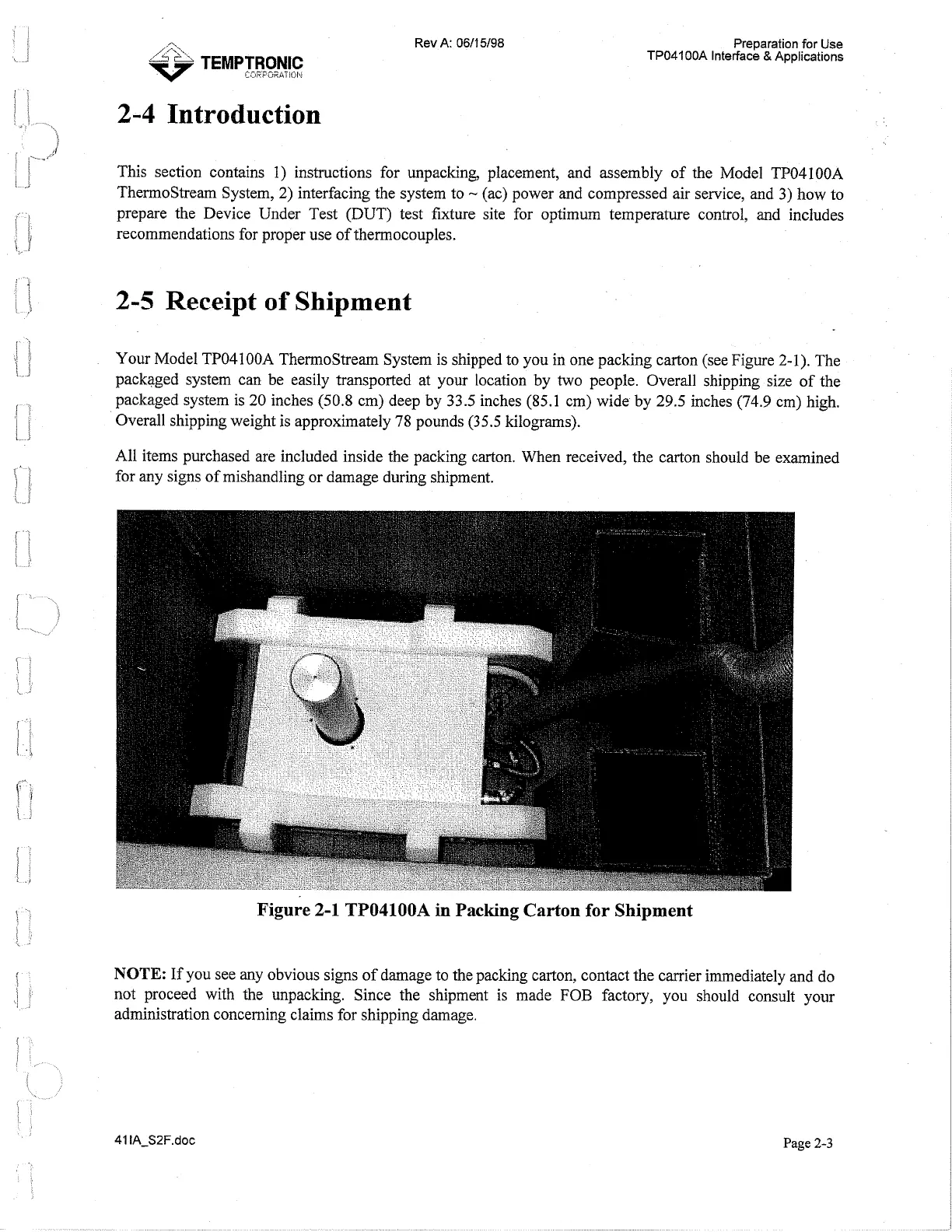

Figure 2-1 TP04100A in Packing Carton for Shipment
NOTE:
If you see any obvious signs of damage to the packing carton, contact the carrier immediately and do
not proceed with the unpacking. Since the shipment is made FOB factory, you should consult your
administration concerning claims for shipping damage.
