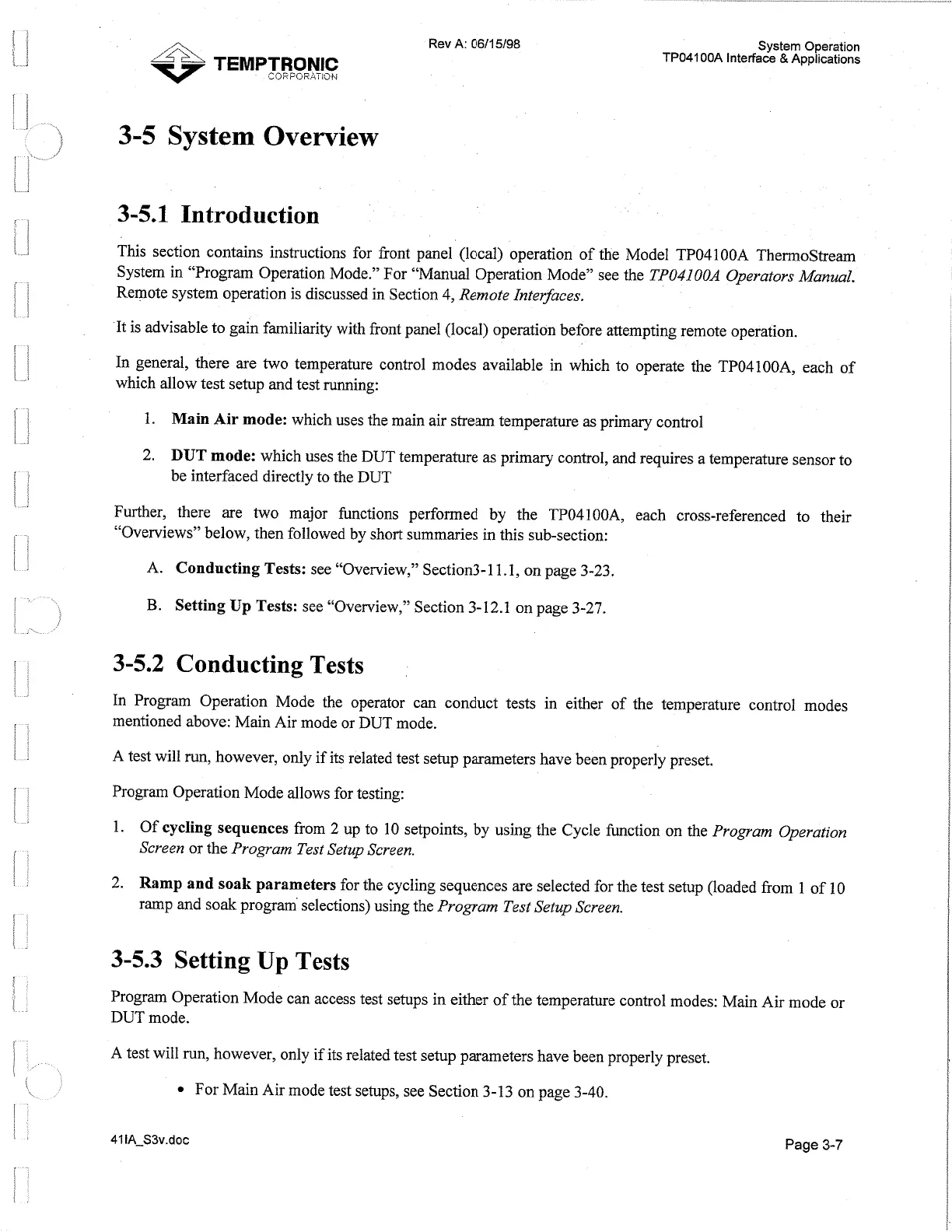

Rev
A: 0611
5/98
System Operation
TP04100A
Interface
&
Applications
3-5
System
Overview
3-5.1 Introduction
This section contains instructions for fi-ont panel (local) operation of the Model TP04100A ThermoStream
System in "Program Operation Mode." For "Manual Operation Mode" see the
TP04100A Operators Manual.
Remote system operation is discussed in Section 4,
Remote Interfaces.
It is advisable to gain familiarity with front panel (local) operation before attempting remote operation.
In general, there are two temperature control modes available in which to operate the TP04100A, each of
which allow test setup and test running:
1.
Main Air mode:
which uses the main air stream temperature as primary control
2.
DUT mode:
which uses the DUT temperature
as
primary control, and requires a temperature sensor to
be interfaced directly to the DUT
Further, there are two major functions performed by the TP04100A, each cross-referenced to their
"Overviews" below, then followed by short summaries in this sub-section:
A.
Conducting Tests:
see "Overview," Section3-1 I.
I,
on page 3-23.
B.
Setting Up Tests:
see "Overview," Section 3-12.1 on page 3-27.
3-5.2 Conducting Tests
In Program Operation Mode the operator can conduct tests in either of the temperature control modes
mentioned above: Main Air mode or DUT mode.
A test will run, however, only if its related test setup parameters have been properly preset.
Program Operation Mode allows for testing:
1. Of
cycling sequences
from 2 up to 10 setpoints, by using the Cycle function on the
Program Operation
Screen
or the
Program Test Setup Screen.
2.
Ramp and soak parameters
for the cycling sequences are selected for the test setup (loaded from 1 of 10
ramp and soak program' selections) using the
Program Test Setup Screen.
3-5.3 Setting
Up
Tests
Program Operation Mode can access test setups in either of the temperature control modes: Main Air mode or
DUT mode.
A
test will run, however, only if its related test setup parameters have been properly preset.
For Main Air mode test setups, see Section 3-13 on page 3-40.
Page
3-7
