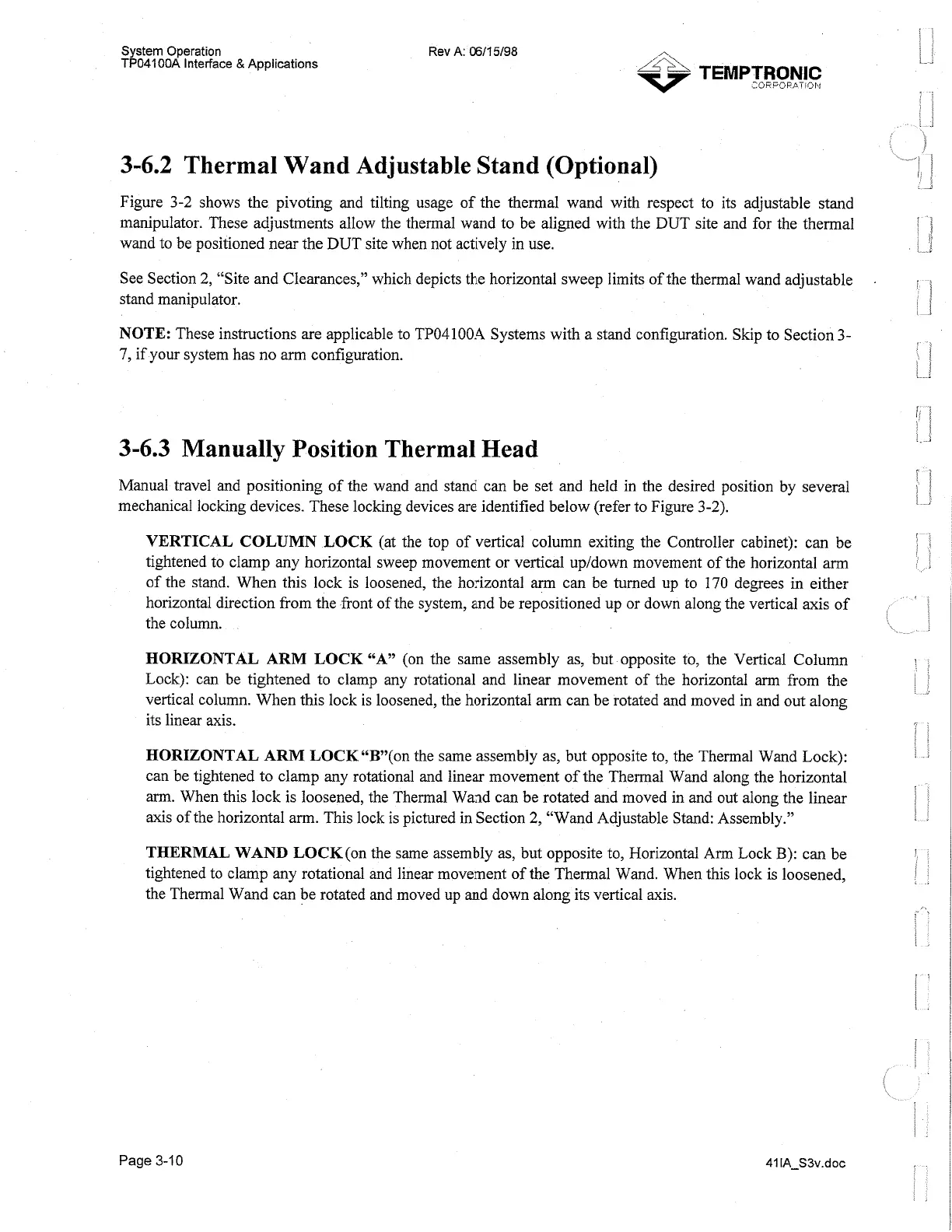

3-6.2 Thermal Wand Adjustable Stand (Optional)
Figure 3-2 shows the pivoting and tilting usage of the thermal wand with respect to its adjustable stand
manipulator. These adjustments allow the thermal wand to be aligned with the
DUT site and for the thermal
wand to be positioned near the
DUT site when not actively in use.
See Section 2, "Site and Clearances," which depicts the horizontal sweep limits of the thermal wand adjustable
stand manipulator.
NOTE: These instructions are applicable to TP04100A Systems with a stand configuration. Skip to Section 3-
7, if your system has no arm configuration.
3-6.3 Manually Position Thermal Head
Manual travel and positioning of the wand and stand can be set and held in the desired position by several
mechanical locking devices. These locking devices are identified below (refer to Figure 3-2).
VERTICAL COLUMN LOCK (at the top of vertical column exiting the Controller cabinet): can be
tightened to clamp any horizontal sweep movement or vertical upldown movement of the horizontal arm
of the stand. When this lock is loosened, the horizontal
arm can be turned up to 170 degrees in either
horizontal direction from the front of the system, and be repositioned up or down along the vertical axis of
the column.
HORIZONTAL ARM LOCK "A" (on the same assembly as, but opposite to, the Vertical Column
Lock): can be tightened to clamp any rotational and linear movement of the horizontal arm from the
vertical column. When this lock is loosened, the horizontal
arm can be rotated and moved in and out along
its linear axis.
HORIZONTAL ARM LOCK "BV(on the same assembly as, but opposite to, the Thermal Wand Lock):
can be tightened to clamp any rotational and linear movement of the Thermal Wand along the horizontal
arm. When this lock is loosened, the Thermal Wand can be rotated and moved in and out along the linear
axis of the horizontal arm. This lock is pictured in Section
2, "Wand Adjustable Stand: Assembly."
THERMAL WAND LOCK(on the same assembly as, but opposite to, Horizontal Arm Lock B): can be
tightened to clamp any rotational and linear movement of the Thermal Wand. When this lock is loosened,
the Thermal Wand can be rotated and moved up and down along its vertical axis.
