Temptronic ThermoStream TP04100A - Dejne Parameters (Air Mode. Test Setup); Figure 3-14 Define Parameters

Rev A: 0611 5/98
System Operation
TP04100A Interface
& Applications
8
I,
\
j

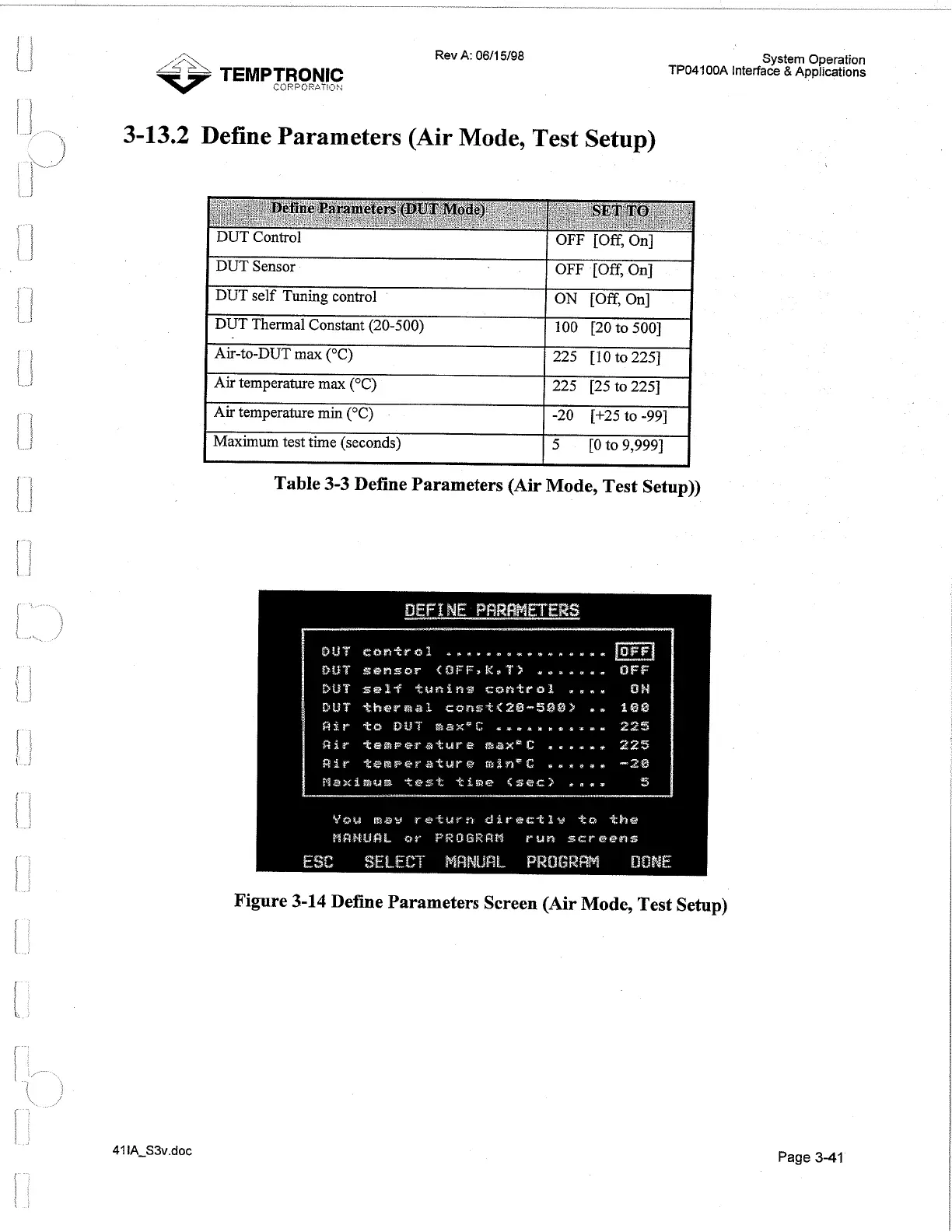

3-13.2 Define Parameters (Air Mode, Test Setup)
DUT Sensor
DUT self Tuning control
OFF [Off, On]
ON [Off, On]
DUT Thermal Constant (20-500)
Air-to-DUT max ("C)
Air temperature max ("C)
Air temperature min (OC)
Figure 3-14 Define Parameters Screen (Air Mode, Test Setup)
100 [20 to 5001
225 [I0 to 2251
225 [25 to 2251
-20 [+25 to -991
I
Page 3-41
Maximum test time (seconds)
5 [0 to 9,9991
Table 3-3 Define Parameters (Air Mode, Test Setup))
