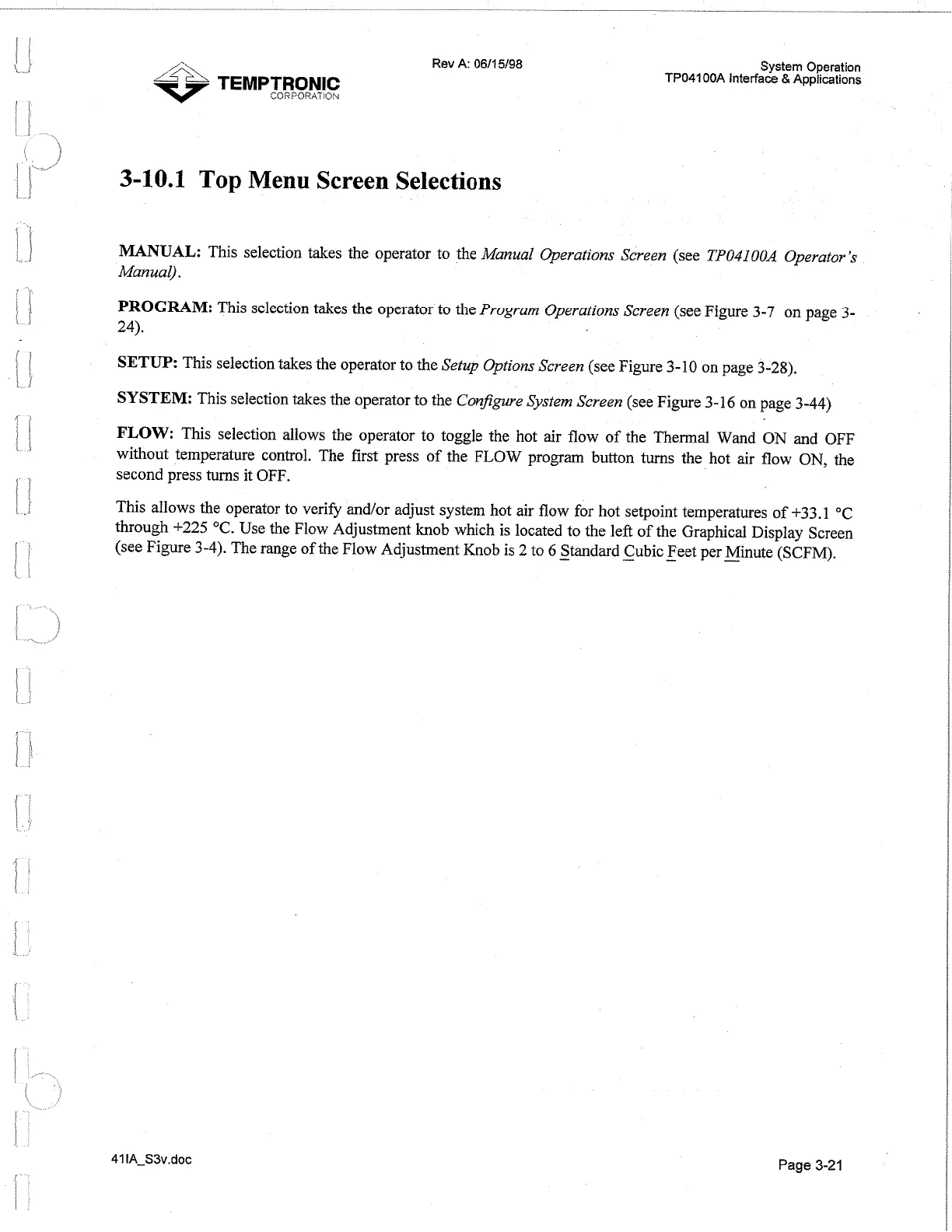

Rev A: 0611
5/98
System Operation
TP04100A Interface
&
Applications
3-10.1
Top Menu
Screen
Selections
MANUAL:
This selection takes the operator to the
Manual Operations Screen
(see
TP04100A
Operator's
Manual).
PROGRAM:
This selection takes the operator to the
Program Operations Screen
(see Figure 3-7 on page
3-
24).
SETUP:
This selection takes the operator to the
Setup Options Screen
(see Figure
3-
10
on page 3-28).
SYSTEM:
This selection takes the operator to the
ConJgure System Screen
(see Figure 3-16 on page 3-44)
FLOW:
This selection allows the operator to toggle the hot air flow of the Thermal Wand ON and OFF
without temperature control. The first press of the FLOW program button turns the hot air flow ON, the
second press turns it OFF.
This allows the operator to verify and/or adjust system hot air flow for hot setpoint temperatures of +33.1
"C
through +225
"C.
Use the Flow Adjustment knob which is located to the left of the Graphical Display Screen
(see Figure 3-4). The range of the Flow Adjustment Knob is 2 to
6
-
Standard
-
Feet per
-
Minute (SCFM).
Page
3-21
