System Operation
Rev
A: 0611
5/98
TP04100A Interface
&
Applications
3-13

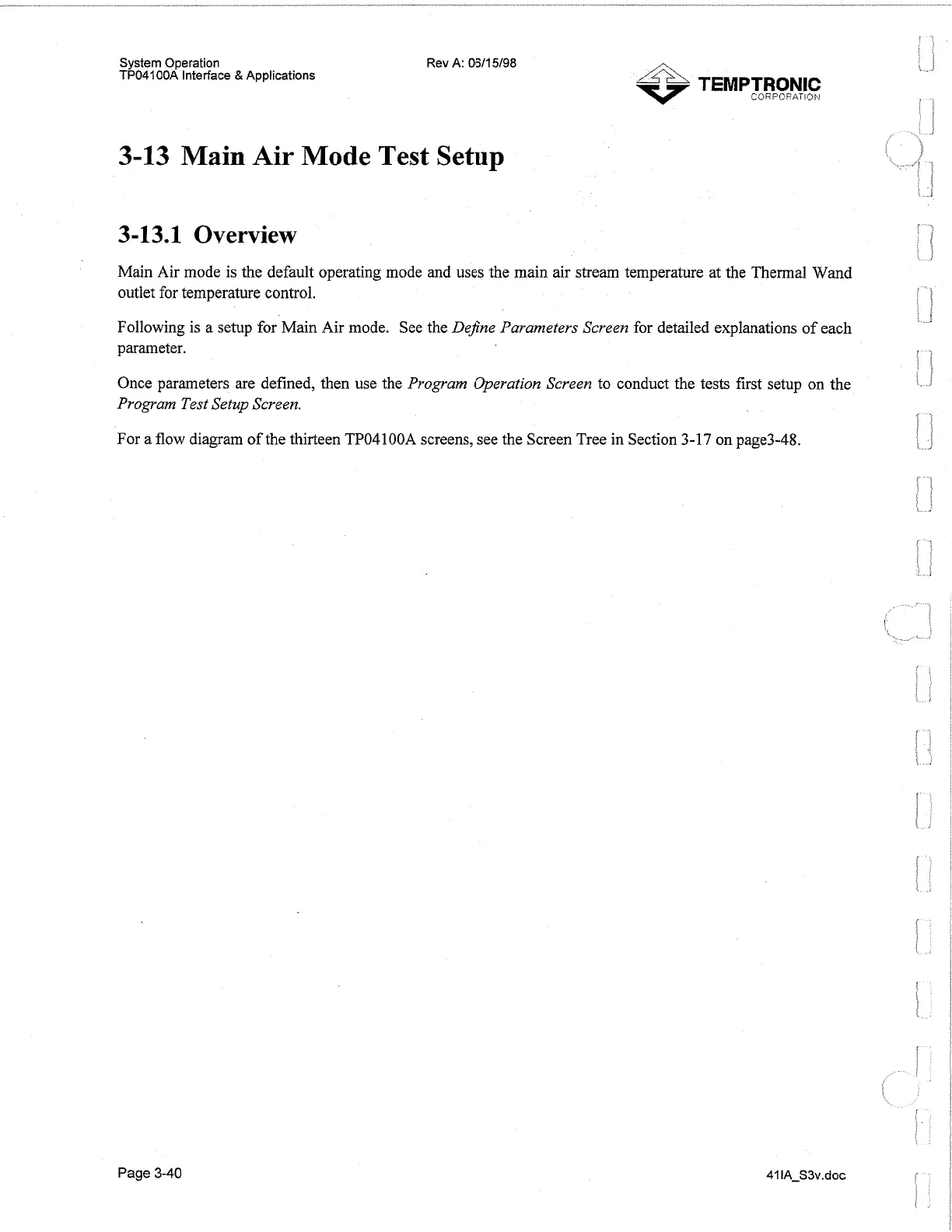

Main Air Mode Test
Setup
3-13.1
Overview
Main Air mode is the default operating mode and uses the main air stream temperature at the Thermal Wand
outlet for temperature control.
Following is
a
setup for Main Air mode. See the
DeJne Parameters Screen
for detailed explanations of each
parameter.
Once parameters are defined, then use the
Program Operation Screen
to conduct the tests first setup on the
Program Test Setup Screen.
For a flow diagram of the thirteen TP04100A screens, see the Screen Tree in Section
3-17
on page3-48.
Page
3-40
