Temptronic ThermoStream TP04100A Interface & Applications Manual

,45\.
TEMPTRONIC
CORPORATION
Rev A: 0611 5/98
Remote Interfaces
TP04100A Interface
& Applications

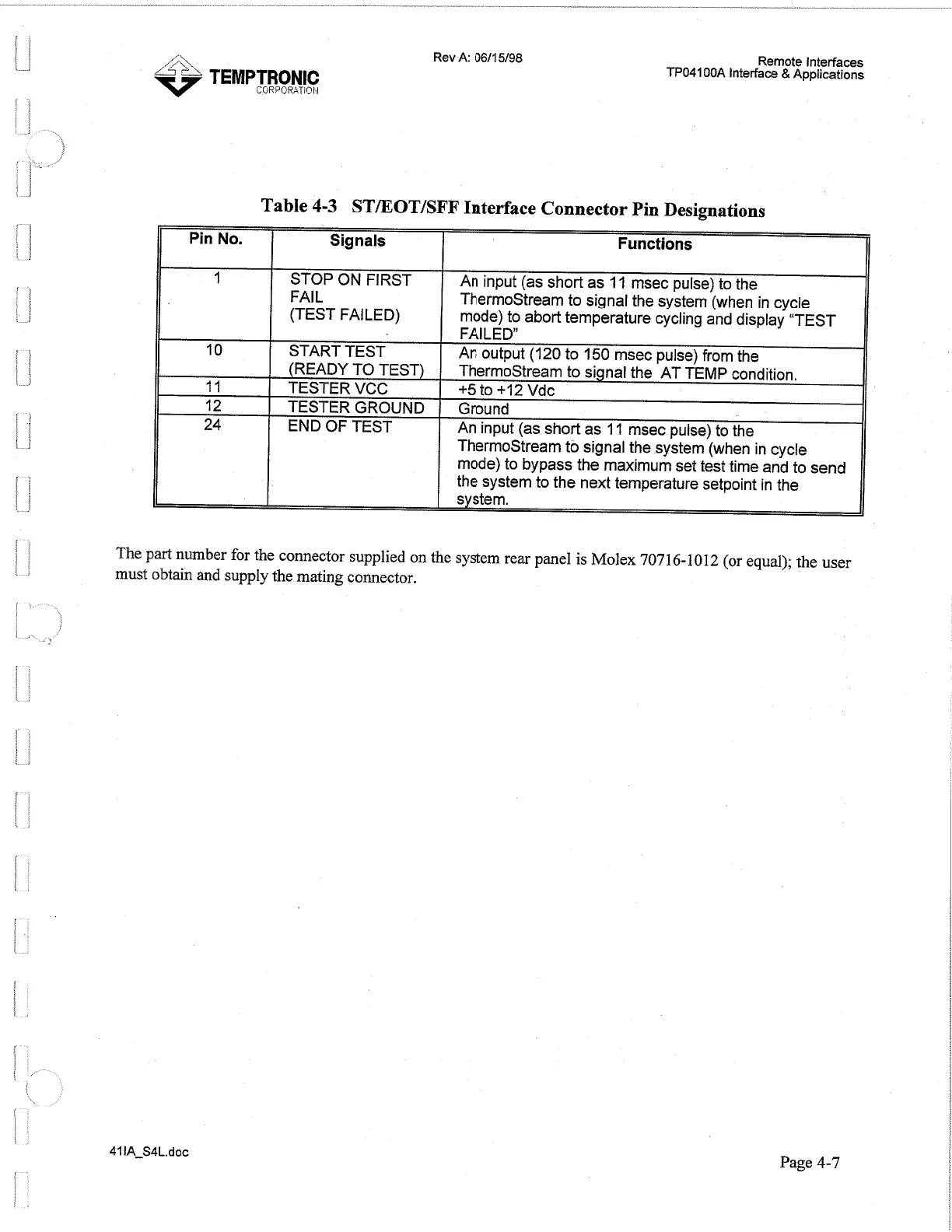

Table 4-3
ST/EOT/SFF Interface Connector Pin Designations
Pin No.
1
The part number for the connector supplied on the system rear panel is Molex 70716-1012 (or equal); the user
must obtain and supply the mating connector.
Signals
10
11
12
24
Page 4-7
Functions
STOP ON FIRST
FA1
L
(TEST FAILED)
An input (as short as 11 msec pulse) to the
ThermoStream to signal the system (when in cycle
mode) to abort temperature cycling and display "TEST
START TEST
(READY TO TEST)
TESTER
VCC
TESTER GROUND
END OF TEST
- -
FAILED"
An output (120 to 150 msec pulse) from the
ThermoStream to signal the AT TEMP condition.
+5 to +I2 Vdc
Ground
An input (as short as 11 msec pulse) to the
ThermoStream to signal the system (when in cycle
mode) to bypass the maximum set test time and to send
the system to the next temperature setpoint in the
