Routine Maintenance
TP04100A Interface
&
Applications
Rev A: 0611
5/98
CORPORATION
5-10.2
Calibrate
System

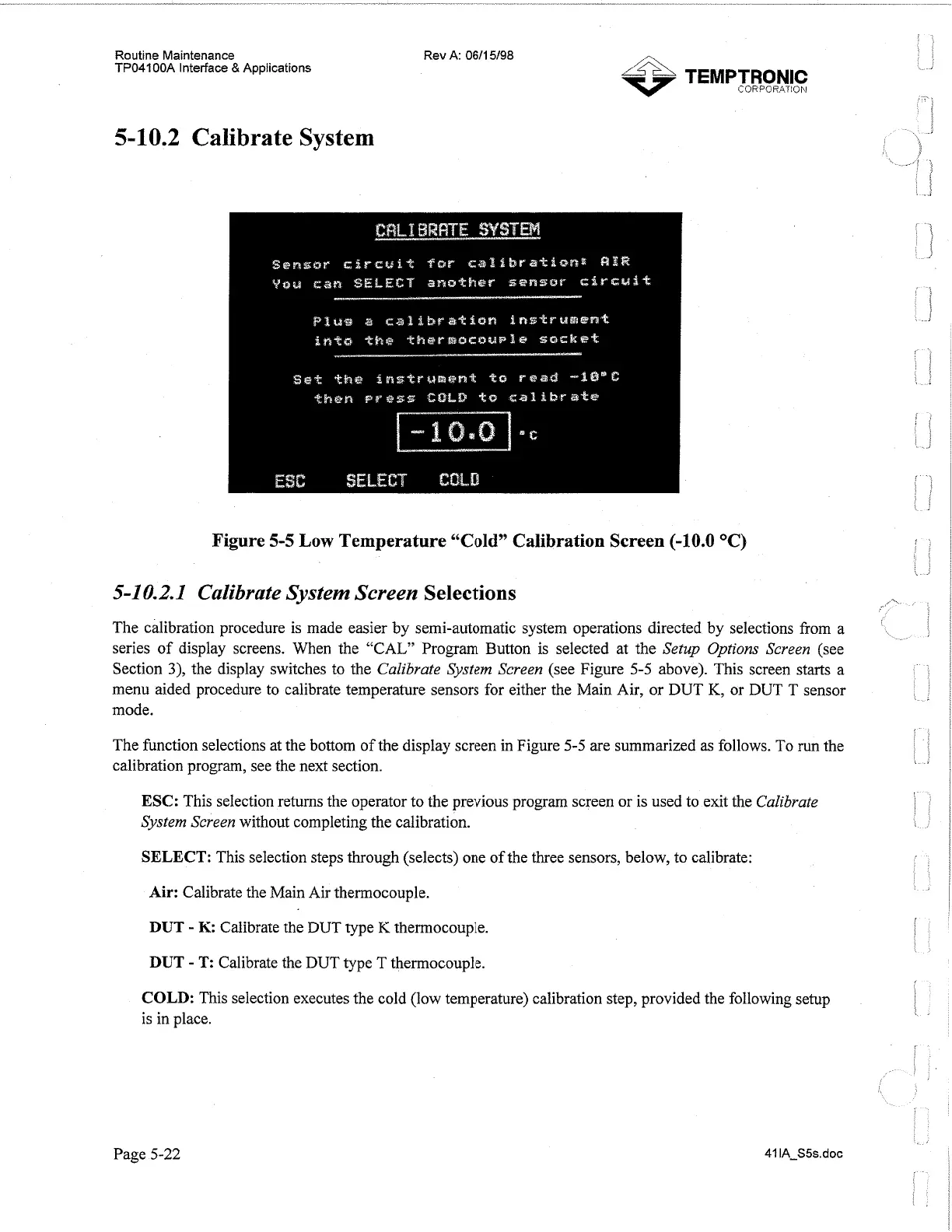

Figure
5-5
Low
Temperature
"Cold"
Calibration Screen
(-10.0
OC)
5-1
0.2.1
Calibrate System Screen
Selections
The calibration procedure is made easier by semi-automatic system operations directed by selections from a
series of display screens. When the "CAL" Program Button is selected at the
Setup Options Screen
(see
Section
3),
the display switches to the
Calibrate System Screen
(see Figure 5-5 above). This screen starts a
menu aided procedure to calibrate temperature sensors for either the Main Air, or DUT K, or DUT T sensor
I
mode.
The function selections at the bottom of the display screen in Figure 5-5 are summarized as follows. To
run
the
I
calibration program, see the next section.
t
'
ESC:
This selection returns the operator to the previous program screen or is used to exit the
Calibrate
3
I
System Screen
without completing the calibration.
SELECT:
This selection steps through (selects) one of the three sensors, below, to calibrate:
Air:
Calibrate the Main Air thermocouple.
DUT
-
K:
Calibrate the DUT type K thermocouple.
DUT
-
T:
Calibrate the DUT type T thermocouple.
COLD:
This selection executes the cold (low temperature) calibration step, provided the following setup
,
is in place.
Page 5-22
