General Data
TP04100A Interface
&
Applications
1-4
Introduction
Information in this manual supports the installation and operation of the Model TP04100A ThermoStream
System (see Figure
1-1).
This system is a programmable temperature controlling airstream system for testing and characterizing
electronic devices at various temperatures. An internal microcomputer controls the system, permitting either
local or remote operation.
The TP04100A display screen shows the active temperature, the temperature setpoints, soak times, ramp rates
up and down, how many cycles are being performed and the Device Under Test (DUT) sensor sel-ection.
Additional program screens facilitate programming of Test Setups, system configuration, define the limits of
operation, and calibrate the system.
In
addition, complete system operation status and any error messages are displayed. All data is shown in real-
time alphanumeric format, keeping the user fully informed at all times.

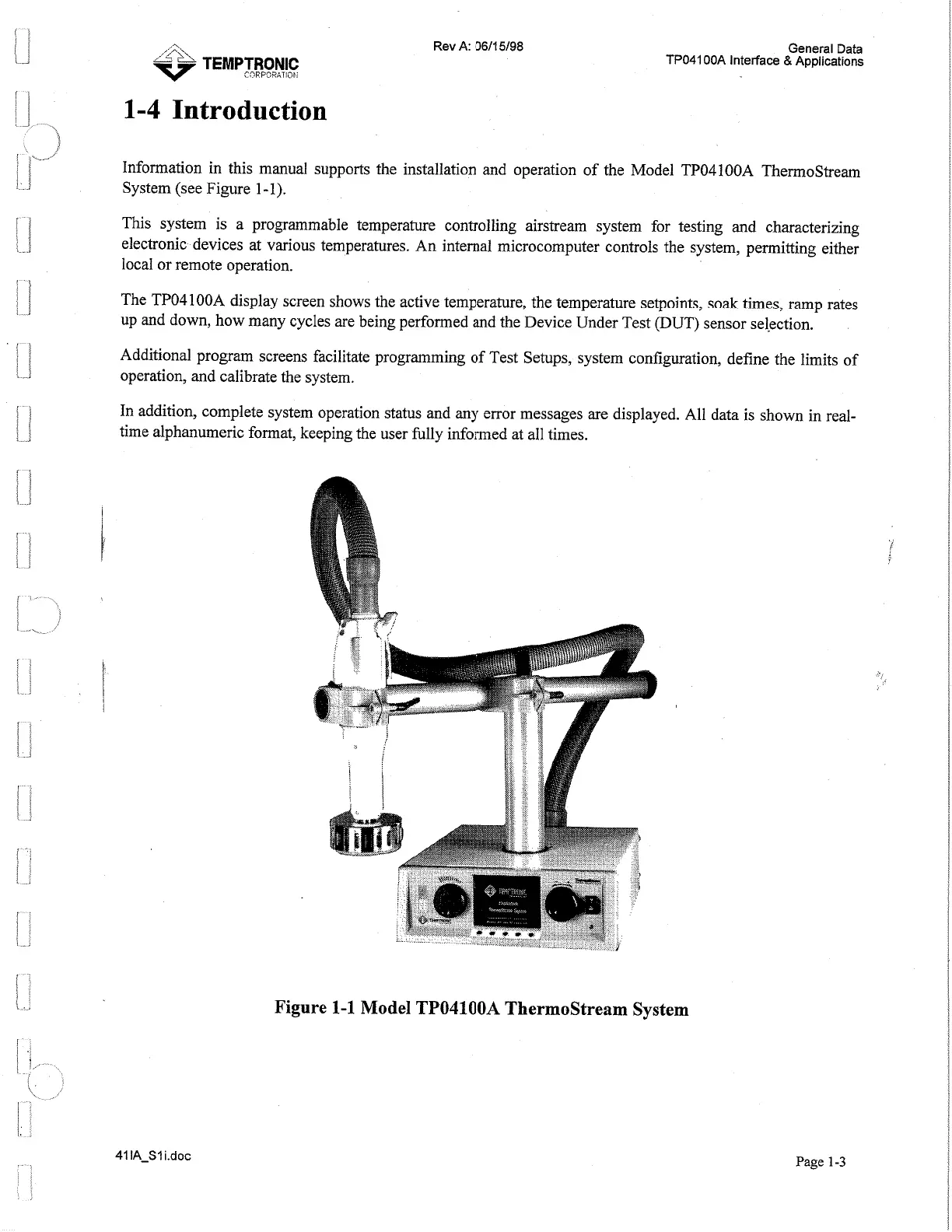

Figure
1-1
Model TP04100A ThermoStream System
Page
1-3
