Temptronic ThermoStream TP04100A Interface & Applications Manual

./.' ,
TEMPTRONIC
COR?OR4TION
Rev A: 0611 5/98
General Data
TP04100A Interface & Applications

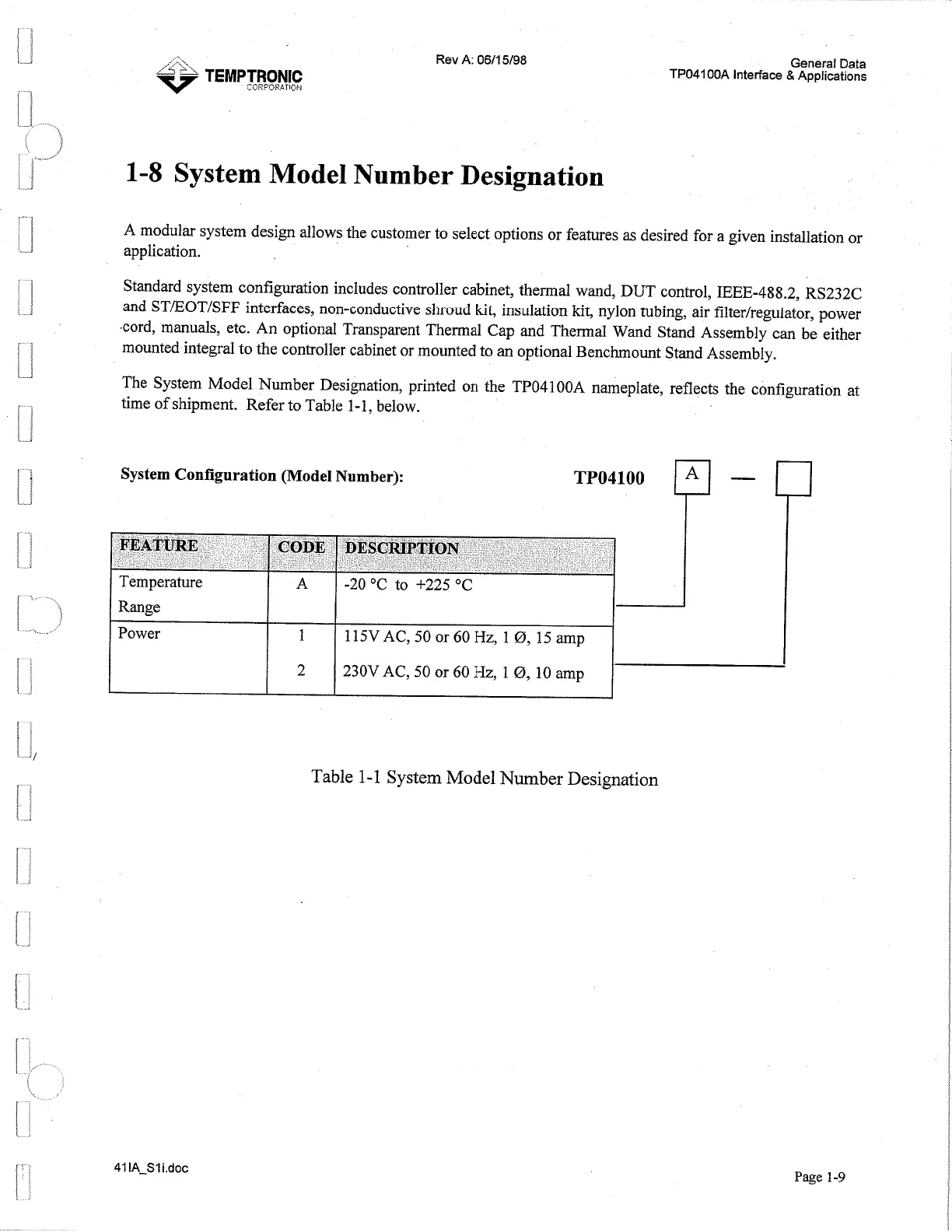

1-8 System Model Number Designation
A modular system design allows the customer to select options or features as desired for a given installation or
application.
Standard system configuration includes controller cabinet, thermal wand,
DUT control, IEEE-488.2, RS232C
and STEOT/SFF interfaces, non-conductive shroud kit, insulation kit, nylon tubing, air filterlregulator, power
-cord, manuals, etc. An optional Transparent Thermal Cap and Thermal Wand Stand Assembly can be either
mounted integral to the controller cabinet or mounted to an optional Benchmount Stand Assembly.
The System Model Number Designation, printed on the TP04100A nameplate, reflects the configuration at
time of shipment. Refer to Table 1-1, below.
System Configuration (Model Number):
Temperature A -20 OC to +225 "C
I1
FEATURE
Power
CODE
Table 1-1 System Model Number Designation
DESCRIPTION
1
2
Page 1-9
115VAC,50or60Hz,10,15amp
230V AC, 50 or 60 Hz, 1 0, 10 amp
