Rev A: 0611 5/98 Preparation for Use
TP04100A Interface & Applicat~ons
' TEMPTRONIC
CCRPCIRATIGN

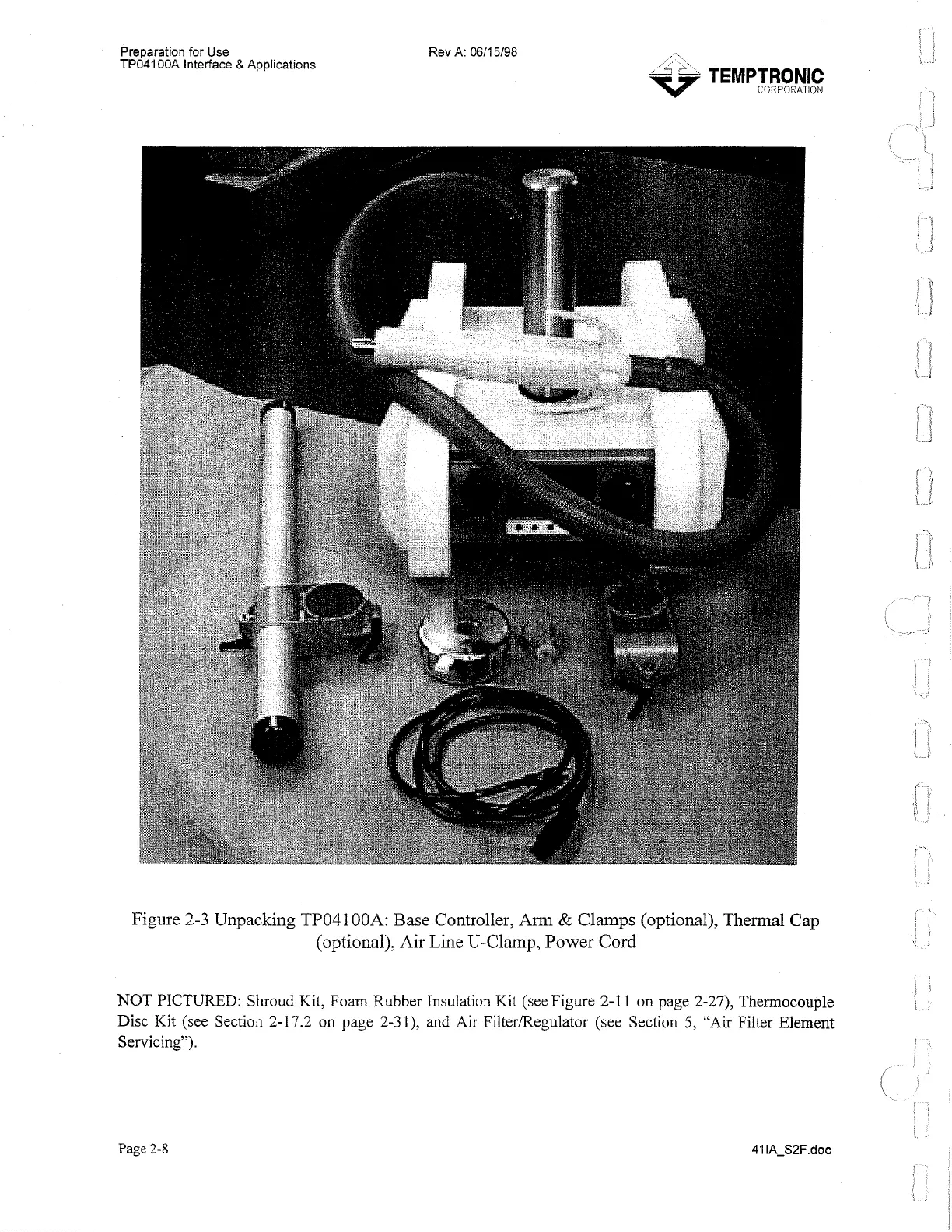

Figure 2-3 Unpacking TP04100A: Base Controller, Arm & Clamps (optional), Thermal Cap
(optional), Air Line U-Clamp, Power Cord
NOT PICTURED: Shroud Kit, Foam Rubber Insulation Kit (see Figure 2-1 1 on page 2-27), Thermocouple
Disc
Kit (see Section 2-17.2 on page 2-3 I), and Air Filter/Regulator (see Section 5, "Air Filter Element
Servicing").
Page 2-8
