Tenda V300 User Manual

111
(4) Log in to the modem router using the new LAN IP address 192.168.1.10. (If you cannot
log in to the web UI of the modem router with the new LAN IP address, disable the adapter
of your computer, and then enable it again to obtain an IP address again.)

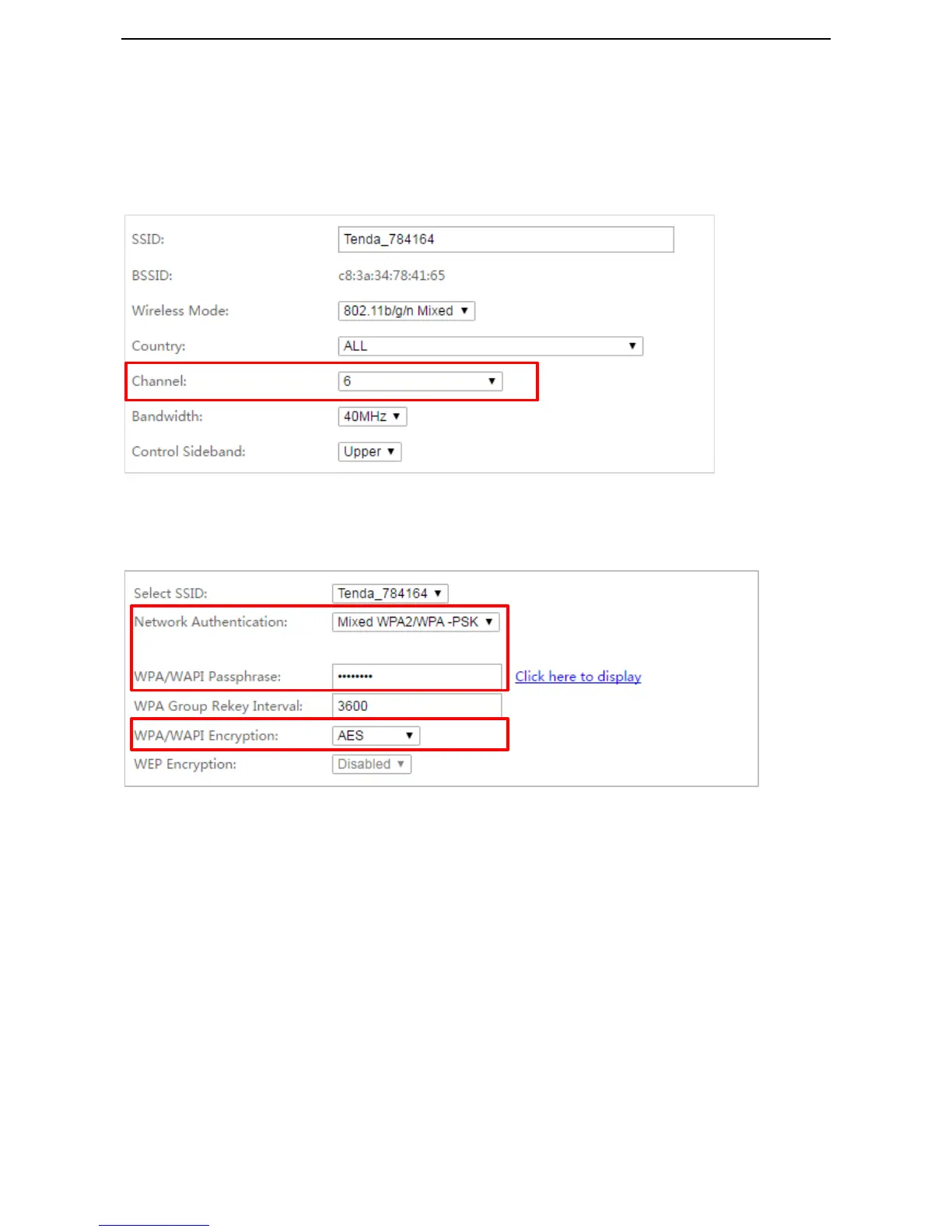

(5) Choose Advanced > Wireless > Basic to enter the configuration page.
(6) Set the Channel to 6.
(7) Click Apply/Save on the bottom of this page.
(8) Choose Advanced > Wireless > Security to enter the configuration page.
(9) Set the Network Authentication, WPA/WAPI Passphrase, and WPA/WAPI Encryption
to Mixed WPA2/WPA-PSK, 12345678, and AES respectively.
(10) Click Apply/Save on the bottom of this page.
Configure the access point function.
(11) Choose Advanced > Wireless > Wireless Bridge to enter the configuration page.
(12) Set the AP Mode to Access Point.
(13) Set the Bridge Restrict to Enabled (Scan).
(14) Select the SSID (wireless network name) of the upstream router which is
Tenda_XXXXXX in this example.
(15) Click Apply/Save.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
