Crane Working Position without Outriggers
1.

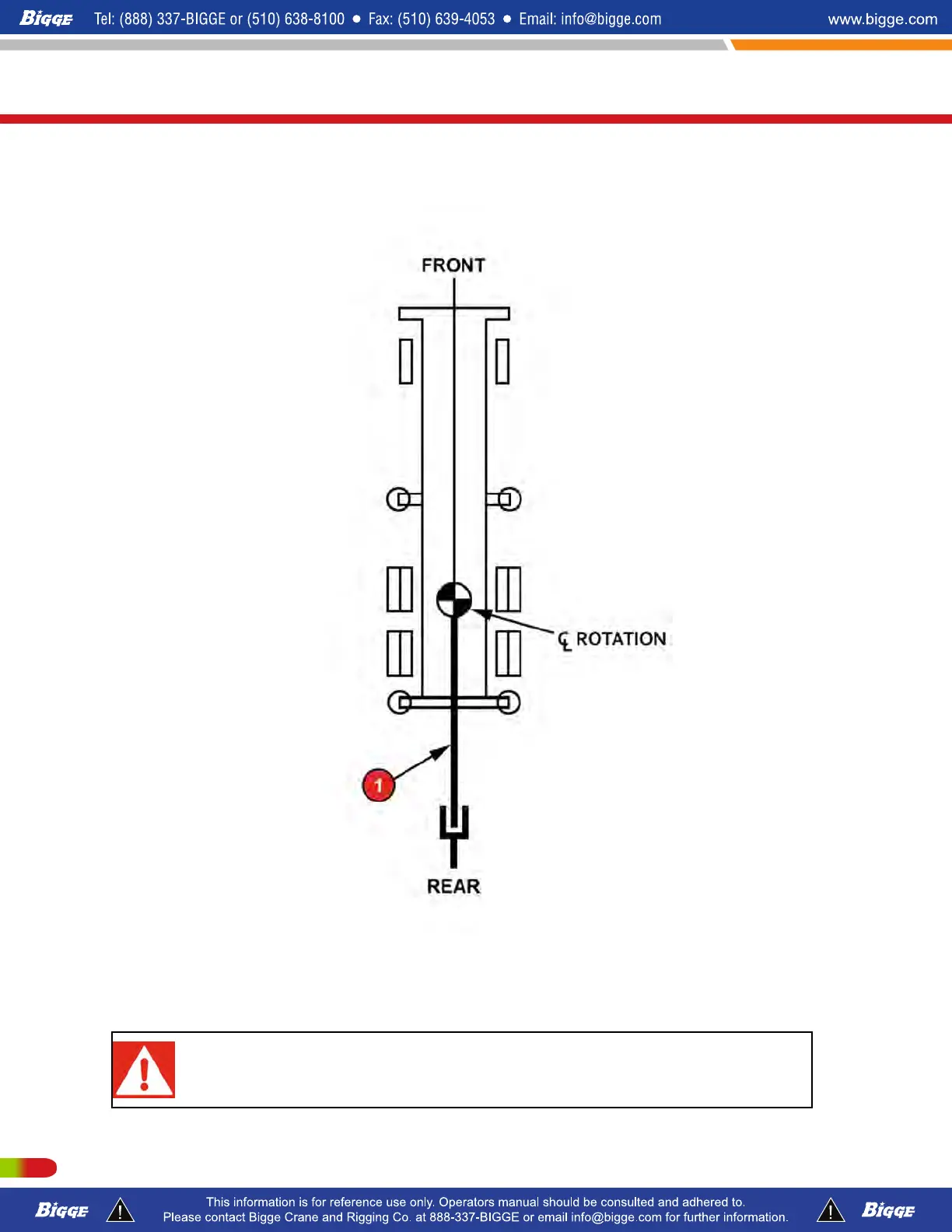

Boom over rear working area
Cut - Offs: Rated chart values of less than approximately 1,000 lbs for on outriggers and side-
stow jib are not shown. This is done because the effects of wind, pendulum action, jerking,
etc., can cause a tip over.
Extending the boom or boom and jib combination into unrated areas of the chart
can cause tip over. Do not operate at a longer radius than those listed on the
applicable load rating charts as tipping can occur without a load on the hook.
T300-1_T500-1_T780
Operating Instructions
198 P/N 12261-683
REVISED: January 2015
