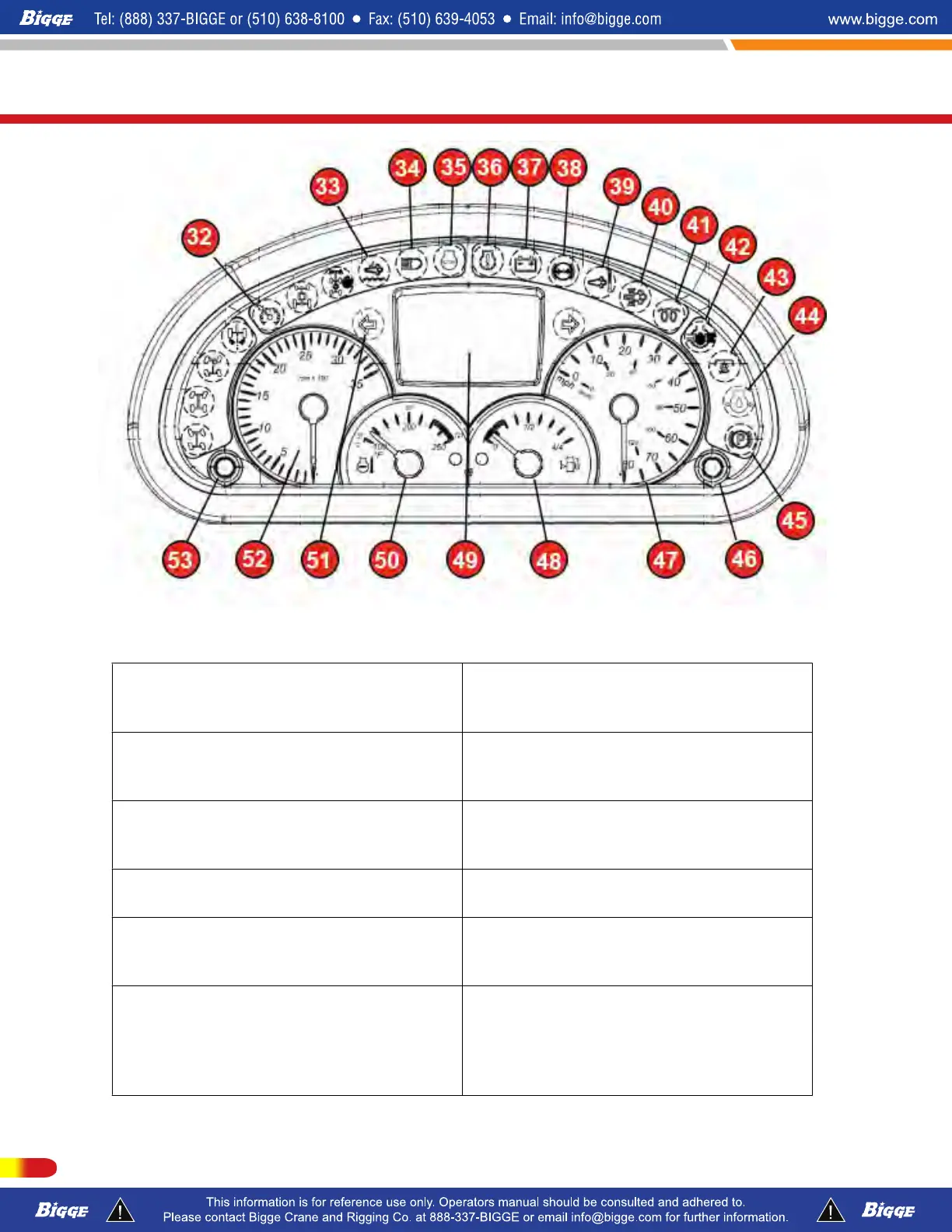

Carrier Instruments & Warning Lights
32. CRUISE-Blue colored Warning Light
"ON" when cruise control is set.
44. ENGINE OIL PRESSURE-Red colored
Warning Light "ON" if less than 80 Kpa
(about 12 PSI).
33. DEF-Red colored Warnling Light "ON"
when Diesel Exhaust Fluid (Urea) tank fluid
level is low.
45. PARK LAMP-Red colored Warning Light
"ON".
34. BRIGHT-Blue colored Warning Light
"ON" when HI beam headlamps are "ON".
46. SUB MENU NAVIGATION BUTTON-
LCD Display screen sub menu select/
deselect button. (See UNIDECK Manual).
35. ENGINE STOP-Red colored Warning
Light "ON" when Engine should be shutdown.
47. SPEEEDOMETER GUAGE-MPH (0-80) &
Kph (0-120).
36. ENGINE CHECK-Amber colored
Warning Light "ON".
48. FUEL LEVEL GUAGE-Guage and Amber
colored Warning Light "ON" with low fuel
level.
37. BATTERY CHARGING CONDITION-Red
colored Warning Light "ON" if less than 12
volts.
49. LCD DISPLAY -Readouts: Terex Logo,
Clock, Total Engine Machine Hours, Engine
Oil Pressure, Total Odometer, Partial
Odometer, Languages menu, Engine Fault.
(See UNIDECK Operation & Instructions).
T300-1_T500-1_T780
Description Of Machine and Controls
88 P/N 12261-683
REVISED: January 2015
