www.ti.com What is in the LightCrafter 4500 EVM?

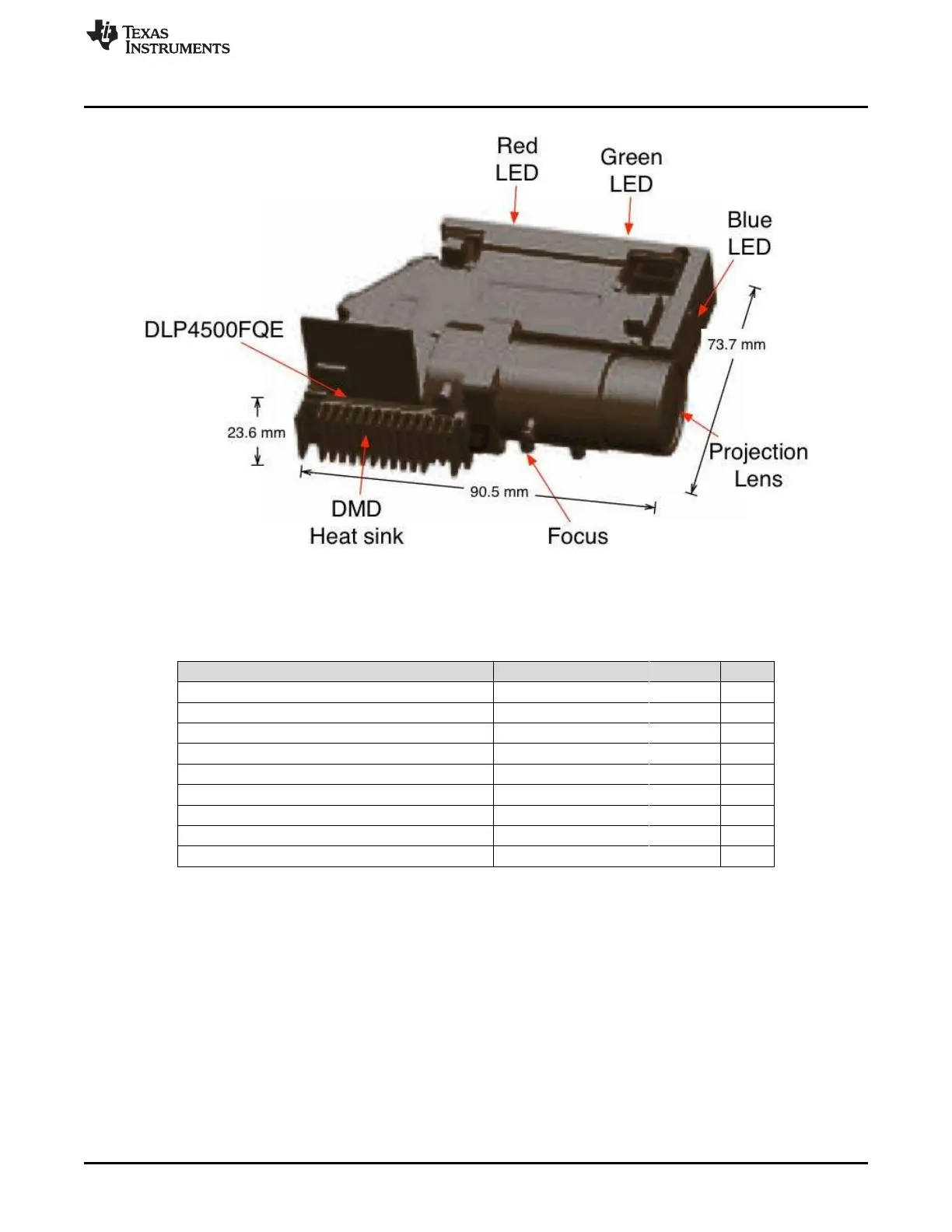

Figure 1-2. iView Light Engine
Table 1-1 lists the specifications of the light engine:
Table 1-1. DLP LightCrafter Light Engine Specifications
Parameter MIN TYP MAX UNIT
Brightness 150 lm
LED power consumption 15 W
Full-on full-off contrast 1000:1
Uniformity 80 90 %
F-number 2.1
Throw ratio 1.4
Offset 100 %
Focus range 0.5 1 2 m
Image diagonal size 16.7 32.8 65 inch
The light engine includes the DLP4500 0.45-inch DMD with 1039680 mirrors, each 7.6 µm, arranged in
912 columns by 1140 rows with the diamond pixel array geometry and configuration (see Figure 1-3 and
Figure 1-4). Due to the diamond pixel configuration, the array produces smooth diagonal lines, with jagged
vertical and horizontal lines, as shown in Figure 1-5. Two options exist to produce the vertical and
horizontal lines: use every row or column, or use every other row or column. When every row or column is
used, a more thick line is projected. When every other row or column is used, a more faint line is
projected.
