Texas Instruments DLP LightCrafter 4500 User Manual

PandaBoard 4500 www.ti.com

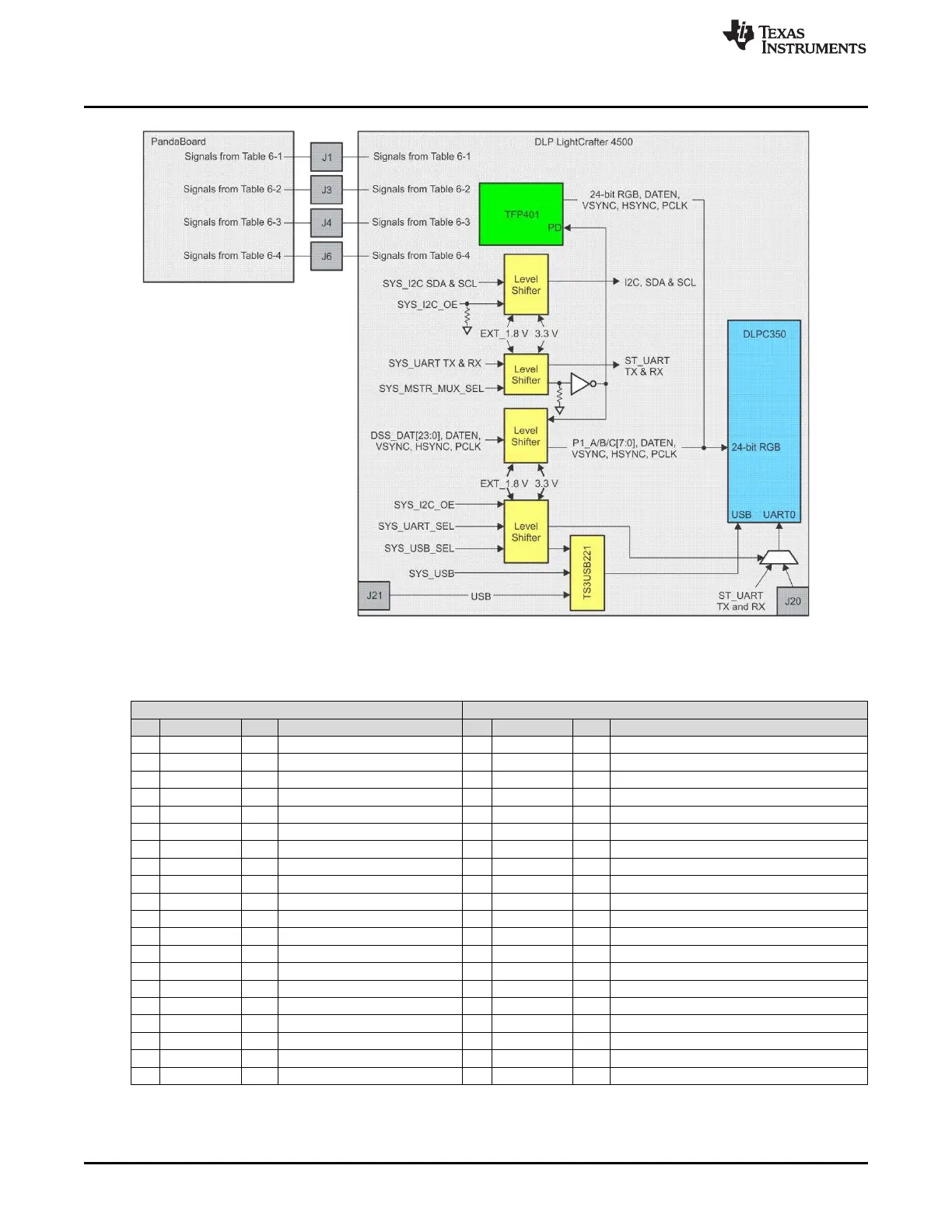

Figure 6-2. Block Diagram of the PandaBoard Interface
Table 6-1. J1 PandaBoard 4500 to DLP LightCrafter 4500 Interface
PandaBoard 4500 J1 DLP LightCrafter 4500 J1
Pin Signal I/O Description Pin Signal I/O Description
1 DCIN_JACK PWR 5 V supplied from DLP LightCrafter 4500 1 PP5P0V PWR 5 V supplied by TLV62130 (U28) of DLP LightCrafter 4500
2 DCIN_JACK PWR 5 V supplied from DLP LightCrafter 4500 2 PP5P0V PWR 5 V supplied by TLV62130 (U28) of DLP LightCrafter 4500
3 h_DSS_DAT1 O OMAP4 LCD pixel data bit 1 3 SYS_DATA01 I DLPC350 P1_A_3 level-shifted to 1.8 V
4 h_DSS_DAT0 O OMAP4 LCD pixel data bit 0 4 SYS_DATA00 I DLPC350 P1_A_2 level-shifted to 1.8 V
5 h_DSS_DAT3 O OMAP4 LCD pixel data bit 3 5 SYS_DATA03 I DLPC350 P1_A_5 level-shifted to 1.8 V
6 h_DSS_DAT2 O OMAP4 LCD pixel data bit 2 6 SYS_DATA02 I DLPC350 P1_A_4 level-shifted to 1.8 V
7 h_DSS_DAT5 O OMAP4 LCD pixel data bit 5 7 SYS_DATA05 I DLPC350 P1_A_7 level-shifted to 1.8 V
8 h_DSS_DAT4 O OMAP4 LCD pixel data bit 4 8 SYS_DATA04 I DLPC350 P1_A_6 level-shifted to 1.8 V
9 h_DSS_DAT12 O OMAP4 LCD pixel data bit 12 9 SYS_DATA12 I DLPC350 P1_B_6 level-shifted to 1.8 V
10 h_DSS_DAT10 O OMAP4 LCD pixel data bit 10 10 SYS_DATA010 I DLPC350 P1_B_4 level-shifted to 1.8 V
11 h_DSS_DAT23 O OMAP4 LCD pixel data bit 23 11 SYS_DATA23 I DLPC350 P1_C_9 level-shifted to 1.8 V
12 h_DSS_DAT14 O OMAP4 LCD pixel data bit 14 12 SYS_DATA14 I DLPC350 P1_B_8 level-shifted to 1.8 V
13 h_DSS_DAT19 O OMAP4 LCD pixel data bit 19 13 SYS_DATA19 I DLPC350 P1_C_5 level-shifted to 1.8 V
14 h_DSS_DAT22 O OMAP4 LCD pixel data bit 22 14 SYS_DATA22 I DLPC350 P1_C_8 level-shifted to 1.8 V
15 H_I2C2_SDA I/O OMAP4 I2C2 serial data 15 SYS_I2C1_SDA I/O DLPC350 I2C1_SDA level-shifted to 1.8 V
16 h_DSS_DAT11 O OMAP4 LCD pixel data bit 11 16 SYS_DATA11 I DLPC350 P1_B_5 level-shifted to 1.8 V
17 h_DSS_VSYNC O OMAP4 LCD vertical sync signal 17 SYS_VSYNC I DLPC350 P1_VSYNC level-shifted to 1.8 V
18 H_DPM_EMU2 I DPM_EMU2/GPIO_13 18 NC No connect
19 GND GND Ground bus 19 GND GND Ground bus
20 GND GND Ground bus 20 GND GND Ground bus
58
PandaBoard Interface DLPU011E–July 2013–Revised September 2015
Submit Documentation Feedback
Copyright © 2013–2015, Texas Instruments Incorporated
