DLP LightCrafter 4500 Jumpers www.ti.com

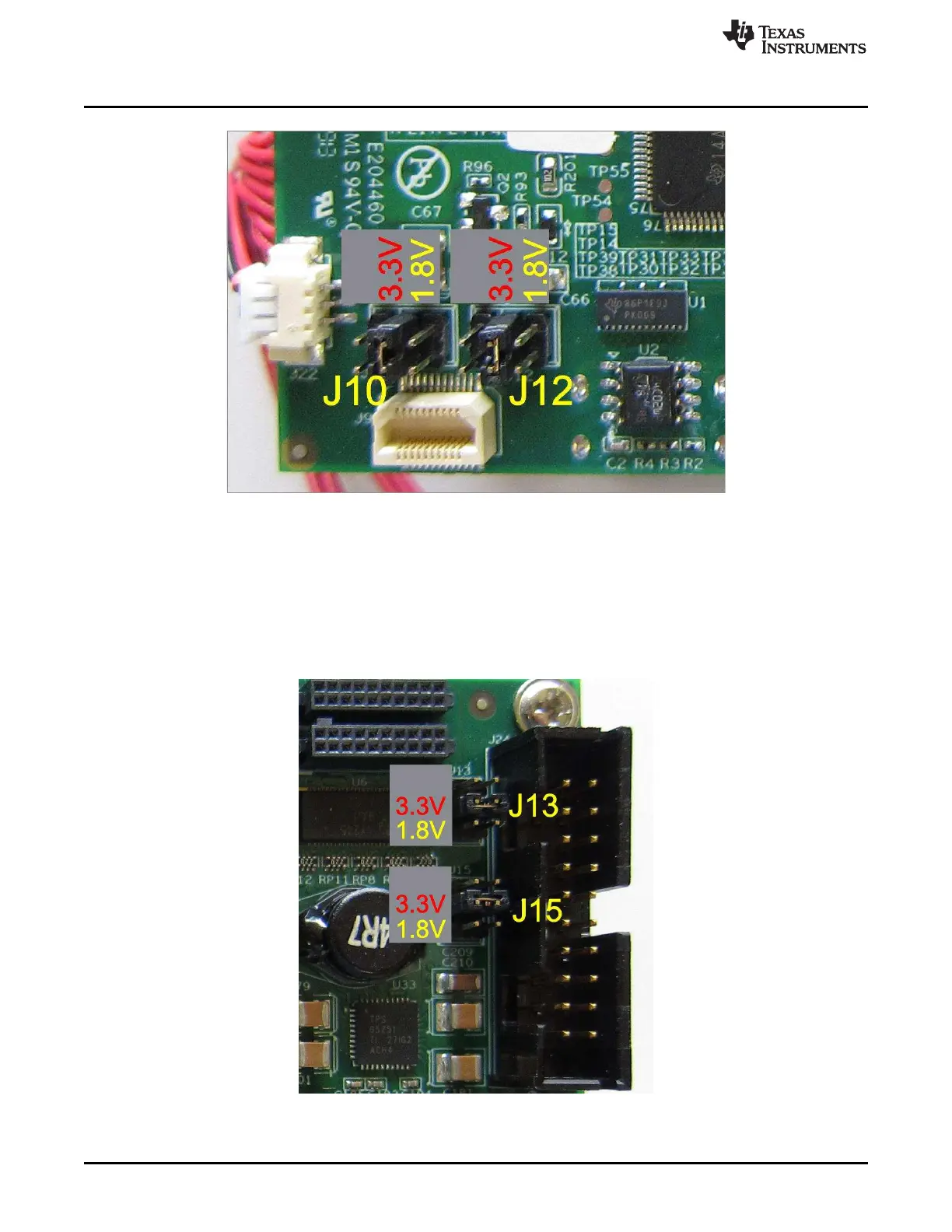

Figure 1-10. DLP LightCrafter 4500 J10 and J12 Voltage Jumpers
• J13: DLPC350 TRIG1_OUT voltage selection. See to Figure 1-11.
– Jump across pins 3 to 4 for 3.3 V
– Jump across pins 5 to 6 for 1.8 V
• J15: DLPC350 TRIG2_OUT voltage selection. See to Figure 1-11.
– Jump across pins 3 to 4 for 3.3 V
– Jump across pins 5 to 6 for 1.8 V
Figure 1-11. DLP LightCrafter 4500 J13 and J15 Voltage Jumpers
• J18: DLPC350 HOLD_IN_BOOT. Jump across this header to hold the DLPC350 in bootloader mode.
18
DLP LightCrafter 4500 Module Overview DLPU011E–July 2013–Revised September 2015
Submit Documentation Feedback
Copyright © 2013–2015, Texas Instruments Incorporated
