31 0
31 0
RTICLK
31 0
31 0
31 0
External
control
CAP event source 0
CAP event source 1
=
Up counter
Capture
up counter
Compare
up counter
Free-running counter
Capture
RTIFRCx
free-running counter
RTICAFRCx
OVLINTx
RTICPUCx
RTIUCx
RTICAUCx
To Compare
Unit
NTU0
NTU1
NTU2
NTU3
78
TMS570LS0714
SPNS226E –JUNE 2013–REVISED NOVEMBER 2016 www.ti.com
Submit Documentation Feedback
Product Folder Links: TMS570LS0714
System Information and Electrical Specifications Copyright © 2013–2016, Texas Instruments Incorporated
6.16 Real-Time Interrupt Module
The real-time interrupt (RTI) module provides timer functionality for operating systems and for
benchmarking code. The RTI module can incorporate several counters that define the time bases needed
for scheduling an operating system.
The timers also let you benchmark certain areas of code by reading the values of the counters at the
beginning and the end of the desired code range and calculating the difference between the values.
6.16.1 Features
The RTI module has the following features:
• Two independent 64-bit counter blocks
• Four configurable compares for generating operating system ticks or DMA requests. Each event can
be driven by either counter block 0 or counter block 1.
• Fast enabling/disabling of events
• Two timestamp (capture) functions for system or peripheral interrupts, one for each counter block
6.16.2 Block Diagrams

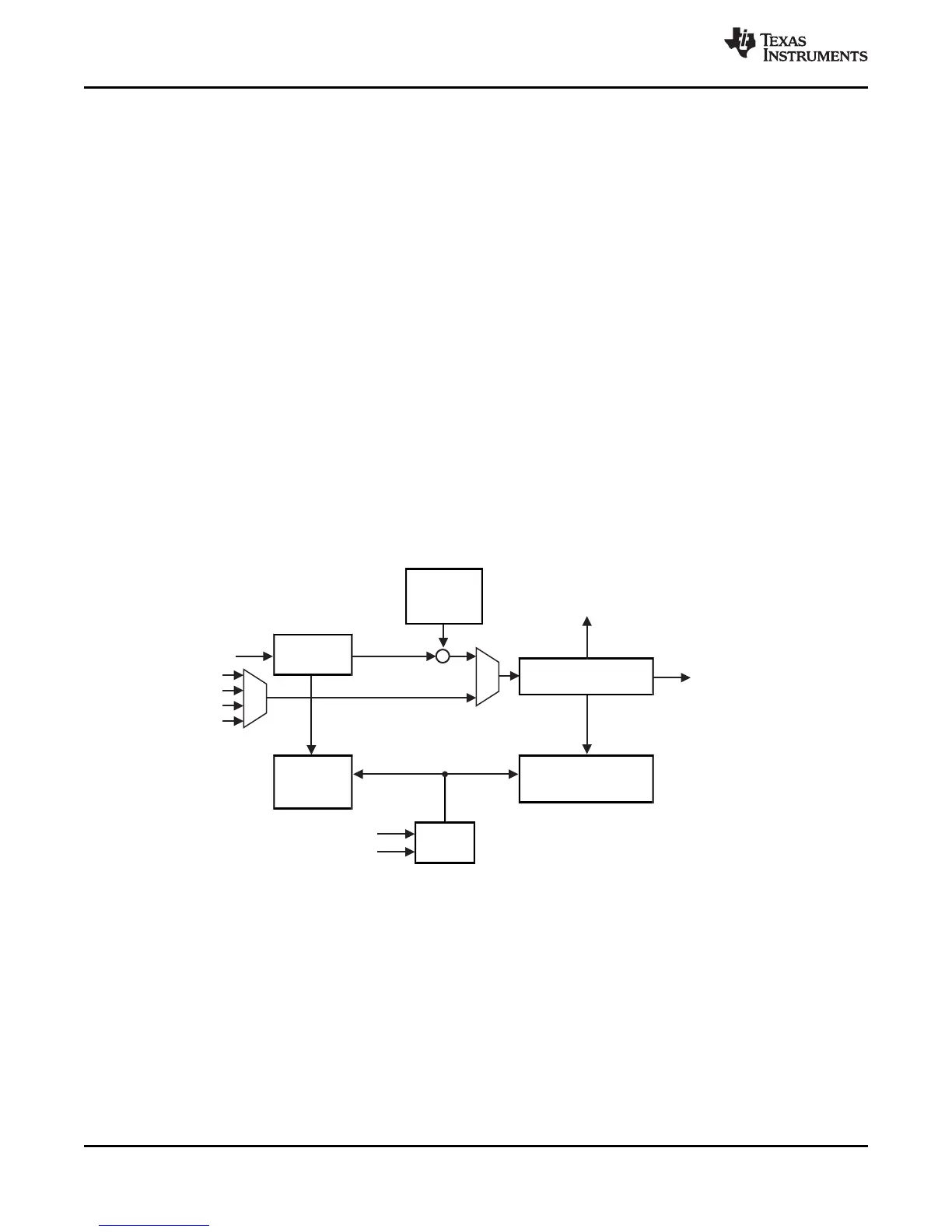

Figure 6-11 shows a high-level block diagram for one of the two 64-bit counter blocks inside the RTI
module. Both the counter blocks are identical except the Network Time Unit (NTUx) inputs are only
available as time-base inputs for the counter block 0. Figure 6-12 shows the compare unit block diagram
of the RTI module.
Figure 6-11. Counter Block Diagram

Texas Instruments TMS570LS0714 Specifications

General

Core	ARM Cortex-R4F
Clock Speed	80 MHz
RAM	64 KB
Operating Temperature	-40°C to 125°C
Operating Voltage	3.0 V to 3.6 V
Watchdog Timer	Yes
Communication Interfaces	CAN, SPI, UART
Package	LQFP
Safety Features	ECC
ADC	12-bit ADC

Summary

Device Overview

Features

Lists high-level features of the microcontroller, including CPU, memory, and peripherals.

Applications

Describes typical applications like EPS, Braking Systems, Automotive, Aerospace.

Description

Provides a detailed description of the device's architecture and capabilities.

Functional Block Diagram

Illustrates the device's internal structure and interconnects between modules.

Terminal Configuration and Functions

Pin Diagrams

Shows physical pin assignments for the PGE (144-pin) and PZ (100-pin) packages.

Signal Descriptions

Describes the function of each signal pin, including type and internal pullup/pulldown.

Pin Multiplexing

Explains how pins can be multiplexed for different functions, controlled by registers.

Buffer Type

Details output buffer drive strengths and selectable modes like low-EMI.

Specifications

Absolute Maximum Ratings

Defines voltage, current, and temperature limits beyond which damage may occur.

Recommended Operating Conditions

Specifies voltage, temperature, and other conditions for reliable device operation.

Timing and Switching Characteristics

Details timing specifications for clock domains, critical for system design.

System Information and Electrical Specifications

ARM Cortex-R4F CPU Information

Summarizes features of the ARM Cortex-R4F CPU, including architecture and core implementation.

Clocks

Describes available clock sources, domains, and their configurations for system operation.

Device Memory Map

Outlines the memory map, including flash, RAM, and peripheral register addresses.

Error Signaling Module

Explains the ESM's role in managing error conditions and their severity levels.

Peripheral Information and Electrical Specifications

Enhanced PWM Modules (ePWM)

Details the ePWM modules, their interconnections, synchronization, and trip zones.

12-Bit Multibuffered Analog-to-Digital Converter (MibADC)

Describes the MibADC features, event triggers, and electrical characteristics.

General-Purpose Input/Output

Covers the GPIO module's features, configuration for input/output, and interrupt handling.

Controller Area Network (DCAN)

Highlights DCAN features, protocol support, and electrical specifications.

Device and Documentation Support

Getting Started and Next Steps

Guides users on how to begin development with the device, including tools and kits.

Tools and Software

Lists available hardware kits, evaluation modules, IDEs, compilers, and software tools.

Documentation Support

Provides information on how to get documentation updates and lists related documents.

Trademarks

Lists trademarks associated with the product and Texas Instruments.
