OSCIN
OSCOUT
C1
(see Note A)
C2
Crystal
(a)
OSCIN OSCOUT
(b)
External
(toggling 0 V to 3.3 V)
Clock Signal
Note A: The values of C1 and C2 should be provided by the resonator/crystal vendor.
Kelvin_GND
Note B: Kelvin_GND should not be connected to any other GND.
(see Note B)
51
TMS570LS0714
www.ti.com
SPNS226E –JUNE 2013–REVISED NOVEMBER 2016
Submit Documentation Feedback
Product Folder Links: TMS570LS0714
System Information and Electrical SpecificationsCopyright © 2013–2016, Texas Instruments Incorporated
6.6 Clocks
6.6.1 Clock Sources
Table 6-8 lists the available clock sources on the device. Each clock source can be enabled or disabled
using the CSDISx registers in the system module. The clock source number in the table corresponds to
the control bit in the CSDISx register for that clock source.
Table 6-8 also shows the default state of each clock source.
Table 6-8. Available Clock Sources
CLOCK
SOURCE NO.
NAME DESCRIPTION DEFAULT STATE
0 OSCIN Main oscillator Enabled
1 PLL1 Output from PLL1 Disabled
2 Reserved Reserved Disabled
3 EXTCLKIN1 External clock input 1 Disabled
4 LFLPO Low-frequency output of internal reference oscillator Enabled
5 HFLPO
High-frequency output of internal reference
oscillator
Enabled
6 Reserved Reserved Disabled
7 EXTCLKIN2 External clock input 2 Disabled
6.6.1.1 Main Oscillator
The oscillator is enabled by connecting the appropriate fundamental resonator/crystal and load capacitors
across the external OSCIN and OSCOUT pins as shown in Figure 6-4. The oscillator is a single-stage
inverter held in bias by an integrated bias resistor. This resistor is disabled during leakage test
measurement and low power modes.
NOTE
TI strongly encourages each customer to submit samples of the device to the
resonator/crystal vendors for validation. The vendors are equipped to determine which load
capacitors will best tune their resonator/crystal to the microcontroller device for optimum
start-up and operation over temperature and voltage extremes.
An external oscillator source can be used by connecting a 3.3-V clock signal to the OSCIN pin and leaving
the OSCOUT pin unconnected (open) as shown in Figure 6-4.

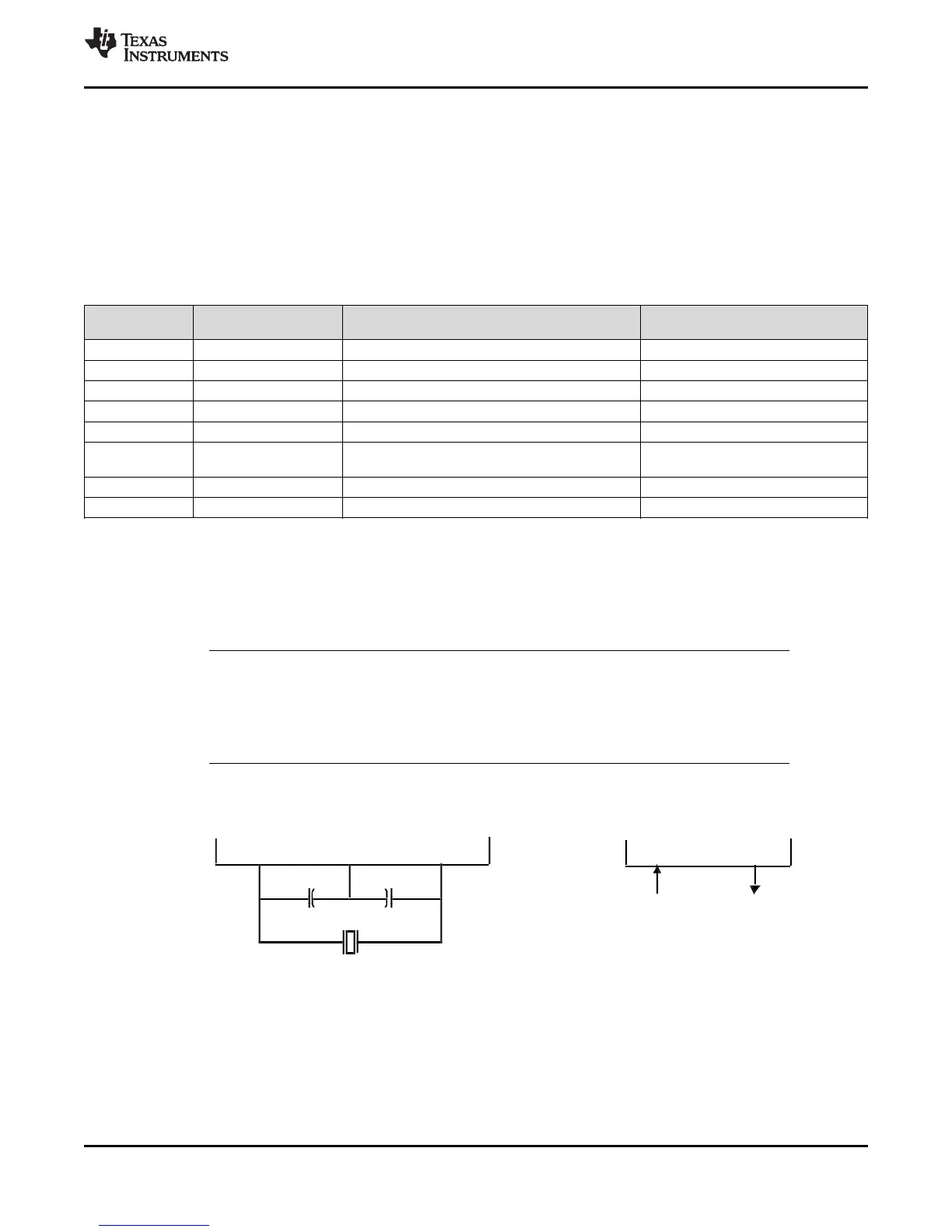

Figure 6-4. Recommended Crystal/Clock Connection
