6.4.1 Connection to a generator (optional)
 Set the generator to single-phase or three-phase alternating current.
 Plug the input power plug into the socket.
 Set the motor rating as shown in the following table.
6.5 Connecting the cutting torch
 Switch off the power supply.
Table 9 Connection to a generator
Generator motor rating Output current (I
2
)Arc voltage
6
kW 25 A U
2
= 200 V C
10 kW 45 A
10 kW 45 A
NOTICE
Risk of material damage if used without TCS Latch with Key
Assembly
The TCS Latch with Key Assembly is important for the proper working of
the machine. If used without, the connector pins may be damaged.
• Do not use the device without the TCS Latch with Key assembly
installed and properly secured.

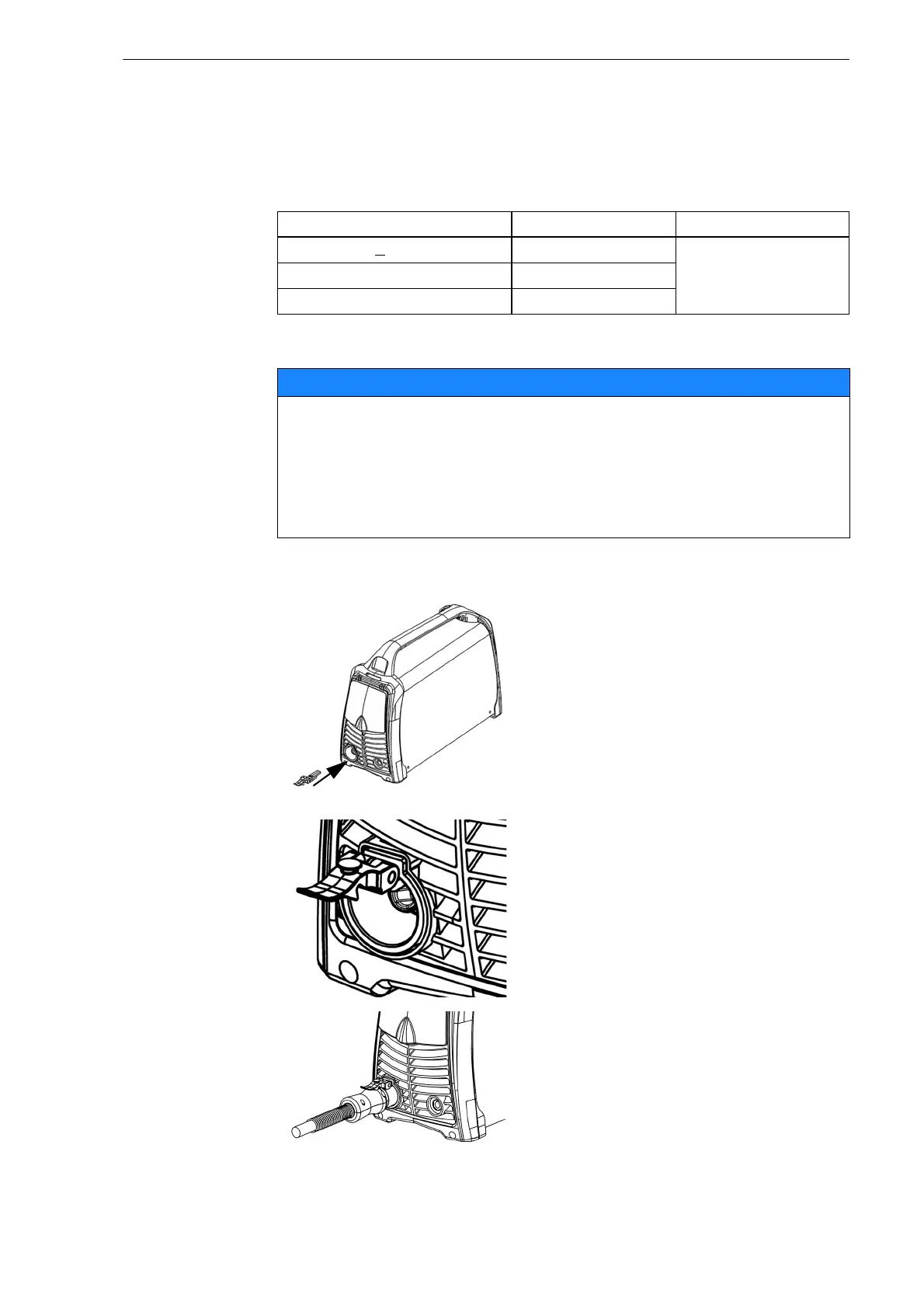

1 Insert the TCS Latch with Key
Assembly into the TCS socket.
 The TCS Latch with Key Assembly
must sit firmly in the TCS socket.
2 Push the cutting torch into the TCS
and ensure the Latch with Key
Assembly locks in place.
