THERMACUT EX-TRAFIRE 45HD - Machine Cutting Torch

EX-TRAFIRE
®
45HD 17 FHT-EX
®
45TTM machine cutting torch unit
EN - 51
17.3 FHT-EX
®
45TTM consumables for marking
machine cutting torch
 If a torch height controller is used, a retaining cap with IHS (Initial Height
Sensing) ohmic clip or a retaining cap with IHS tab must be used.

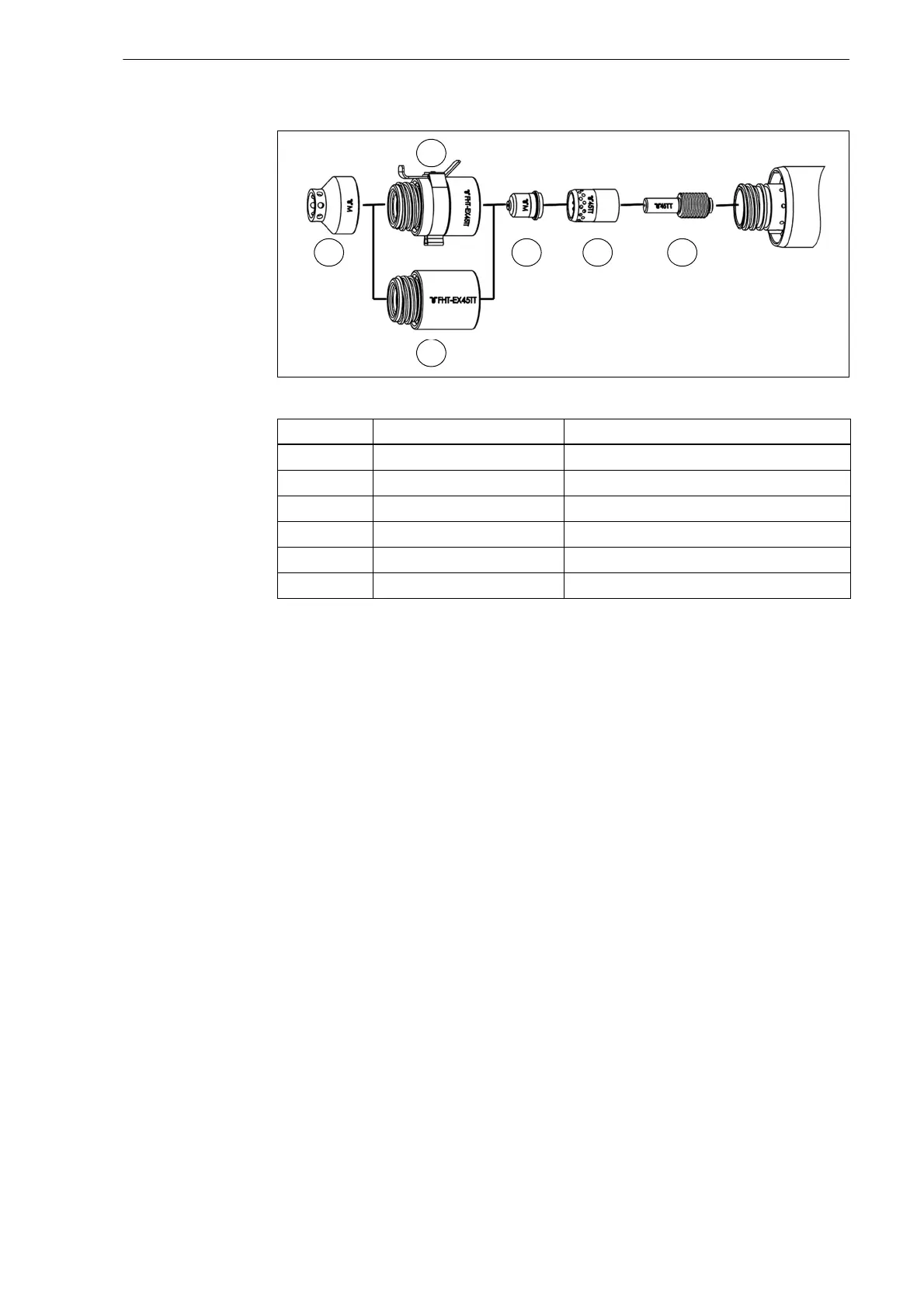

Table 22 FHT-EX
®
45TTM consumables for marking machine cutting torch
Item Part number Description
A EX-2-401-201 Electrode
B EX-2-404-201 Swirl ring
C EX-2-445-001 Nozzle, Marking
D EX-2-415-202 Retaining cap with IHS tab
E EX-2-415-201 Retaining cap
F EX-2-445-002 Shield, Marking
A
E
D
F
C
B
