THERMACUT EX-TRAFIRE 45HD - Enabling the External AC Coil with an External Power Supply; Enabling the Industrially Insulated Module with an External Power Supply

EN - 22
6 Setting up the power supply EX-TRAFIRE
®
45HD
6.6.3 Enabling the external AC coil with an external power supply
6.6.4 Enabling the industrially insulated module with an
external power supply
Industrial insulated user module with 24 V DC power supply.

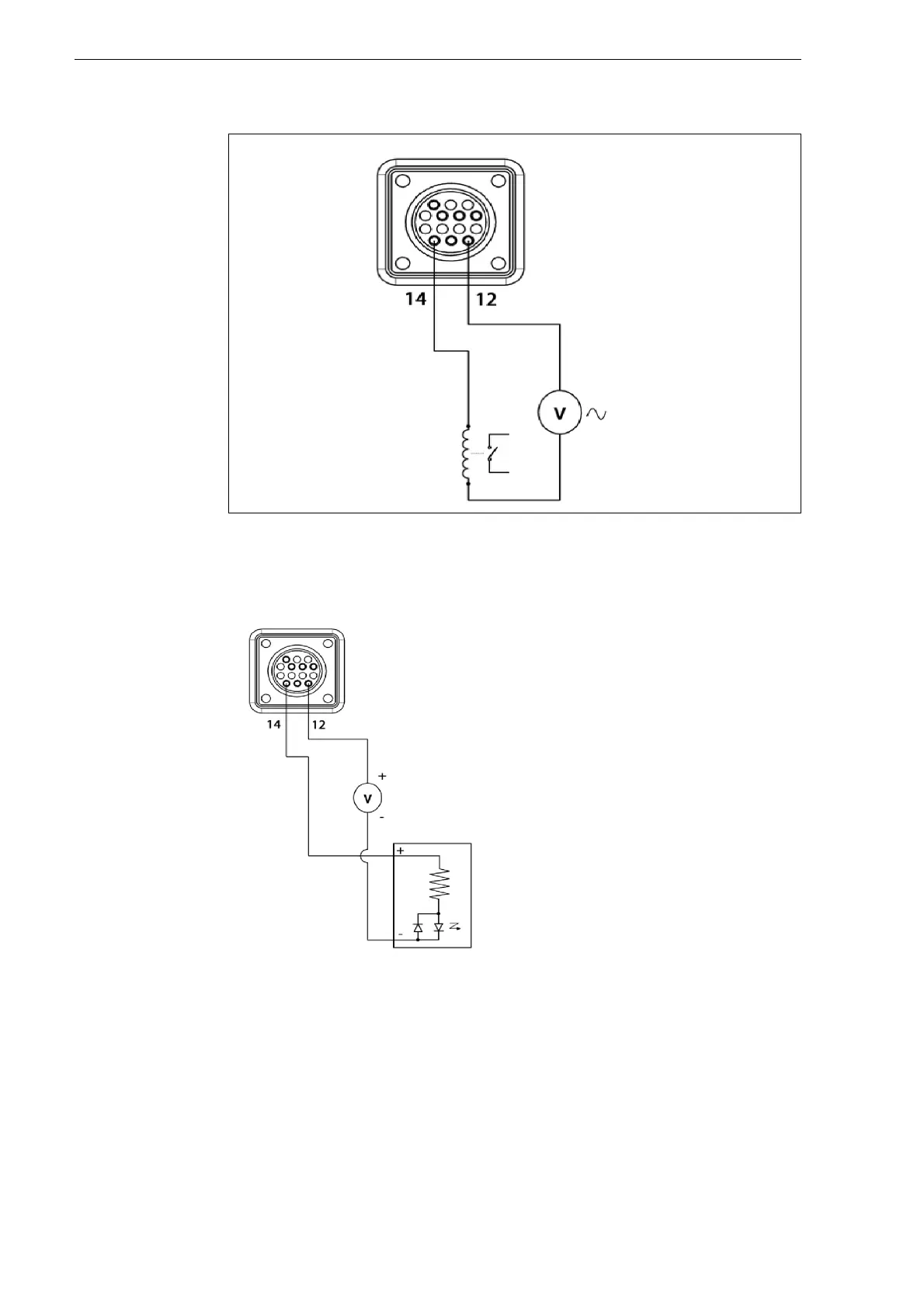

Fig. 7 Enable the external AC coil with an external power supply.
24 V AC
230 V AC
1 Switch off the device.
2 Remove the interface cover.
3 Connect the interface cable with the
cutting power supply.
Insulated
module
