THERMACUT EX-TRAFIRE 45HD - Tables for Marking

EN - 58

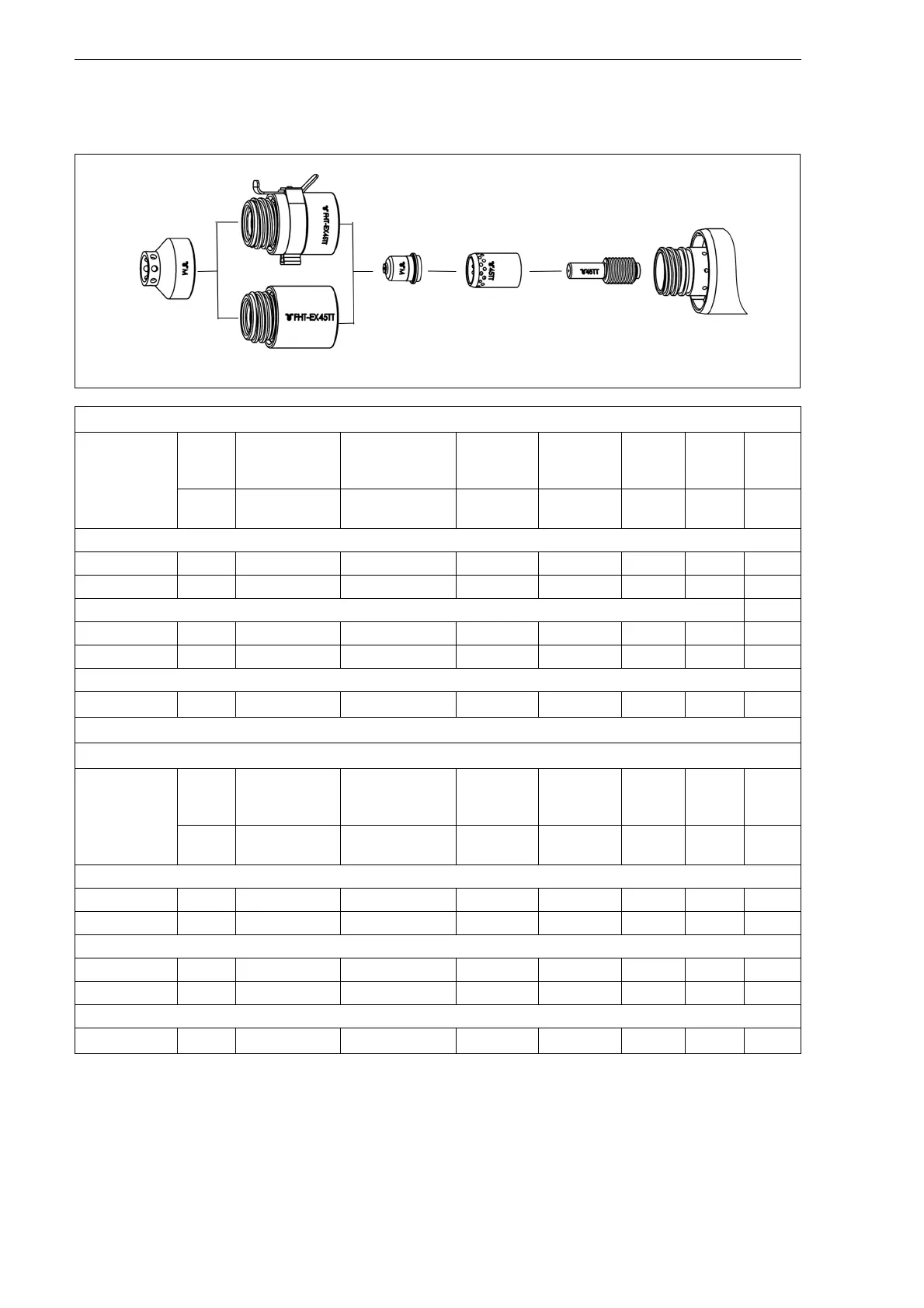

19 Cutting tables for mechanical cutting EX-TRAFIRE
®
45HD
19.3 Tables for marking
19.3.1Marking, shielded, with compressed air or Argon
EX-2-401-201EX-2-404-201EX-2-445-001
EX-2-445-002
EX-2-415-201
EX-2-415-202
With compressed air
Marking Power
supply
Torch (shield)
to workpiece
distance
Initial marking
height
Delay Marking
speed
Arc
voltage
Kerf
width
Kerf
depth
[Amps] [mm] [mm] [Seconds] [mm/
min.]
[Volts [mm] [mm]
Mild steel
Low 10 6.4 6.4 0 2540 134 2.79 <0.02
High 10 4.6 4.6 0 2540 111 2.79 0.09
Stainless steel
Low 10 5.1 5.1 0 5080 123 2.03 <0.02
High 10 6.4 6.4 0 3175 133 2.54 0.08
Aluminum
11 2.5 5.1 0 5080 98 0.89 <0.02
With Argon
Marking Power
supply
Torch (shield)
to workpiece
distance
Initial marking
height
Delay Marking
speed
Arc
voltage
Kerf
width
Kerf
depth
[Amps] [mm] [mm] [Seconds] [mm/
min.]
[Volts [mm] [mm]
Mild steel
Low 10 2 2 0 3175 44 1.22 <0.02
High 15 1.5 1.5 0 3175 42 1.22 <0.02
Stainless steel
Low 12 2.5 2.5 0 3175 46 1.40 <0.02
High 15 2.5 2.5 0 2540 46 2.16 0.02
Aluminum
16 0.5 0.5 0 4445 42 0.63 <0.02
