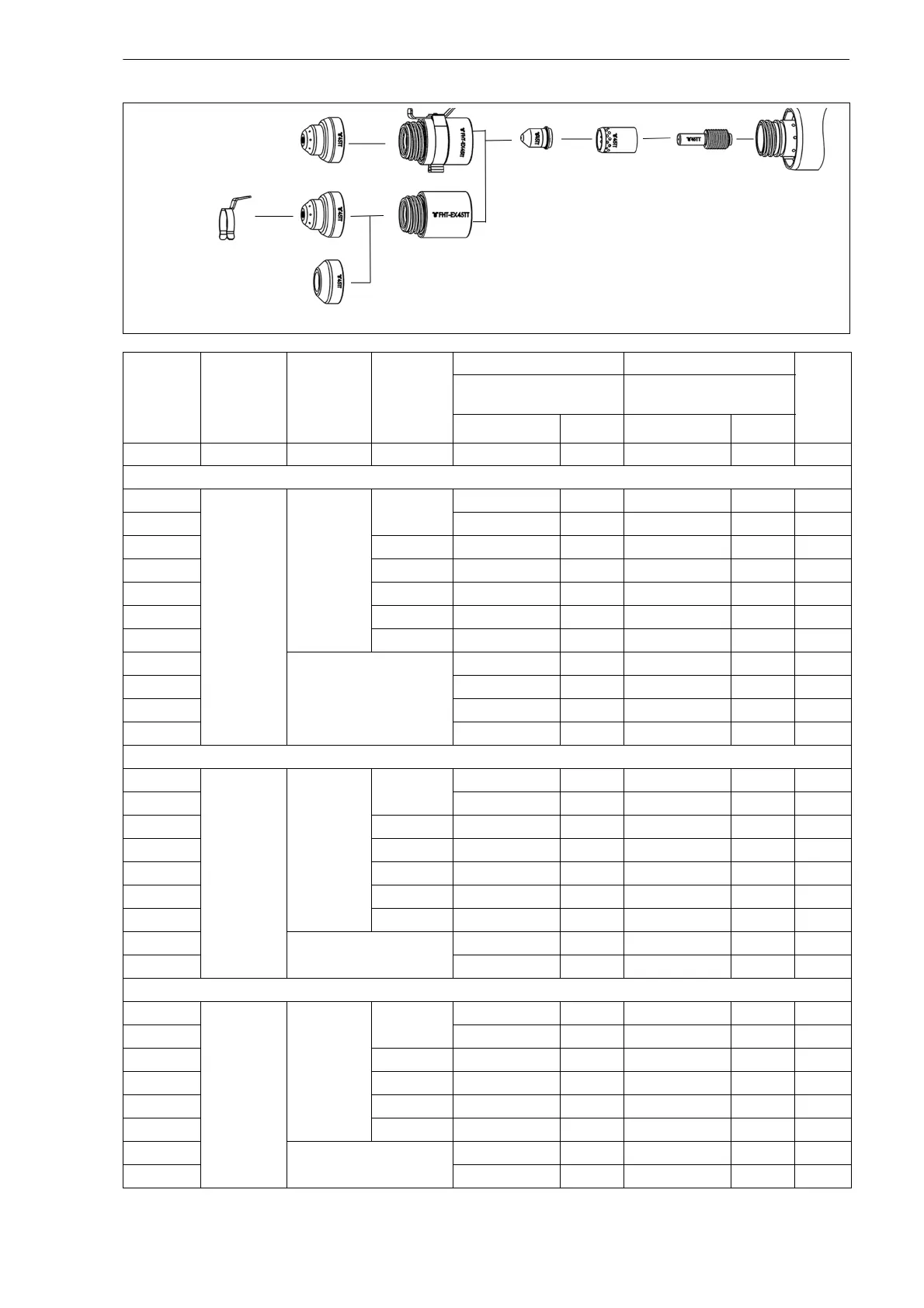

19.2 45 A cutting, shielded, with compressed air
 45 A cutting charts and consumables can also be used for SmoothLine
cutting up to a material thickness of 4 mm.
EX-2-401-201EX-2-404-201EX-2-409-201
EX-2-415-202
EX-2-415-201
EX-2-423-211
EX-2-421-201
EX-2-428-011
Material
thickness
Torch
(shield) to
workpiece
distance
Pierce
height
(shield) to
workpiece
distance
Pierce
delay time
Recommended speed Maximum speed Kerf
width
Settings for
highest quality
Standard quality
settings
Cutting speed
Voltage Cutting speed Voltage
[mm] [mm] [mm] [Seconds] [mm/min] [Volts] [mm/min] [Volts] [mm]
Mild steel
1
1.5
3.8
0 9652 115 10160 112 0.9
1.5 8890 116 10160 115 0.9
2 0.1 7100 117 9144 115 1.1
3 0.4 3550 117 4445 115 1.1
5 0.5 2150 118 2794 115 1.3
6 0.6 1500 120 1905 116 1.5
10 0.9 810 122 1016 116 1.7
12
Edge start
510 132 635 125 1,7
16 280 138 356 127 1.8
20 200 140 254 131 1.9
25 100 146 127 142 2
Stainless steel
1
1.5
3.8
0 7600 112 10160 109 1.3
1.5 8100 112 10160 125 1.4
2 0.1 7100 118 9144 115 1.4
3 0.4 3050 121 3810 118 1.5
5 0.5 1780 122 2159 118 1.6
6 0.6 1100 124 1397 120 1.6
10 0.8 760 126 813 121 1.7
12
Edge start
350 132 457 128 1.7
20 175 136 229 131 2.2
Aluminum
1.5
1.5
3.8
0 9150 116 10160 114 1.4
2 8650 117 10160 116 1.5
3 0.1 5600 122 7112 120 1.5
5 0.2 2550 123 3302 120 1.6
6 0.3 2050 123 2540 120 1.6
10 0.5 840 130 1067 125 1.7
12
Edge start
510 134 635 130 1.9
20 200 143 254 138 2
